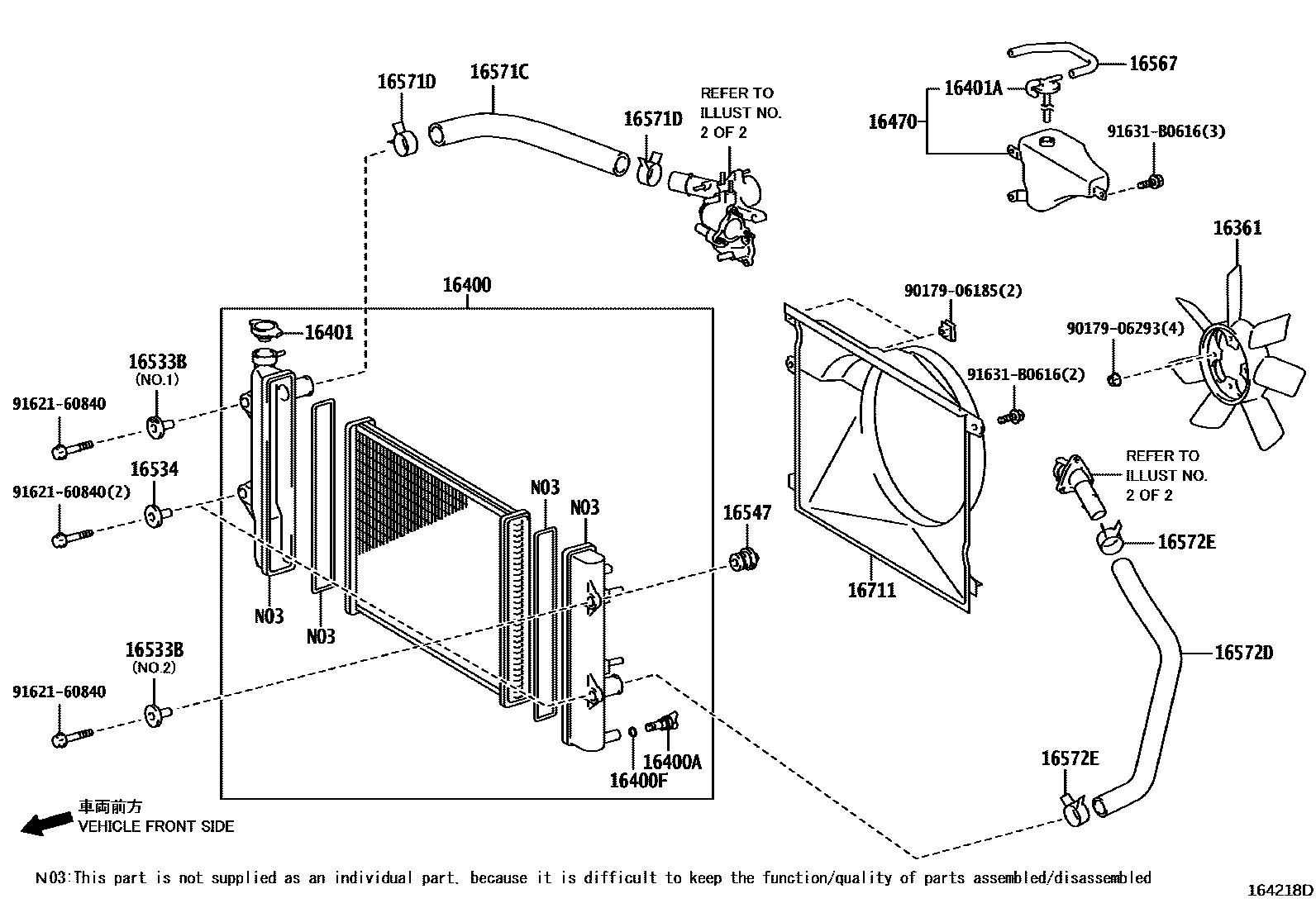

Toyota FJ CRUISER 663 — RADIATOR & WATER OUTLET
16361FAN
16400ACOCK SUB-ASSY, RADIATOR DRAIN
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401ACAP SUB-ASSY, RADIATOR RESERVE TANK
16533BSUPPORT, RADIATOR, NO.1
16534SUPPORT, RADIATOR, NO.2
16547BUSH, RADIATOR SUPPORT, NO.1
16567HOSE(FOR RADIATOR RESERVE TANK)
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
9017906185
9017906293
9162160840
91631B0616
20 parts on this diagram · 4 diagrams in section
RADIATOR & WATER OUTLET for Toyota FJ CRUISER 663
This section contains 49 genuine Toyota parts for the RADIATOR & WATER OUTLET system of the Toyota FJ CRUISER 663. Key components include: CYLINDER HEAD, WATER INLET SUB-ASSY, W/THERMOSTAT, HOSE, WATER BY-PASS, CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE), HOSE, WATER BY-PASS, NO.2.
