Toyota FJ CRUISER 663 — OIL FILTER

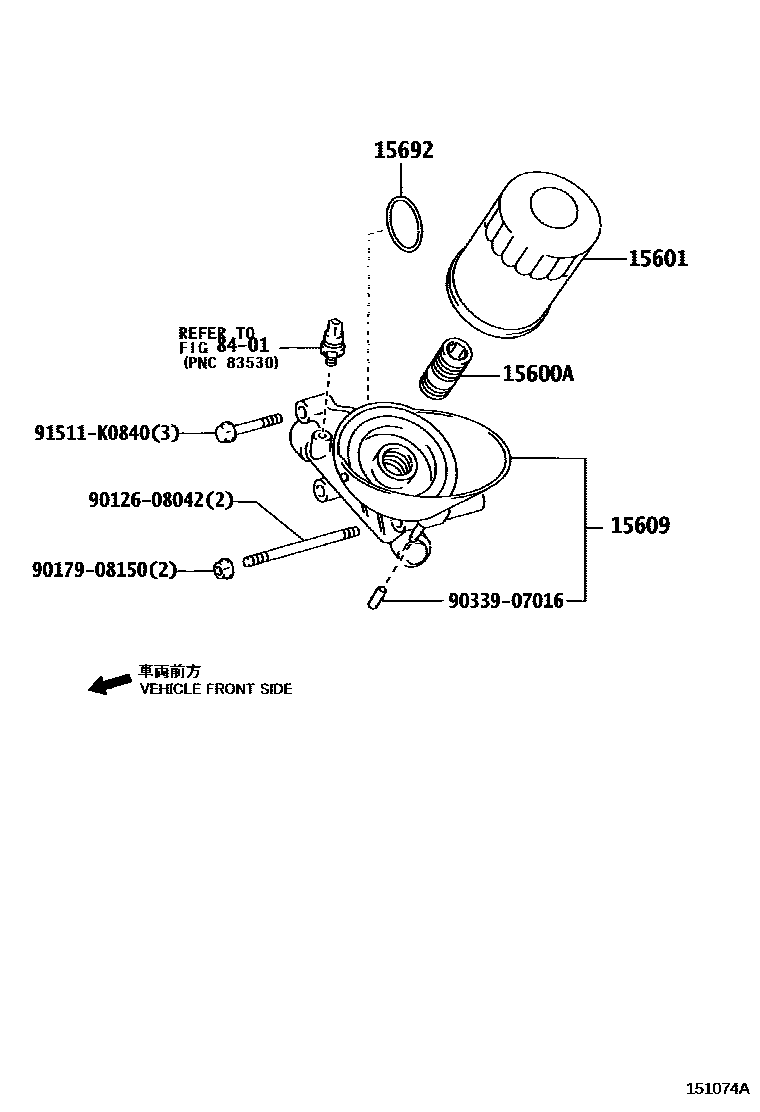

Parts diagram

15600AUNION(FOR OIL FILTER)

15601FILTER SUB-ASSY, OIL

15609BRACKET SUB-ASSY, OIL FILTER

15692GASKET, OIL FILTER BRACKET

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9012608042

9017908150

9033907016

91511K0840

9 parts on this diagram · 2 diagrams in section

OIL FILTER for Toyota FJ CRUISER 663

This section contains 18 genuine Toyota parts for the OIL FILTER system of the Toyota FJ CRUISER 663. Key components include: ELEMENT KIT, OIL FILTER, UNION(FOR OIL FILTER), FILTER SUB-ASSY, OIL, BRACKET SUB-ASSY, OIL FILTER, GASKET(FOR OIL FILTER CAP).
