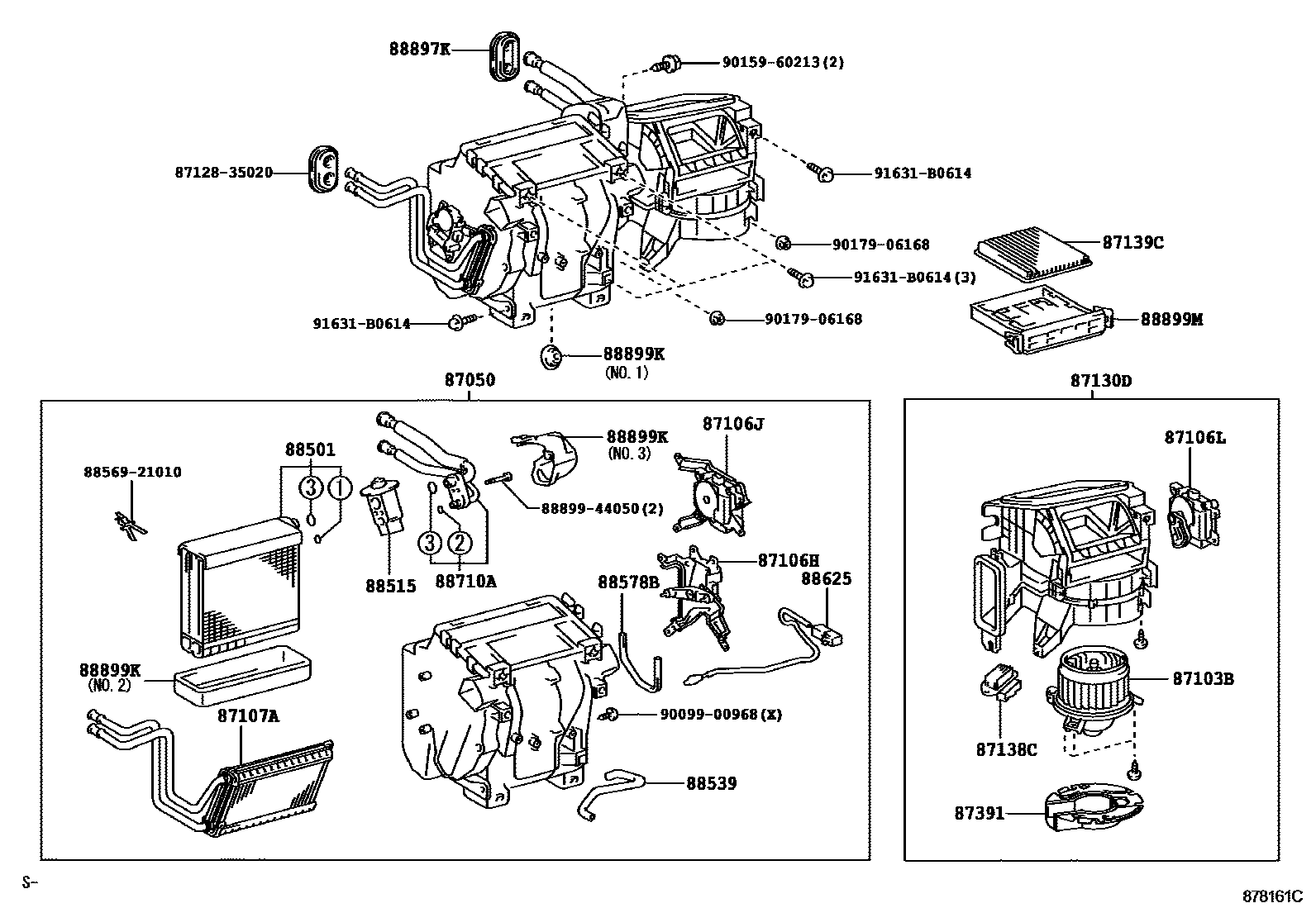

Toyota FJ CRUISER 663 — HEATING & AIR CONDITIONING - COOLER UNIT
87050RADIATOR ASSY, AIR CONDITIONER
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106JSERVO SUB-ASSY, DAMPER(FOR MODE)
87106LSERVO SUB-ASSY, DAMPER
87107AUNIT SUB-ASSY, HEATER RADIATOR
87130DBLOWER ASSY
87138CRESISTOR, BLOWER
87139CFILTER, CLEAN AIR
87391COVER, BLOWER MOTOR
88515VALVE, COOLER EXPANSION
88539HOSE, COOLER UNIT DRAIN, NO.1
88578BPACKING, COOLING UNIT, NO.1
88625THERMISTOR, COOLER, NO.1
88710ATUBE ASSY, AIR CONDITIONER
88897KGROMMET, (FOR COOLER PIPE)
88899KPLATE, COVER
88899MPLATE, COVER(FOR AIR FILTER)
8712835020GROMMET, HEATER
8856921010CLAMP (FOR COOLER RELAY)
8889944050COVER, EVAPORATOR
9009900968
9015960213
9017906168
91631B0614
26 parts on this diagram · 2 diagrams in section
HEATING & AIR CONDITIONING - COOLER UNIT for Toyota FJ CRUISER 663
This section contains 29 genuine Toyota parts for the HEATING & AIR CONDITIONING - COOLER UNIT system of the Toyota FJ CRUISER 663. Key components include: RADIATOR ASSY, AIR CONDITIONER, MOTOR SUB-ASSY, BLOWER W/FAN, SERVO SUB-ASSY, DAMPER(FOR AIRMIX), SERVO SUB-ASSY, DAMPER(FOR MODE), SERVO SUB-ASSY, DAMPER.
