Toyota ETIOS/LIVA/CROSS 135 — REAR MOULDING

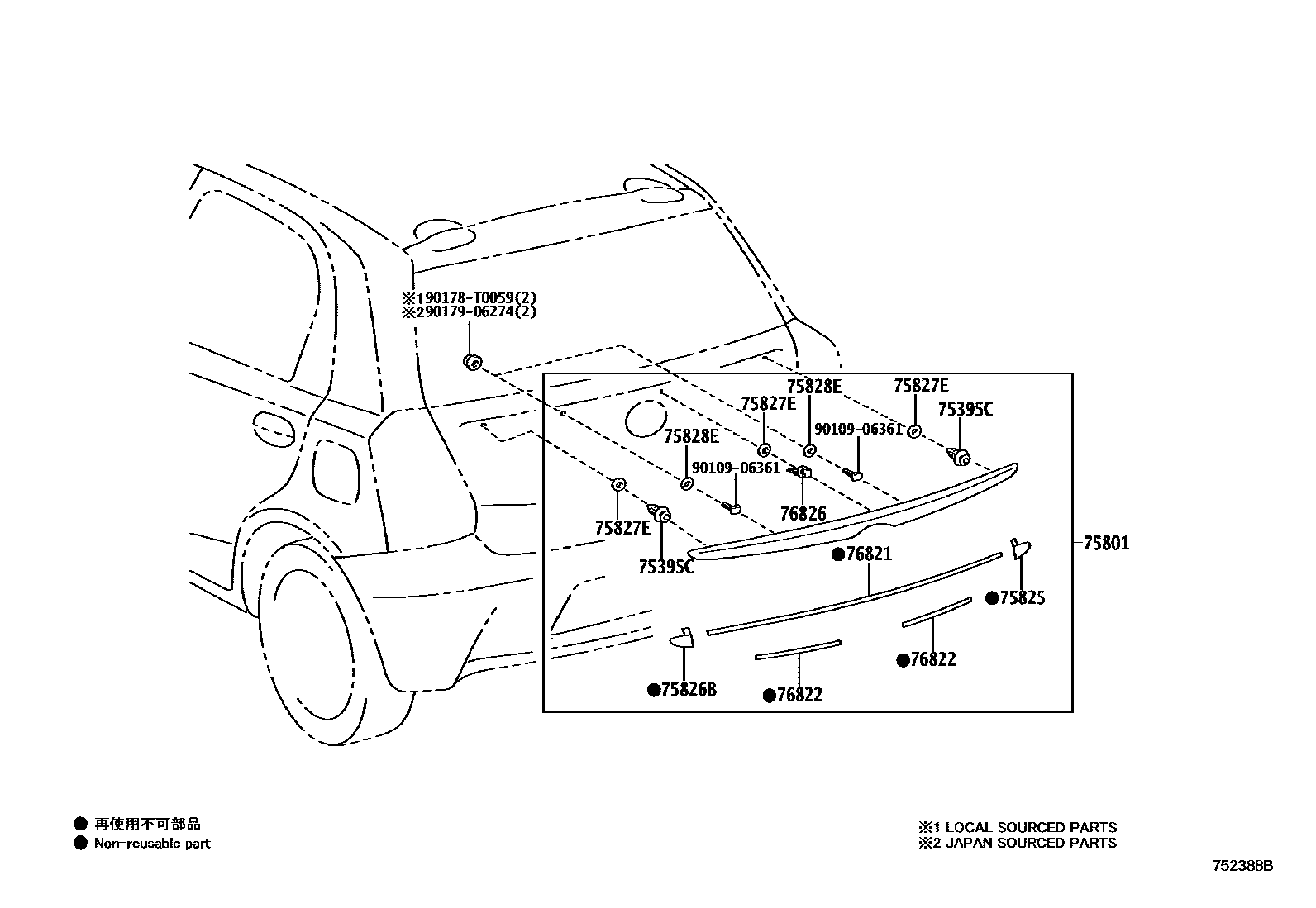

Parts diagram

75395CCLIP, OUTSIDE MOULDING, NO.1

75801MOULDING SUB-ASSY, BACK DOOR, OUTSIDE

75825PAD, LUGGAGE COMPARTMENT DOOR MOULDING

75826BPAD, LUGGAGE COMPARTMENT DOOR MOULDING, NO.2

75827EPROTECTOR, LUGGAGE DOOR MOULDING

75828EPROTECTOR, LUGGAGE DOOR MOULDING, NO.2

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

76822PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER

76826RETAINER, BACK DOOR GARNISH, NO.1

9010906361

90178T0059

9017906274

12 parts on this diagram · 3 diagrams in section

REAR MOULDING for Toyota ETIOS/LIVA/CROSS 135

This section contains 15 genuine Toyota parts for the REAR MOULDING system of the Toyota ETIOS/LIVA/CROSS 135. Key components include: EMBLEM & NAME PLATE (EXTERIOR & INTERIOR), CLIP, OUTSIDE MOULDING, NO.1, MOULDING SUB-ASSY, BACK DOOR, OUTSIDE, MOULDING SUB-ASSY, LUGGAGE COMPARTMENT DOOR, PAD, LUGGAGE COMPARTMENT DOOR MOULDING.
