Toyota E'Z 158 — VENTILATION HOSE

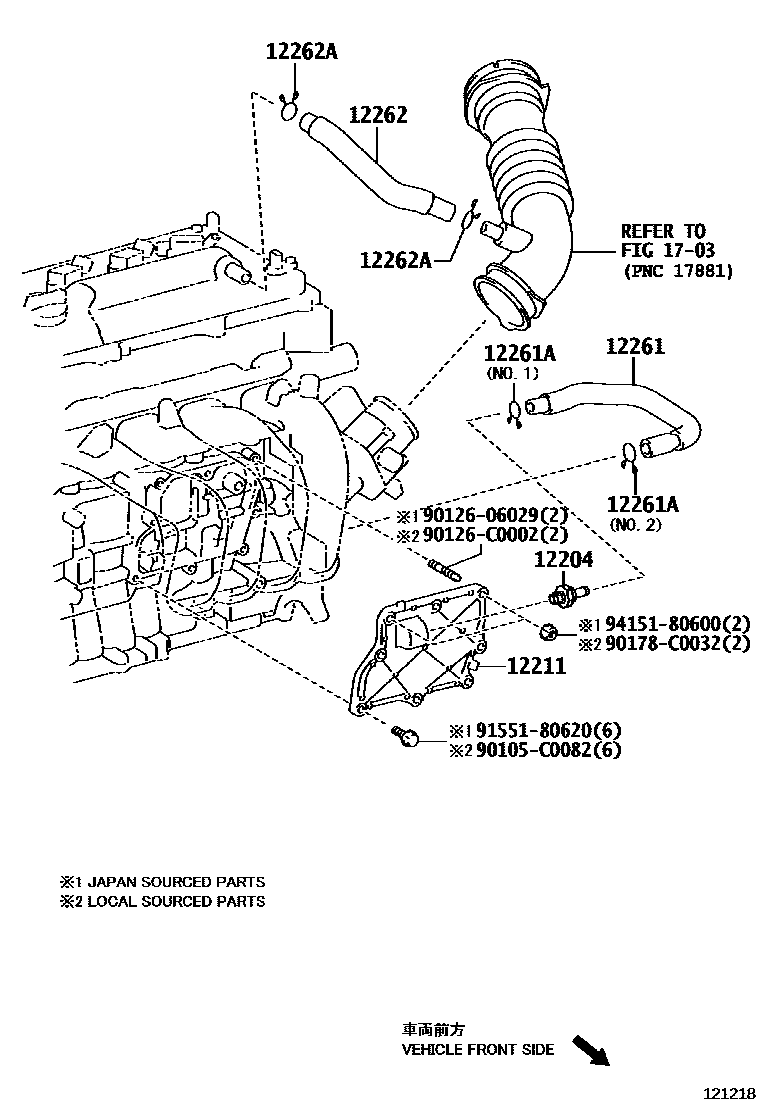

Parts diagram

12204VALVE SUB-ASSY, VENTILATION

12211CASE, VENTILATION, NO.1

12261HOSE, VENTILATION

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

12262HOSE, VENTILATION, NO.2

12262ACLIP(FOR VENTILATION HOSE NO.2)

1703AIR CLEANER

→ Go to FIG 17-03

90105C0082

9012606029

90126C0002

90178C0032

9155180620

9415180600

13 parts on this diagram · 1 diagram in section

VENTILATION HOSE for Toyota E'Z 158

This section contains 13 genuine Toyota parts for the VENTILATION HOSE system of the Toyota E'Z 158. Key components include: VALVE SUB-ASSY, VENTILATION, CASE, VENTILATION, NO.1, HOSE, VENTILATION, CLIP OR CLAMP(FOR VENTILATION HOSE), HOSE, VENTILATION, NO.2.
