Toyota 3314F0 — ROOF PANEL & BACK WINDOW GLASS

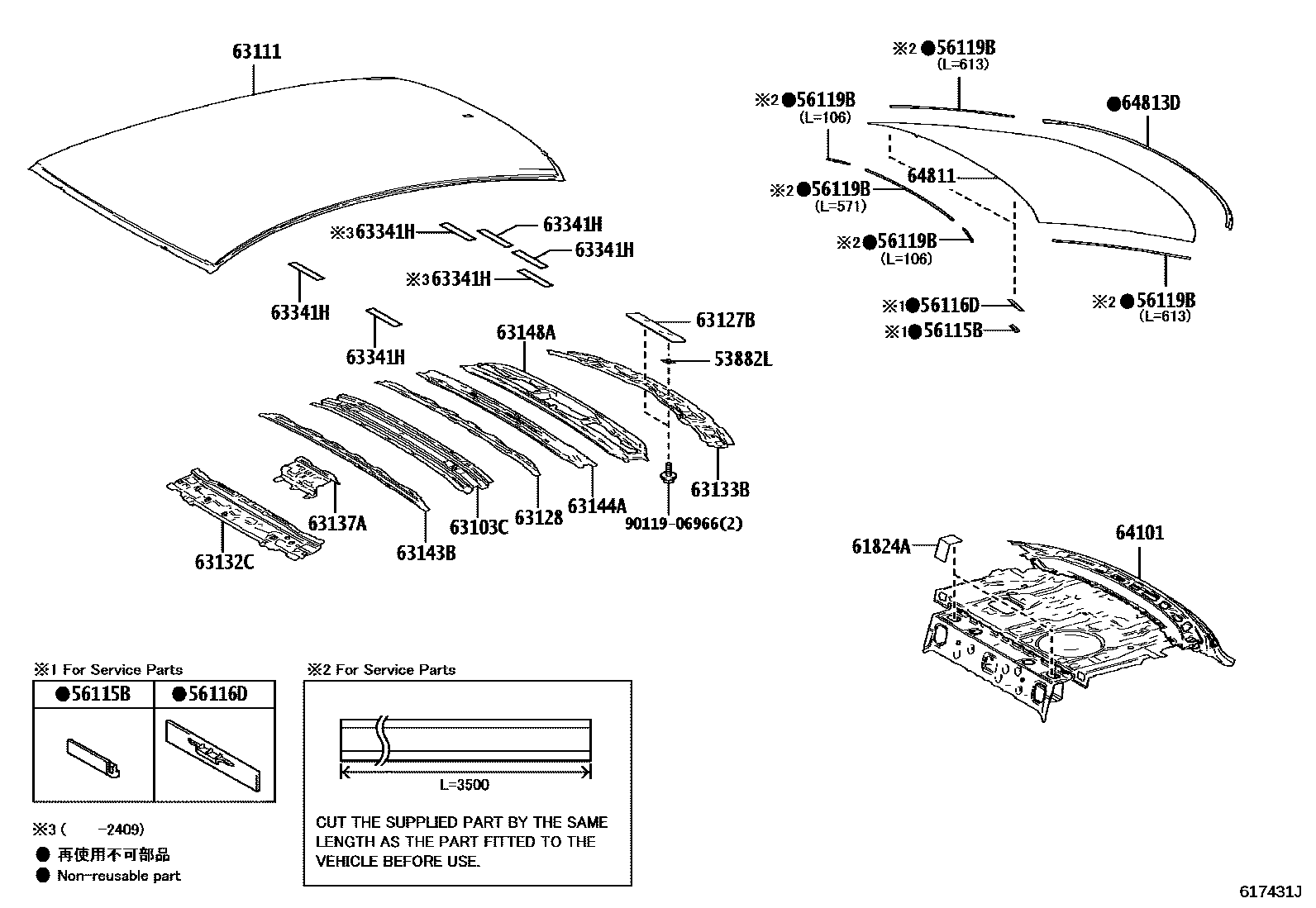

Parts diagram

53882LSEAL, ROOF PANEL

56115BSTOPPER, BACK WINDOW GLASS, NO.1

56116DSTOPPER, BACK WINDOW GLASS, NO.2

56119BDAM, BACK WINDOW GLASS ADHESIVE

61824APLATE, NOISE CONTROL, NO.1

63103CREINFORCEMENT SUB-ASSY, ROOF PANEL

63111PANEL, ROOF

63127BDAMPER, BACK WINDOW UPPER FREME

63128REINFORCEMENT, ROOF PANEL, NO.6

63132CPANEL, WINDSHIELD HEADER, INNER

63133BFRAME, BACK WINDOW

63137ABRACKET, DOME LAMP, NO.1

63143BREINFORCEMENT, ROOF PANEL, NO.3

63144AREINFORCEMENT, ROOF PANEL, NO.4

63148AREINFORCEMENT, ROOF PANEL, NO.7

63341HPAD, ROOF SILENCER

64101PANEL SUB-ASSY, UPPER BACK

64811GLASS, BACK WINDOW

64813DDAM, BACK WINDOW GLASS ADHESIVE

9011906966

20 parts on this diagram · 3 diagrams in section

ROOF PANEL & BACK WINDOW GLASS for Toyota 3314F0

This section contains 33 genuine Toyota parts for the ROOF PANEL & BACK WINDOW GLASS system of the Toyota 3314F0. Key components include: SEAL, ROOF PANEL, STOPPER, BACK WINDOW GLASS, NO.1, STOPPER, BACK WINDOW GLASS, NO.2, DAM, BACK WINDOW GLASS ADHESIVE, PLATE, NOISE CONTROL, NO.1.
