Toyota 3314F0 — EXHAUST PIPE

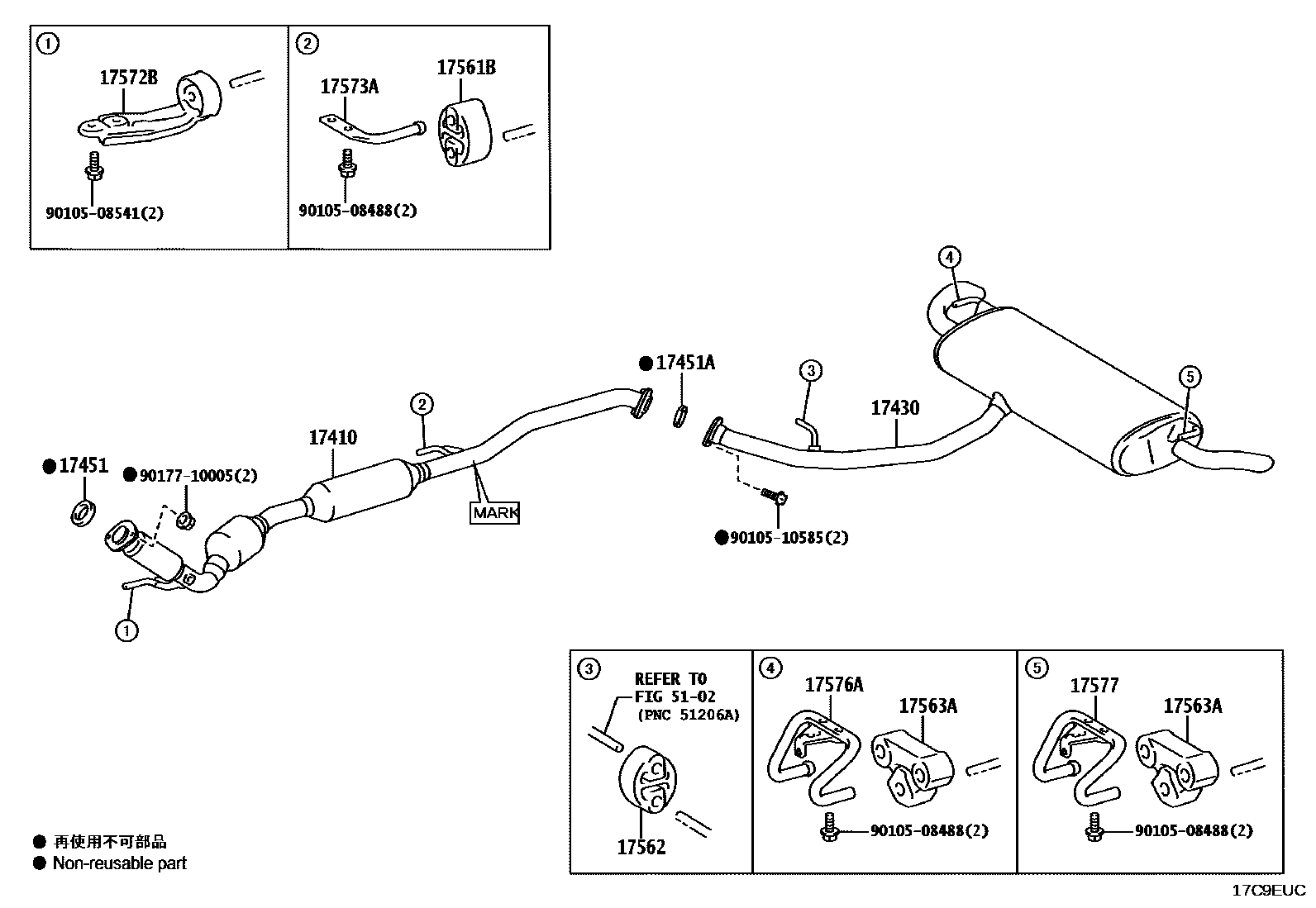

Parts diagram

17410PIPE ASSY, EXHAUST, FRONT

17430PIPE ASSY, EXHAUST, TAIL

17451GASKET, EXHAUST PIPE

17451AGASKET, EXHAUST PIPE, NO.2

17561BSUPPORT, EXHAUST PIPE, NO.1

17562SUPPORT, EXHAUST PIPE, NO.2

17563ASUPPORT, EXHAUST PIPE, NO.3

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3

17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6

17577BRACKET, EXHAUST PIPE SUPPORT, NO.7

9010508488

9010508541

9010510585

9017710005

15 parts on this diagram · 1 diagram in section

EXHAUST PIPE for Toyota 3314F0

This section contains 15 genuine Toyota parts for the EXHAUST PIPE system of the Toyota 3314F0. Key components include: PIPE ASSY, EXHAUST, FRONT, PIPE ASSY, EXHAUST, TAIL, GASKET, EXHAUST PIPE, GASKET, EXHAUST PIPE, NO.2, SUPPORT, EXHAUST PIPE, NO.1.
