Toyota 33A110 — RADIATOR GRILLE

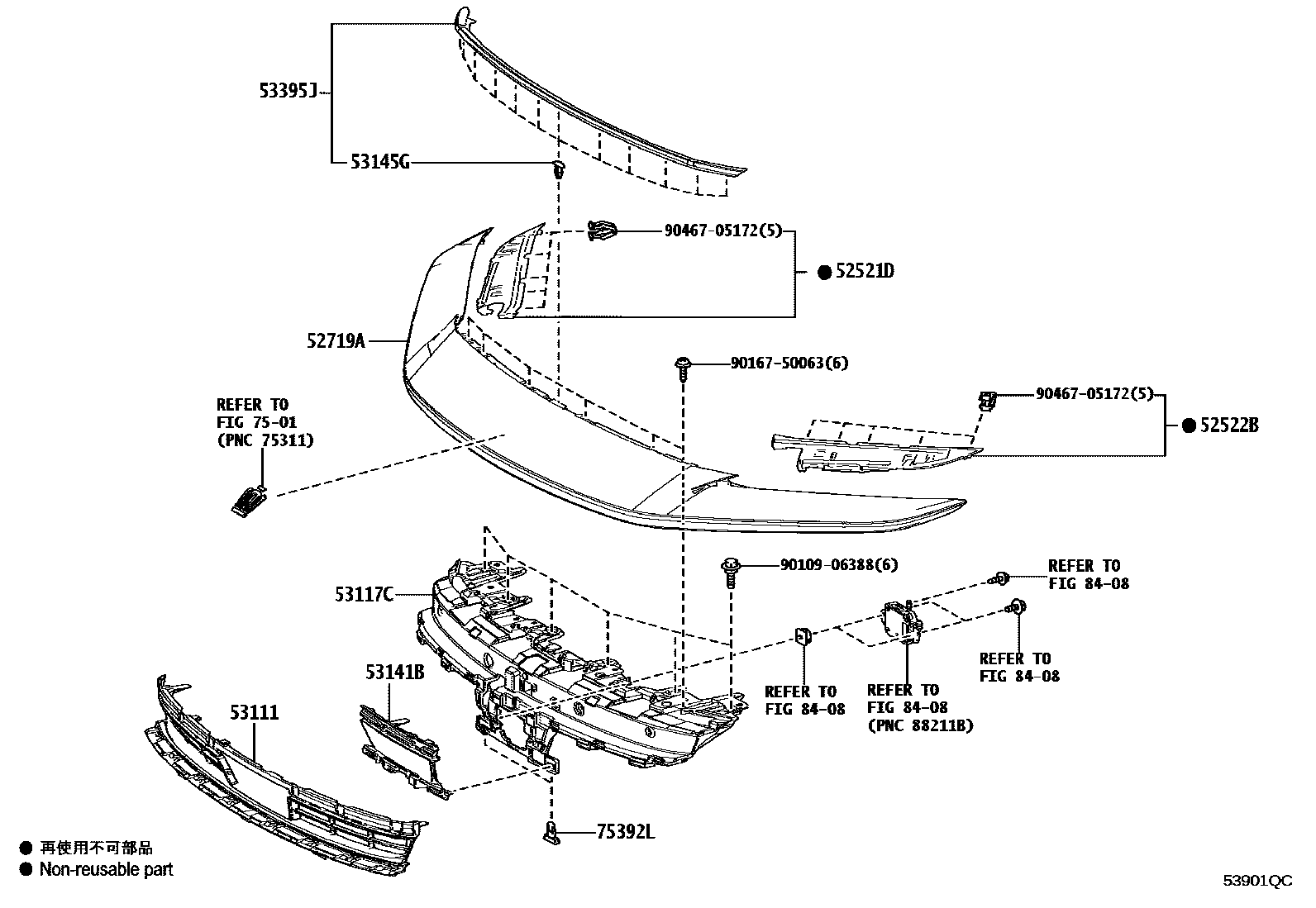

Parts diagram
52521DRETAINER, FRONT BUMPER FILLER, NO.1
52522BRETAINER, FRONT BUMPER FILLER, NO.2
52719ACOVER, FRONT BUMPER MOULDING
53111GRILLE, RADIATOR
53111-30J70
53117CRETAINER, RADIATOR GRILLE, NO.1
53141BGARNISH, RADIATOR GRILLE, NO.1
53145GCLIP, RADIATOR GRILLE
53395JSEAL, HOOD TO FRONT END PANEL
7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)
→ Go to FIG 75-01
75392LRETAINER, OUTSIDE MOULDING
8408CRUISE CONTROL (AUTO DRIVE)
→ Go to FIG 84-08
9010906388
90109-06388
9016750063
90167-50063
9046705172
90467-05172

14 parts on this diagram · 1 diagram in section

RADIATOR GRILLE for Toyota 33A110

This section contains 14 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota 33A110. Key components include: RETAINER, FRONT BUMPER FILLER, NO.1, RETAINER, FRONT BUMPER FILLER, NO.2, COVER, FRONT BUMPER MOULDING, GRILLE, RADIATOR, RETAINER, RADIATOR GRILLE, NO.1.
