Toyota 33A110 — MIRROR

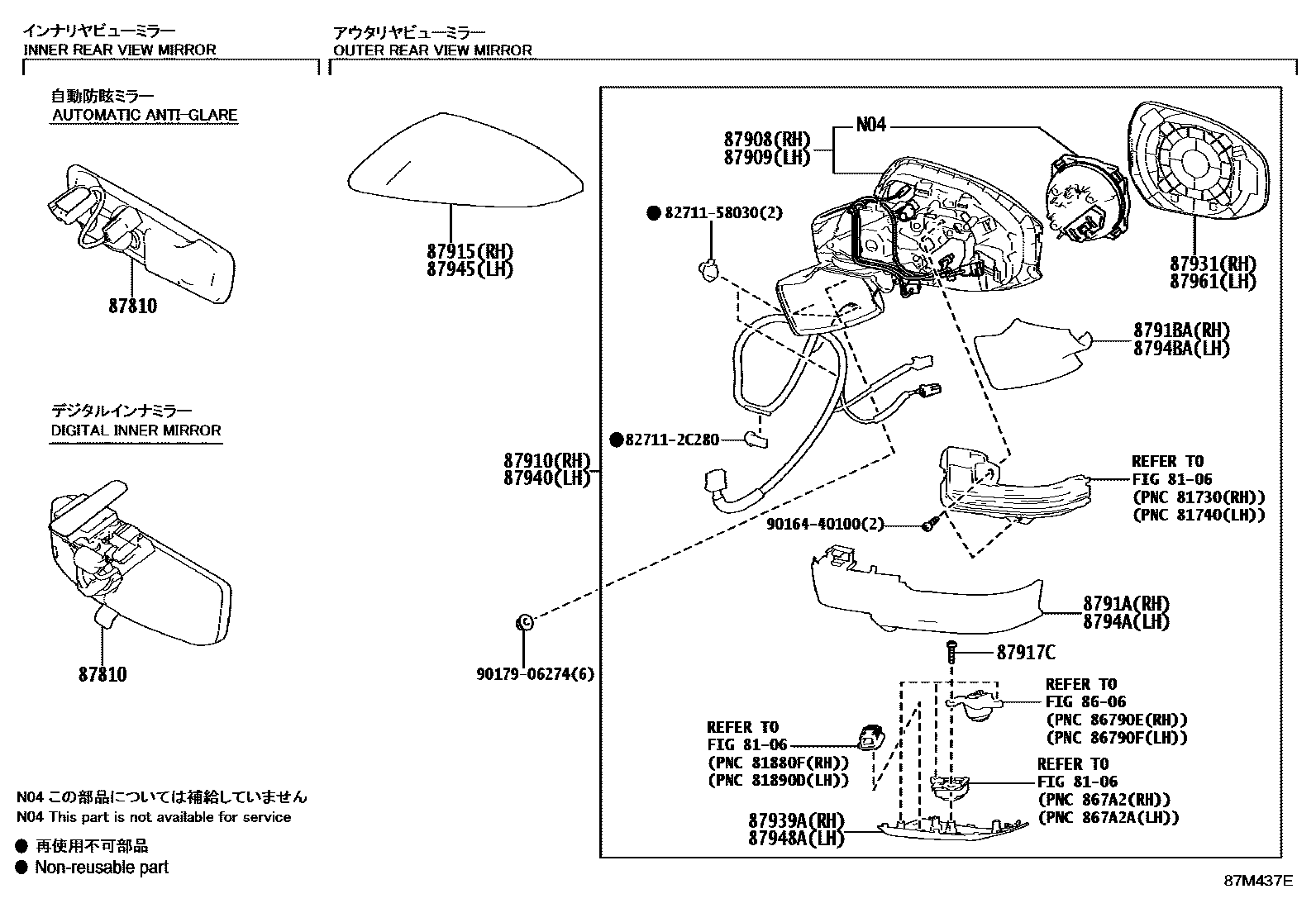

Parts diagram
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
→ Go to FIG 81-06
8606CAMERA & REAR MONITOR DISPLAY
→ Go to FIG 86-06
87810MIRROR ASSY, INNER REAR VIEW
87840-0W360
87840-0W460
87908ACTUATOR ASSY, OUTER MIRROR, RH
87908-30K80
87908-30K90
87909ACTUATOR ASSY, OUTER MIRROR, LH
87909-30L90
87909-30M00
87910MIRROR ASSY, OUTER REAR VIEW, RH
87910-30K80
87910-30K90
87915COVER, OUTER MIRROR, RH
87915-30060
87917CSCREW, OUTER MIRROR
8791ACOVER, OUTER MIRROR, RH NO.2
8791A-30K80
8791A-30K90
8791BACOVER, OUTER MIRROR, RH NO.3
87931OUTER MIRROR, RH
87931-30K80
87931-30K90
87939ACOVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87940-30L90
87940-30M00
87945COVER, OUTER MIRROR, LH
87945-30060
87948ACOVER, OUTER MIRROR HOLE, LH
8794ACOVER, OUTER MIRROR, LH NO.2
8794A-30M00
8794BACOVER, OUTER MIRROR, LH NO.3
87961MIRROR OUTER, LH
87961-30L90
87961-30M00
827112C280WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
82711-2C280
8271158030WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
82711-58030
9016440100
90164-40100
9017906274
90179-06274

22 parts on this diagram · 1 diagram in section

MIRROR for Toyota 33A110

This section contains 22 genuine Toyota parts for the MIRROR system of the Toyota 33A110. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, ACTUATOR ASSY, OUTER MIRROR, RH, ACTUATOR ASSY, OUTER MIRROR, LH.
