Toyota 33B110 — PARKING BRAKE & CABLE

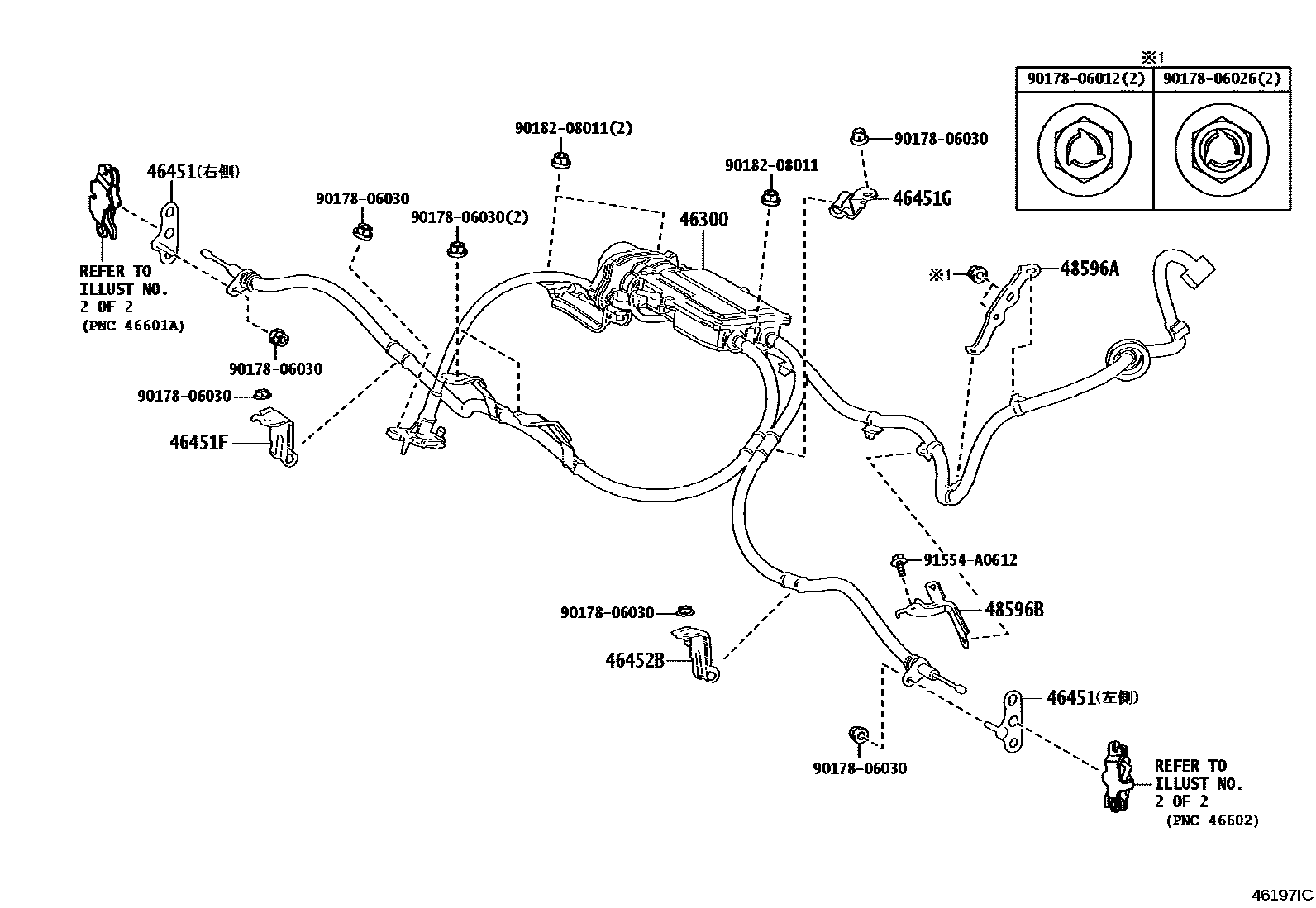

Parts diagram
46300ACTUATOR ASSY, PARKING BRAKE W/BRACKET
46300-62010
46300-11011
46451BRACKET, CABLE SUPPORT
46451-11030
46451-11060
46451-11070
46451-30270
46451-30280
46451FBRACKET, CABLE SUPPORT
46451GBRACKET, CABLE SUPPORT
46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
46452-62010
46451-11040
46451-11050
46452BBRACKET, CABLE SUPPORT, NO.2
48596ACLAMP, ACTUATOR HARNESS, NO.1
48596BCLAMP, ACTUATOR HARNESS, NO.2
9017806012
90178-06012
9017806026
90178-06026
9017806030
90178-06030
9018208011
90182-08011
91554A0612
91554-A0612

13 parts on this diagram · 3 diagrams in section

PARKING BRAKE & CABLE for Toyota 33B110

This section contains 35 genuine Toyota parts for the PARKING BRAKE & CABLE system of the Toyota 33B110. Key components include: ACTUATOR ASSY, PARKING BRAKE W/BRACKET, BRACKET, CABLE SUPPORT, BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2.
