Toyota 33B110 — MIRROR

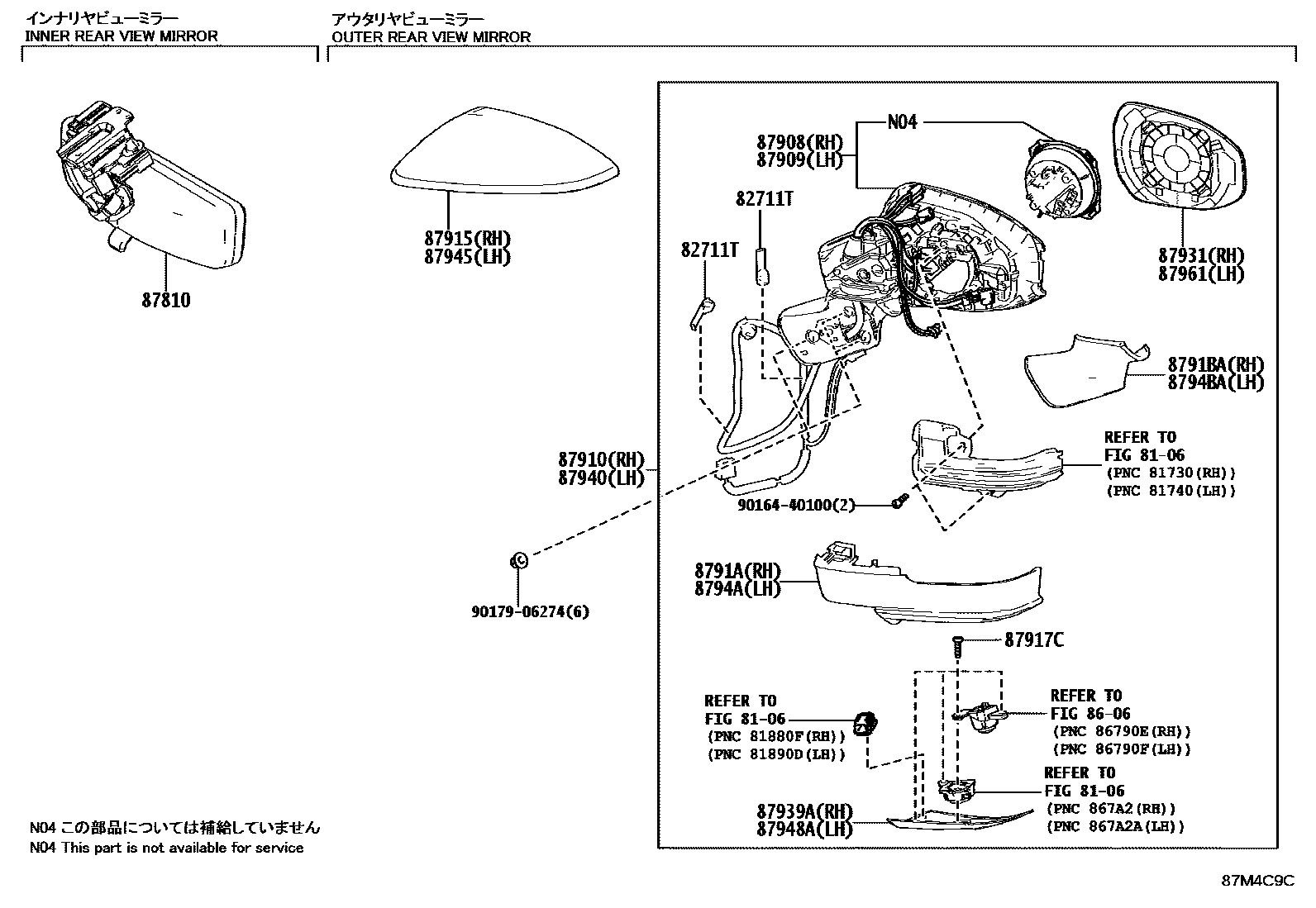

Parts diagram
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
→ Go to FIG 81-06
82711TCLAMP, WIRING HARNESS
8606CAMERA & REAR MONITOR DISPLAY
→ Go to FIG 86-06
87810MIRROR ASSY, INNER REAR VIEW
87810-VW010
87908ACTUATOR ASSY, OUTER MIRROR, RH
87908-30L30
87909ACTUATOR ASSY, OUTER MIRROR, LH
87909-30M40
87910MIRROR ASSY, OUTER REAR VIEW, RH
87910-30L30
87915COVER, OUTER MIRROR, RH
87915-30060
87917CSCREW, OUTER MIRROR
8791ACOVER, OUTER MIRROR, RH NO.2
8791A-30K90
8791BACOVER, OUTER MIRROR, RH NO.3
87931OUTER MIRROR, RH
87931-30K90
87939ACOVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87940-30M40
87945COVER, OUTER MIRROR, LH
87945-30060
87948ACOVER, OUTER MIRROR HOLE, LH
8794ACOVER, OUTER MIRROR, LH NO.2
8794A-30M00
8794BACOVER, OUTER MIRROR, LH NO.3
87961MIRROR OUTER, LH
87961-30M00
9016440100
90164-40100
9017906274
90179-06274

21 parts on this diagram · 1 diagram in section

MIRROR for Toyota 33B110

This section contains 21 genuine Toyota parts for the MIRROR system of the Toyota 33B110. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CLAMP, WIRING HARNESS, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, ACTUATOR ASSY, OUTER MIRROR, RH.
