Toyota 33B110 — FRONT SPRING & SHOCK ABSORBER

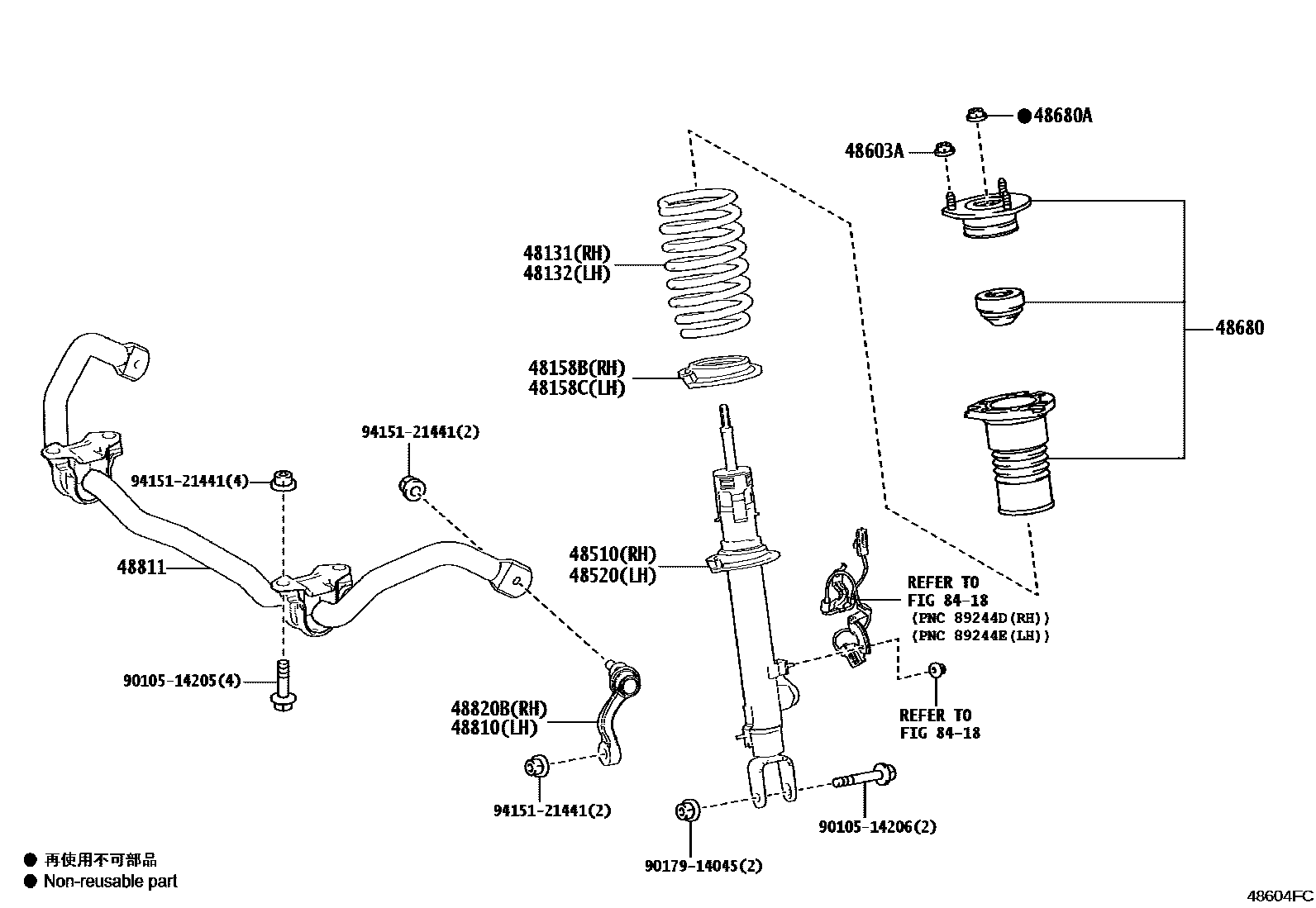

Parts diagram

48131SPRING, FRONT COIL, RH

48132SPRING, FRONT COIL, LH

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

48510ABSORBER ASSY, SHOCK, FRONT RH

48520ABSORBER ASSY, SHOCK, FRONT LH

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

48680SUPPORT ASSY, FRONT SUSPENSION

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

48810LINK ASSY, FRONT STABILIZER, LH

48811BAR, STABILIZER, FRONT

48820BLINK ASSY, FRONT STABILIZER, RH

8418ELECTRONIC HEIGHT CONTROL

→ Go to FIG 84-18

9010514205

9010514206

9017914045

9415121441

17 parts on this diagram · 2 diagrams in section

FRONT SPRING & SHOCK ABSORBER for Toyota 33B110

This section contains 23 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota 33B110. Key components include: SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, INSULATOR, FRONT COIL SPRING, LOWER RH, INSULATOR, FRONT COIL SPRING, LOWER LH, BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, LOWER RH.
