Toyota 3311F0 — MIRROR

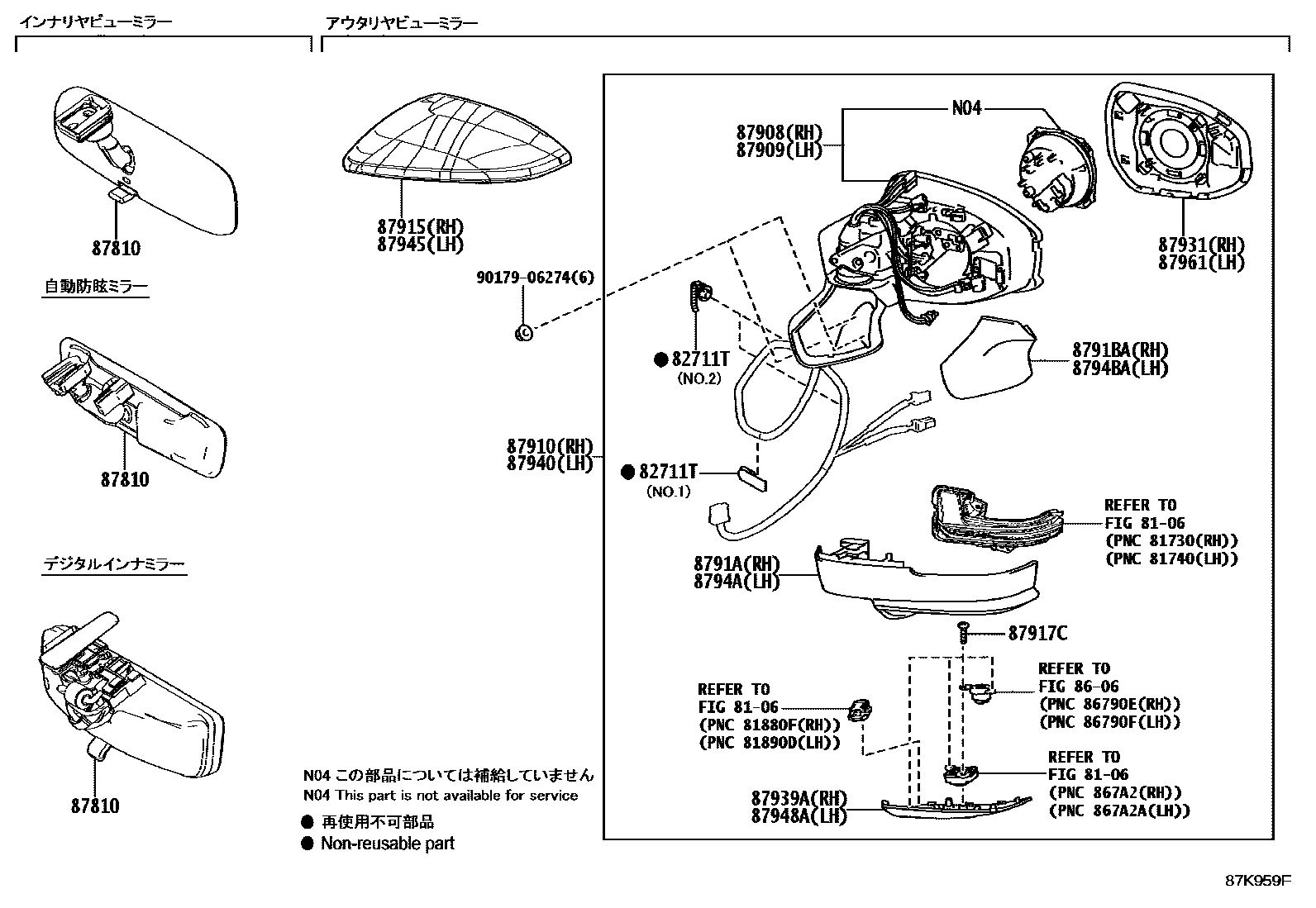

Parts diagram
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
→ Go to FIG 81-06
82711TCLAMP, WIRING HARNESS
8606CAMERA & REAR MONITOR DISPLAY
→ Go to FIG 86-06
87810MIRROR ASSY, INNER REAR VIEW
87810-53210
87840-0W360
87840-0W460
87908ACTUATOR ASSY, OUTER MIRROR, RH
87908-30J00
87908-30J80
87908-30J90
87908-30K00
87908-30M50
87909ACTUATOR ASSY, OUTER MIRROR, LH
87909-30J80
87909-30J90
87909-30K00
87909-30L80
87909-30N40
87910MIRROR ASSY, OUTER REAR VIEW, RH
87910-30J00
87910-30J80
87910-30J90
87910-30K00
87910-30M50
87915COVER, OUTER MIRROR, RH
87915-30060
87917CSCREW, OUTER MIRROR
8791ACOVER, OUTER MIRROR, RH NO.2
8791A-30J90
8791A-30K00
8791A-30K80
8791A-30K90
8791BACOVER, OUTER MIRROR, RH NO.3
87931OUTER MIRROR, RH
87931-30J80
87931-30K00
87931-30K90
87939ACOVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87940-30J80
87940-30J90
87940-30K00
87940-30L80
87940-30N40
87945COVER, OUTER MIRROR, LH
87945-30060
87948ACOVER, OUTER MIRROR HOLE, LH
8794ACOVER, OUTER MIRROR, LH NO.2
8794A-30J90
8794A-30K00
8794A-30M00
8794BACOVER, OUTER MIRROR, LH NO.3
87961MIRROR OUTER, LH
87961-30J80
87961-30K00
87961-30M00
9017906274
90179-06274

20 parts on this diagram · 1 diagram in section

MIRROR for Toyota 3311F0

This section contains 20 genuine Toyota parts for the MIRROR system of the Toyota 3311F0. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CLAMP, WIRING HARNESS, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, ACTUATOR ASSY, OUTER MIRROR, RH.
