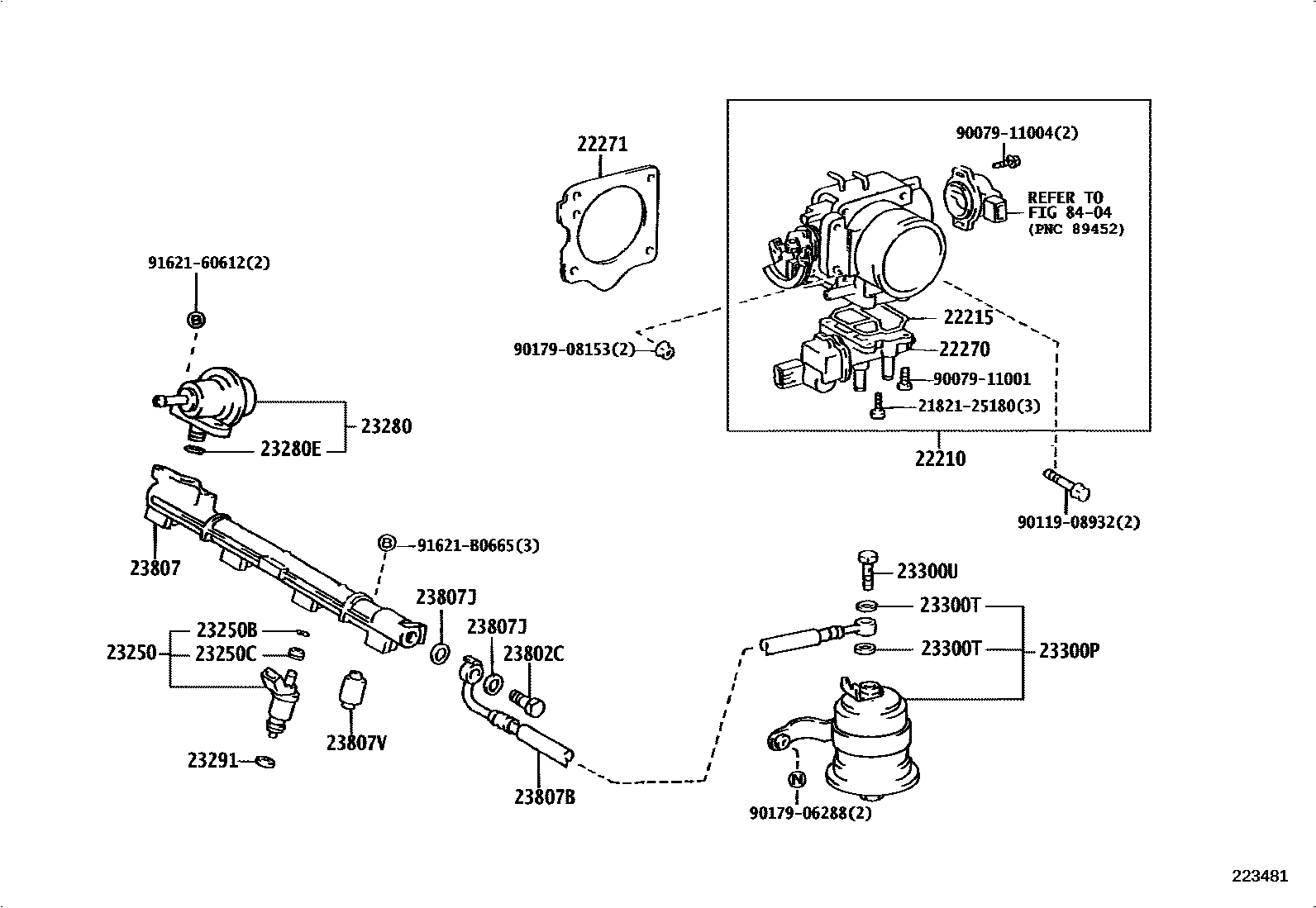

Toyota 231110 — FUEL INJECTION SYSTEM
22210BODY ASSY, THROTTLE
22215GASKET, THROTTLE BODY COVER
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23802CBOLT, UNION(FOR FUEL PIPE NO.2)
23807PIPE SUB-ASSY, FUEL DELIVERY
23807BHOSE, FUEL DELIVERY PIPE
23807JGASKET, PIPE FUEL DELIVARY INLET
23807VSPACER, NO.1(FOR DELIVERY PIPE)
8404ELECTRONIC FUEL INJECTION SYSTEM
2182125180SCREW, 2ND THROTTLE VALVE SET
9007911001
9007911004
9011908932
9017906288
9017908153
9162160612
91621B0665
27 parts on this diagram · 8 diagrams in section
FUEL INJECTION SYSTEM for Toyota 231110
This section contains 92 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota 231110. Key components include: VALVE ASSY, FUEL RELIEF, BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, BODY ASSY, THROTTLE, HOSE, WATER BY-PASS, NO.1, HOSE, WATER BY-PASS, NO.2.
