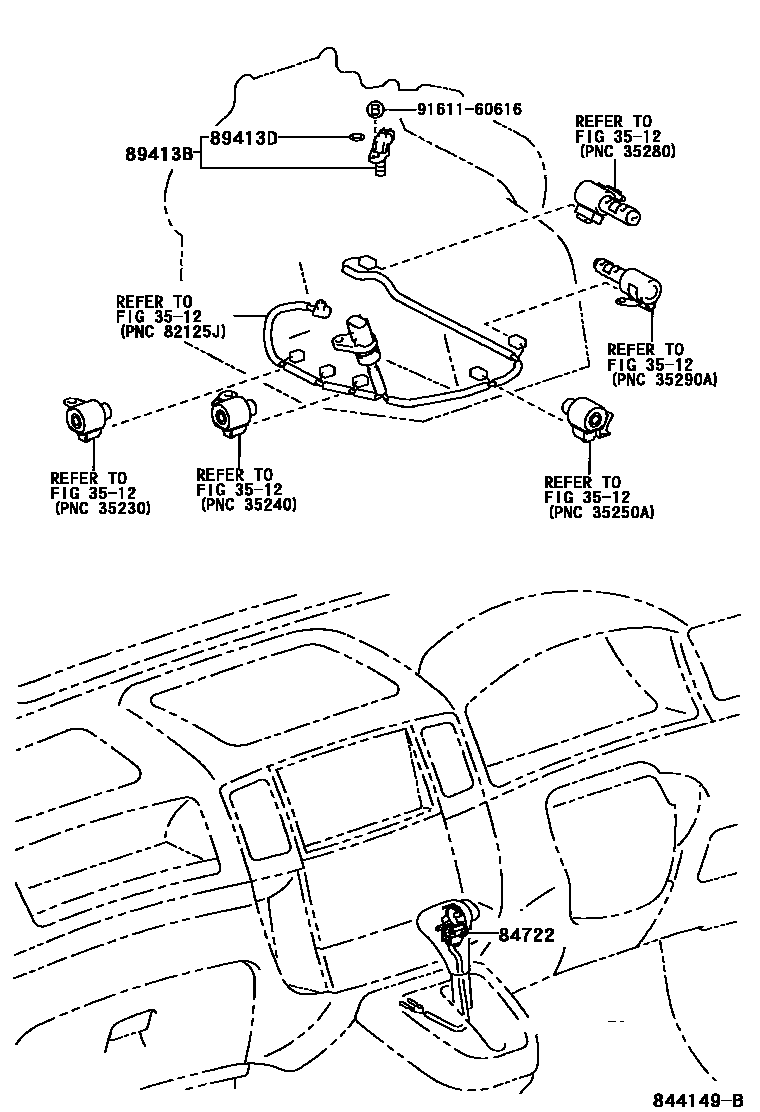

Toyota 157230 — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

84722SWITCH, TRANSMISSION CONTROL

84722-13020

84722-13030

89413BSENSOR, TRANSMISSION REVOLUTION

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

9161160616

91611-60616

5 parts on this diagram · 2 diagrams in section

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION for Toyota 157230

This section contains 6 genuine Toyota parts for the OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION system of the Toyota 157230. Key components include: VALVE BODY & OIL STRAINER (ATM), SWITCH, KICK DOWN, SWITCH, TRANSMISSION CONTROL, SENSOR, TRANSMISSION REVOLUTION, RING, O(FOR TRANSMISSION REVOLUTION SENSOR).
