Toyota 157230 — INTERIOR LAMP

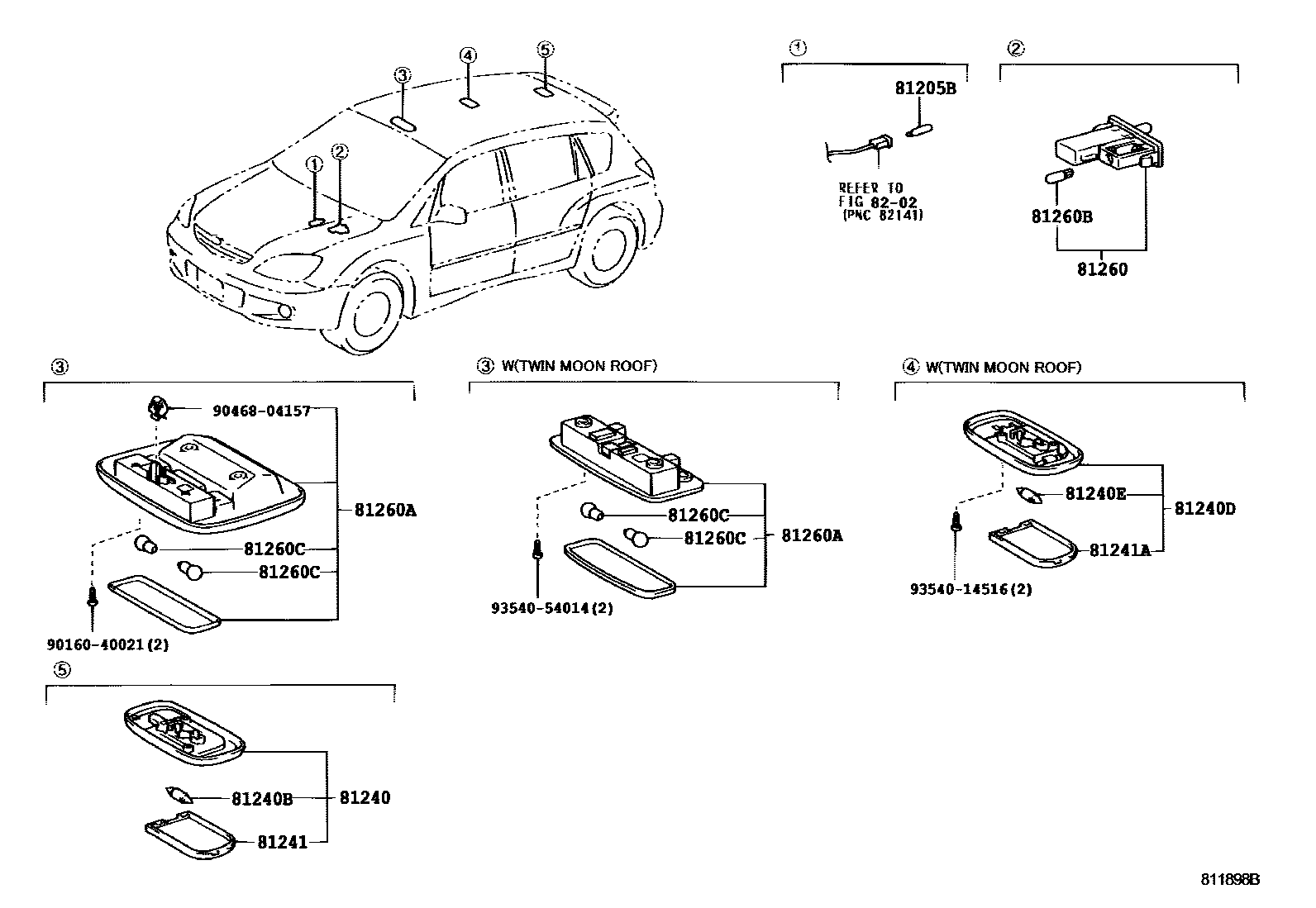

Parts diagram

81205BBULB, ASH RECEPTACLE LAMP

81240LAMP ASSY, ROOM, NO.1

81240BBULB, ROOM LAMP, NO.1

81240DLAMP ASSY, ROOM, NO.2

81240EBULB, ROOM LAMP, NO.2

81241LENS, ROOM LAMP, NO.1

81241ALENS, ROOM LAMP, NO.2

81260LAMP ASSY, GLOVE BOX

81260ALAMP ASSY, MAP

81260BBULB(FOR GLOVE BOX)

81260CBULB(FOR MAP LAMP)

8202WIRING & CLAMP

→ Go to FIG 82-02

9016040021

9046804157

9354014516

9354054014

16 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota 157230

This section contains 16 genuine Toyota parts for the INTERIOR LAMP system of the Toyota 157230. Key components include: BULB, ASH RECEPTACLE LAMP, LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2, BULB, ROOM LAMP, NO.2.
