Toyota 157230 — HEATING & AIR CONDITIONING - WATER PIPING

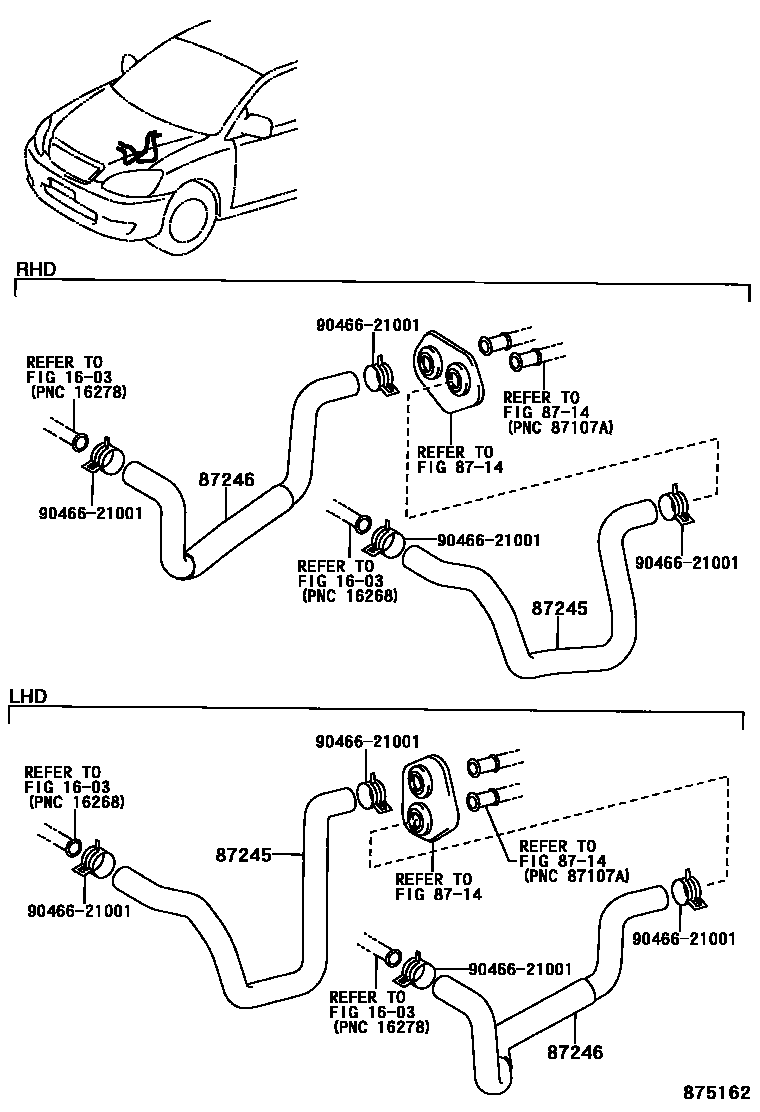

Parts diagram
1603RADIATOR & WATER OUTLET
→ Go to FIG 16-03
8714HEATING & AIR CONDITIONING - COOLER UNIT
→ Go to FIG 87-14
87245HOSE, HEATER WATER, INLET
87245-13010
87245-13030
87245-13050
87245-13070
87245-1E071
87245-1E151
87246HOSE, HEATER WATER, OUTLET
87245-13020
87245-13060
87245-1E080
87245-1E160
9046621001
90466-21001

5 parts on this diagram · 4 diagrams in section

HEATING & AIR CONDITIONING - WATER PIPING for Toyota 157230

This section contains 56 genuine Toyota parts for the HEATING & AIR CONDITIONING - WATER PIPING system of the Toyota 157230. Key components include: CYLINDER HEAD, RADIATOR & WATER OUTLET, BRACKET SUB-ASSY, HEATER NO.1, BRACKET SUB-ASSY, HEATER NO.2, HEATER ASSY.
