Toyota 157230 — FUEL INJECTION SYSTEM

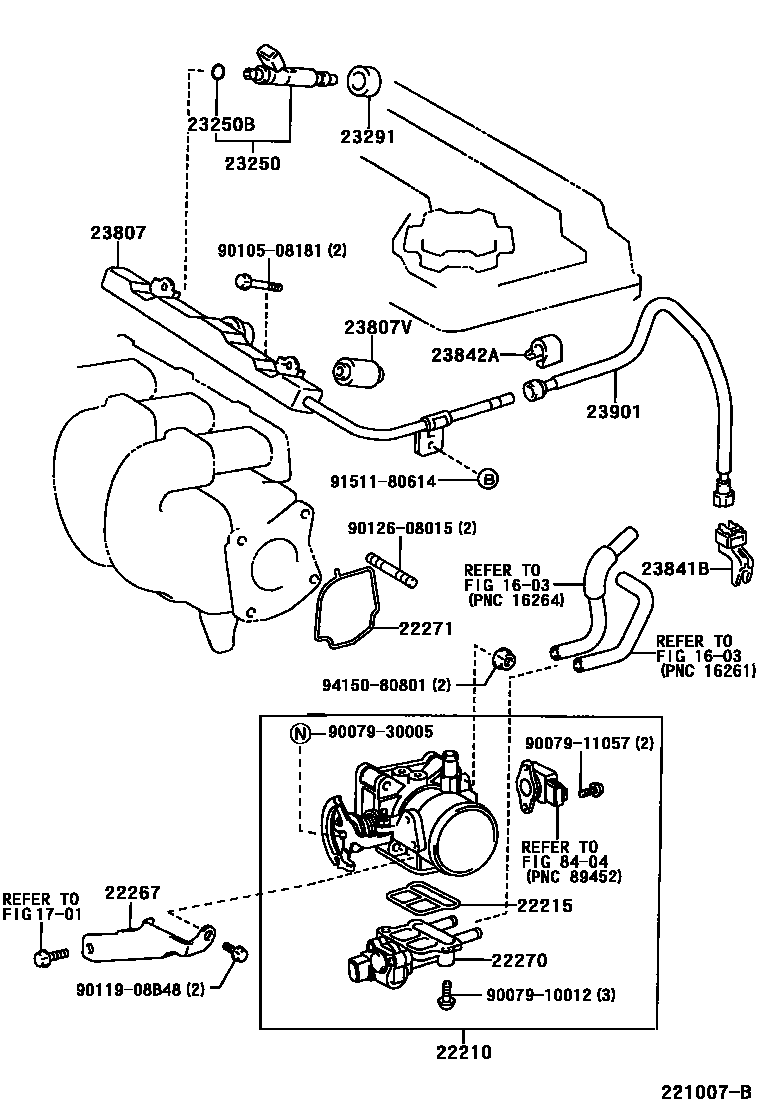

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

22210BODY ASSY, THROTTLE

22215GASKET, THROTTLE BODY COVER

22267BRACKET, THROTTLE BODY

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

22271GASKET, THROTTLE BODY

23250INJECTOR ASSY, FUEL

23250BRING, O(FOR FUEL INJECTOR)

23291INSULATOR, INJECTOR VIBRATION

23807PIPE SUB-ASSY, FUEL DELIVERY

23807VSPACER, NO.1(FOR DELIVERY PIPE)

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

23901TUBE SUB-ASSY, FUEL

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9007910012

9007911057

9007930005

9010508181

9011908B48

9012608015

9151180614

9415080801

24 parts on this diagram · 3 diagrams in section

FUEL INJECTION SYSTEM for Toyota 157230

This section contains 38 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota 157230. Key components include: RADIATOR & WATER OUTLET, MANIFOLD, BODY ASSY, THROTTLE, GASKET, THROTTLE BODY COVER, BRACKET, THROTTLE BODY.
