Toyota 781210 — WOODEN GRAIN PANEL & MOULDING

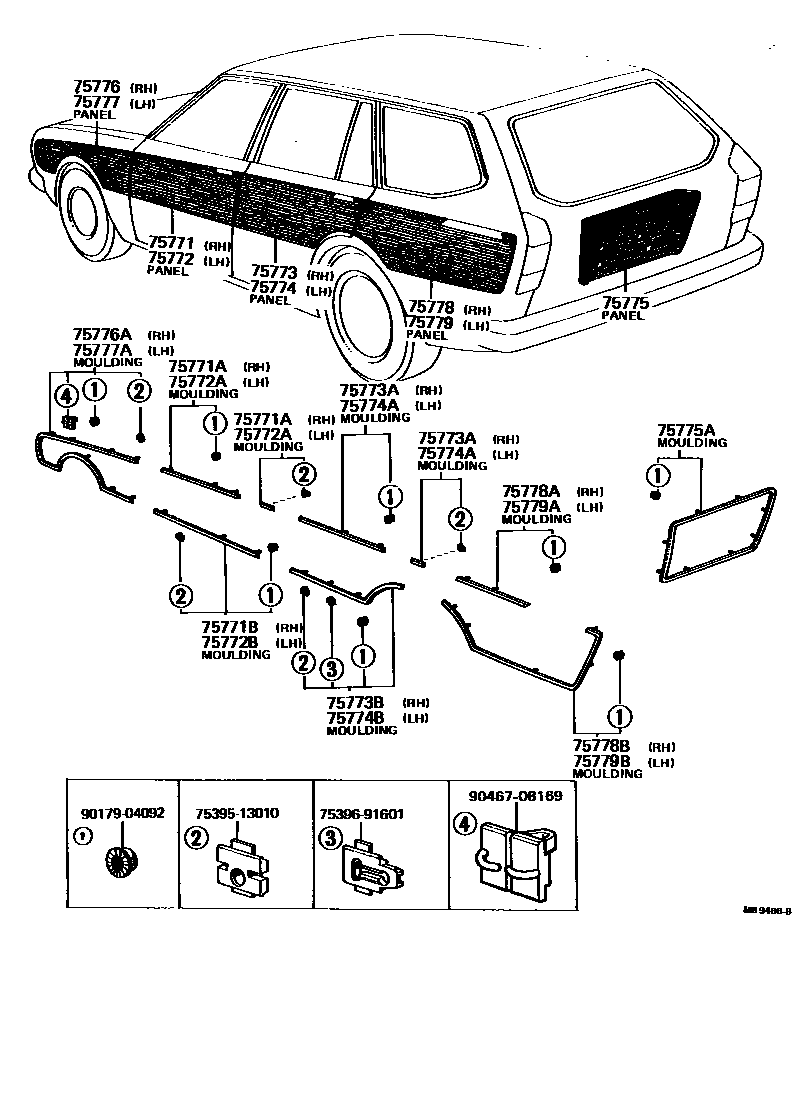

Parts diagram

75771PANEL, FRONT DOOR OUTER SIDE FINISH, RH

75771AMOULDING, FRONT DOOR OUTER SIDE FINISH PANEL, RH NO.1

75771BMOULDING, FRONT DOOR OUTER SIDE FINISH PANEL, RH NO.2

75772PANEL, FRONT DOOR OUTER SIDE FINISH, LH

75772AMOULDING, FRONT DOOR OUTER SIDE FINISH PANEL, LH NO.1

75772BMOULDING, FRONT DOOR OUTER SIDE FINISH PANEL, LH NO.2

75773PANEL, REAR DOOR OUTER SIDE FINISH, RH

75773AMOULDING, REAR DOOR OUTER SIDE FINISH PANEL, RH NO.1

75773BMOULDING, REAR DOOR OUTER SIDE FINISH PANEL, RH NO.2

75774PANEL, REAR DOOR OUTER SIDE FINISH, LH

75774AMOULDING, REAR DOOR OUTER SIDE FINISH PANEL, LH NO.1

75774BMOULDING, REAR DOOR OUTER SIDE FINISH PANEL, LH NO.2

75775PANEL, BACK DOOR OUTER SIDE FINISH

75775AMOULDING, BACK DOOR OUTER SIDE FINISH PANEL, NO.1

75776PANEL, FRONT FENDER OUTER SIDE FINISH, RH

75776AMOULDING, FRONT FENDER OUTER SIDE FINISH PANEL, RH NO.1

75777PANEL, FRONT FENDER OUTER SIDE FINISH, LH

75777AMOULDING, FRONT FENDER OUTER SIDE FINISH PANEL, LH NO.1

75778PANEL, QUARTER PANEL OUTSIDE FINISH, RH

75778AMOULDING, QUARTER PANEL OUTSIDE FINISH PANEL, RH NO.1

75778BMOULDING, QUARTER PANEL OUTSIDE FINISH PANEL, RH NO.2

75779PANEL, QUARTER PANEL OUTER SIDE FINISH, LH

75779AMOULDING, QUARTER PANEL OUTER SIDE FINISH PANEL, LH NO.1

75779BMOULDING, QUARTER PANEL OUTER SIDE FINISH PANEL, LH NO.2

7539513010CLIP, BACK DOOR MOULDING, NO.1

7539691601CLIP, OUTSIDE MOULDING, NO.2

9017904092

9046708169

28 parts on this diagram · 1 diagram in section

WOODEN GRAIN PANEL & MOULDING for Toyota 781210

This section contains 28 genuine Toyota parts for the WOODEN GRAIN PANEL & MOULDING system of the Toyota 781210. Key components include: PANEL, FRONT DOOR OUTER SIDE FINISH, RH, MOULDING, FRONT DOOR OUTER SIDE FINISH PANEL, RH NO.1, MOULDING, FRONT DOOR OUTER SIDE FINISH PANEL, RH NO.2, PANEL, FRONT DOOR OUTER SIDE FINISH, LH, MOULDING, FRONT DOOR OUTER SIDE FINISH PANEL, LH NO.1.
