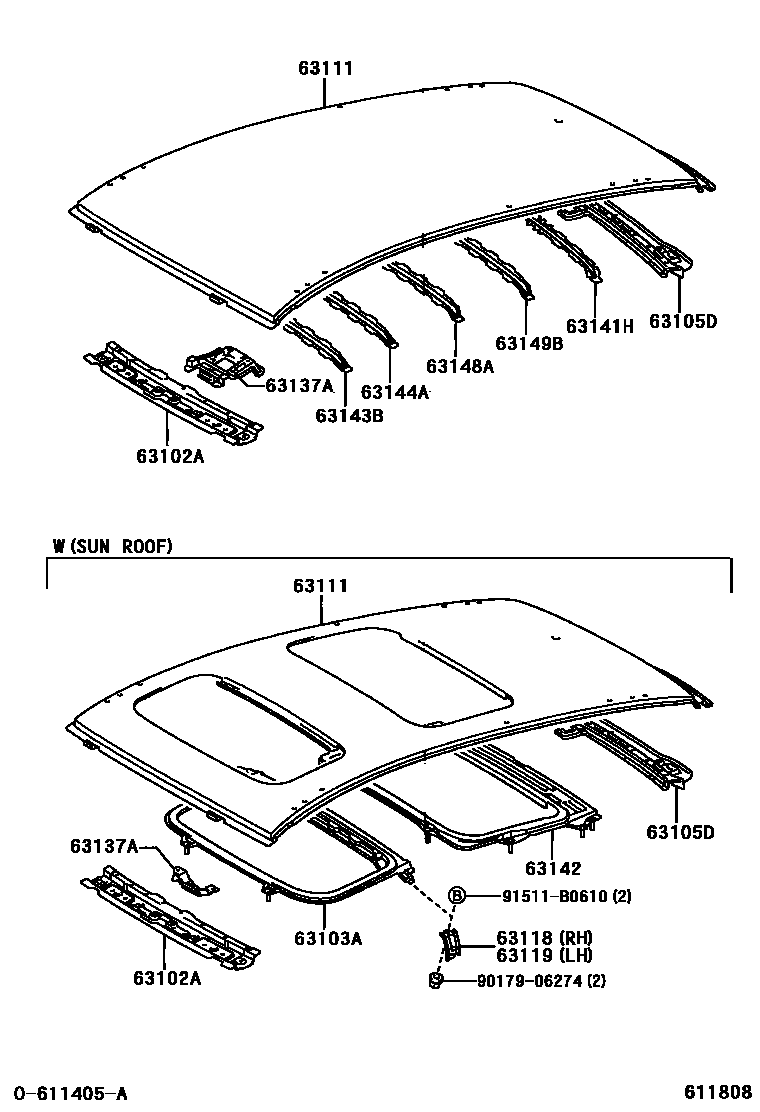

Toyota COROLLA 151 — ROOF PANEL & BACK WINDOW GLASS
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63103AREINFORCEMENT SUB-ASSY, ROOF PANEL
63105DFRAME SUB-ASSY, BACK WINDOW, UPPER
63111PANEL, ROOF
63118SUPPORT, ROOF PANEL, RH
63119SUPPORT, ROOF PANEL, LH
63137ABRACKET, DOME LAMP, NO.1
63141HREINFORCEMENT, ROOF PANEL, CENTER
63142REINFORCEMENT, ROOF PANEL, NO.2
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63148AREINFORCEMENT, ROOF PANEL, NO.7
63149BREINFORCEMENT, ROOF PANEL, NO.1 REAR
9017906274
91511B0610
15 parts on this diagram · 3 diagrams in section
ROOF PANEL & BACK WINDOW GLASS for Toyota COROLLA 151
This section contains 63 genuine Toyota parts for the ROOF PANEL & BACK WINDOW GLASS system of the Toyota COROLLA 151. Key components include: PANEL SUB-ASSY, WINDSHIELD HEADER, REINFORCEMENT SUB-ASSY, ROOF PANEL, FRAME SUB-ASSY, BACK WINDOW, UPPER, PANEL, ROOF, SUPPORT, ROOF PANEL, RH.
