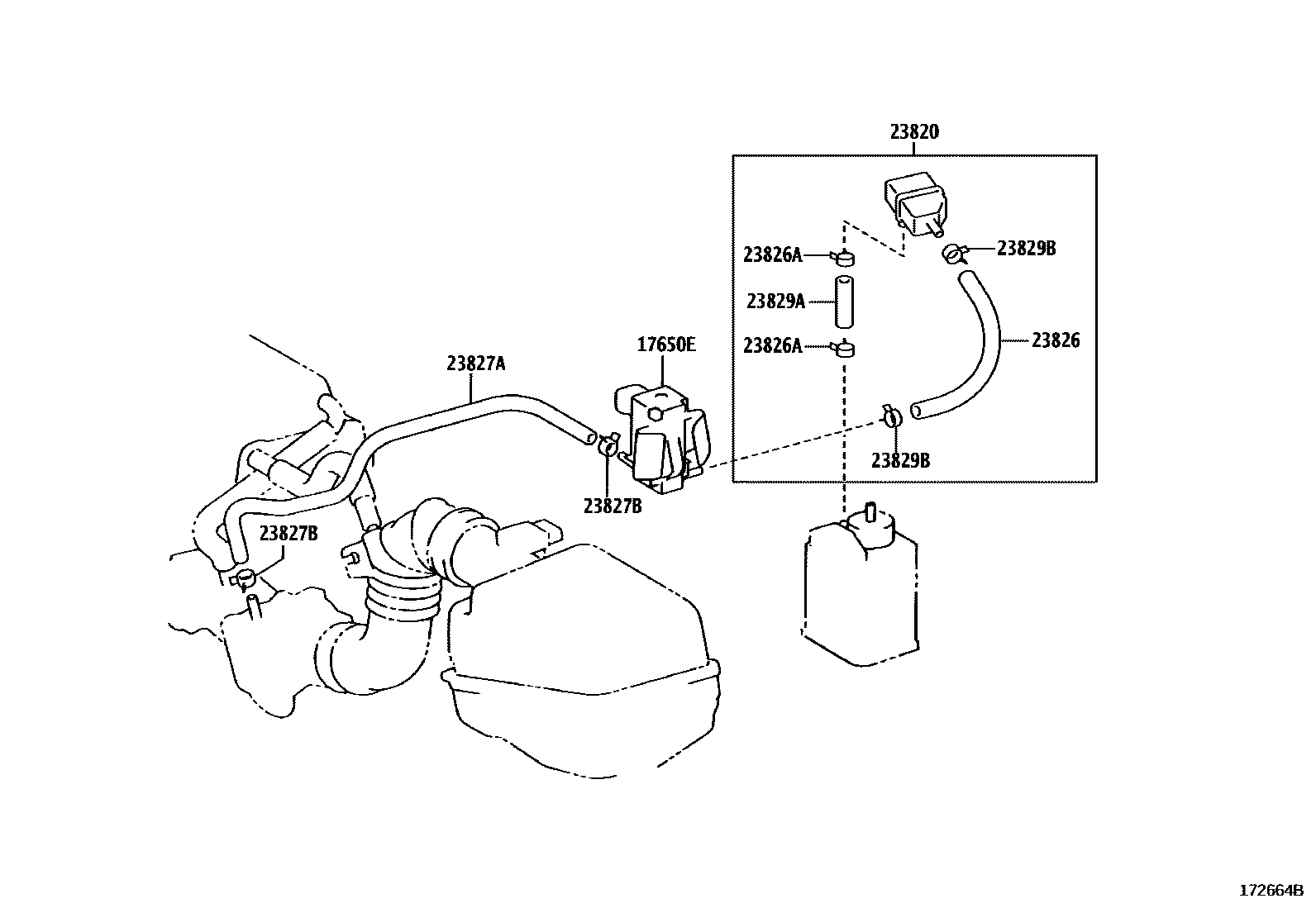

Toyota COROLLA RUNX/ALLEX 153 — VACUUM PIPING
17650EVALVE, VACUUM SWITCHING
23820HOSE ASSY, FUEL VAPOR FEED
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
23827AHOSE, FUEL VAPOR FEED, NO.2
23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
23829AHOSE, FUEL VAPOR FEED
23829BCLIP(FOR FUEL VAPOR FEED HOSE)
9 parts on this diagram · 3 diagrams in section
VACUUM PIPING for Toyota COROLLA RUNX/ALLEX 153
This section contains 14 genuine Toyota parts for the VACUUM PIPING system of the Toyota COROLLA RUNX/ALLEX 153. Key components include: VALVE, VACUUM SWITCHING, VALVE, CHECK, NO.2, HOSE ASSY, FUEL VAPOR FEED, HOSE, FUEL VAPOR FEED, NO.1, CLIP(FOR FUEL VAPOR FEED HOSE, NO.1).
