Toyota COROLLA RUNX/ALLEX 153 — ROOF PANEL & BACK WINDOW GLASS

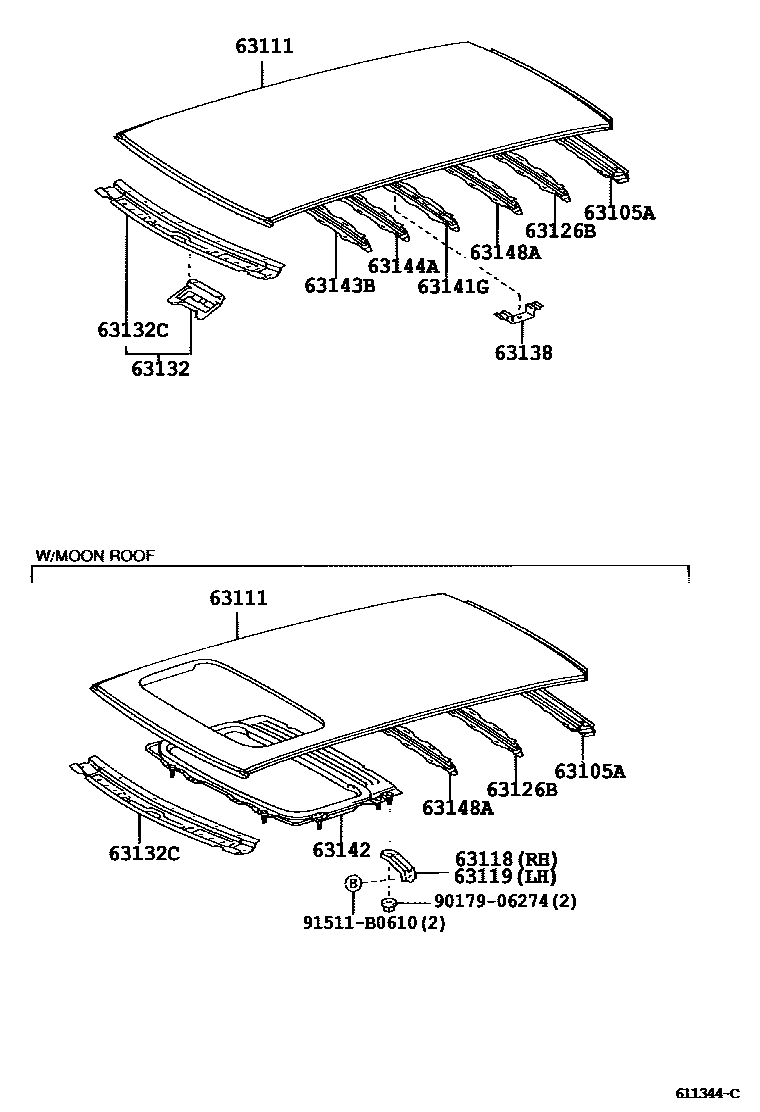

Parts diagram

63105AFRAME SUB-ASSY, BACK DOOR OPENING

63111PANEL, ROOF

63118SUPPORT, ROOF PANEL, RH

63119SUPPORT, ROOF PANEL, LH

63126BREINFORCEMENT, ROOF PANEL, REAR NO.2

63132PANEL, WINDSHIELD HEADER, INNER

63132CPANEL, WINDSHIELD HEADER, INNER

63138BRACKET, DOME LAMP, NO.2

63141GREINFORCEMENT, ROOF PANEL, NO.1

63142REINFORCEMENT, ROOF PANEL, NO.2

63143BREINFORCEMENT, ROOF PANEL, NO.3

63144AREINFORCEMENT, ROOF PANEL, NO.4

63148AREINFORCEMENT, ROOF PANEL, NO.7

9017906274

91511B0610

15 parts on this diagram · 2 diagrams in section

ROOF PANEL & BACK WINDOW GLASS for Toyota COROLLA RUNX/ALLEX 153

This section contains 35 genuine Toyota parts for the ROOF PANEL & BACK WINDOW GLASS system of the Toyota COROLLA RUNX/ALLEX 153. Key components include: FRAME SUB-ASSY, BACK DOOR OPENING, PANEL, ROOF, SUPPORT, ROOF PANEL, RH, SUPPORT, ROOF PANEL, LH, REINFORCEMENT, ROOF PANEL, REAR NO.2.
