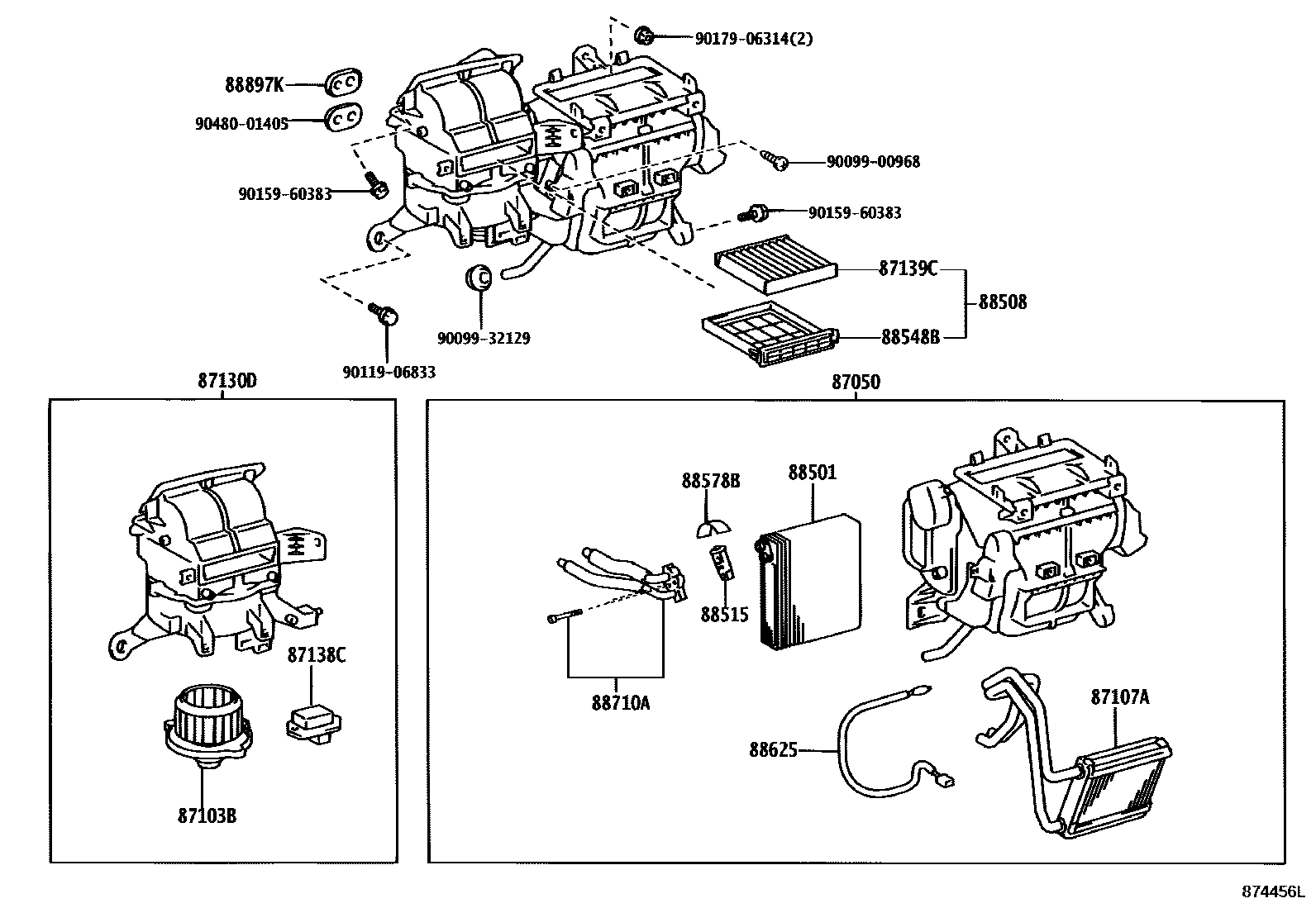

Toyota COROLLA RUNX/ALLEX 153 — HEATING & AIR CONDITIONING - COOLER UNIT
87050RADIATOR ASSY, AIR CONDITIONER
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87130DBLOWER ASSY
87138CRESISTOR, BLOWER
87139CFILTER, CLEAN AIR
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88548BCASE, AIR FILTER
88578BPACKING, COOLING UNIT, NO.1
88710ATUBE ASSY, AIR CONDITIONER
88897KGROMMET, (FOR COOLER PIPE)
9009900968
9009932129
9011906833
9015960383
9017906314
9048001405
20 parts on this diagram · 4 diagrams in section
HEATING & AIR CONDITIONING - COOLER UNIT for Toyota COROLLA RUNX/ALLEX 153
This section contains 30 genuine Toyota parts for the HEATING & AIR CONDITIONING - COOLER UNIT system of the Toyota COROLLA RUNX/ALLEX 153. Key components include: RADIATOR ASSY, AIR CONDITIONER, MOTOR SUB-ASSY, BLOWER W/FAN, SERVO SUB-ASSY, DAMPER(FOR AIRMIX), SERVO SUB-ASSY, DAMPER(FOR MODE), SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION).
