Toyota COROLLA RUNX/ALLEX 153 — EXHAUST GAS RECIRCULATION SYSTEM

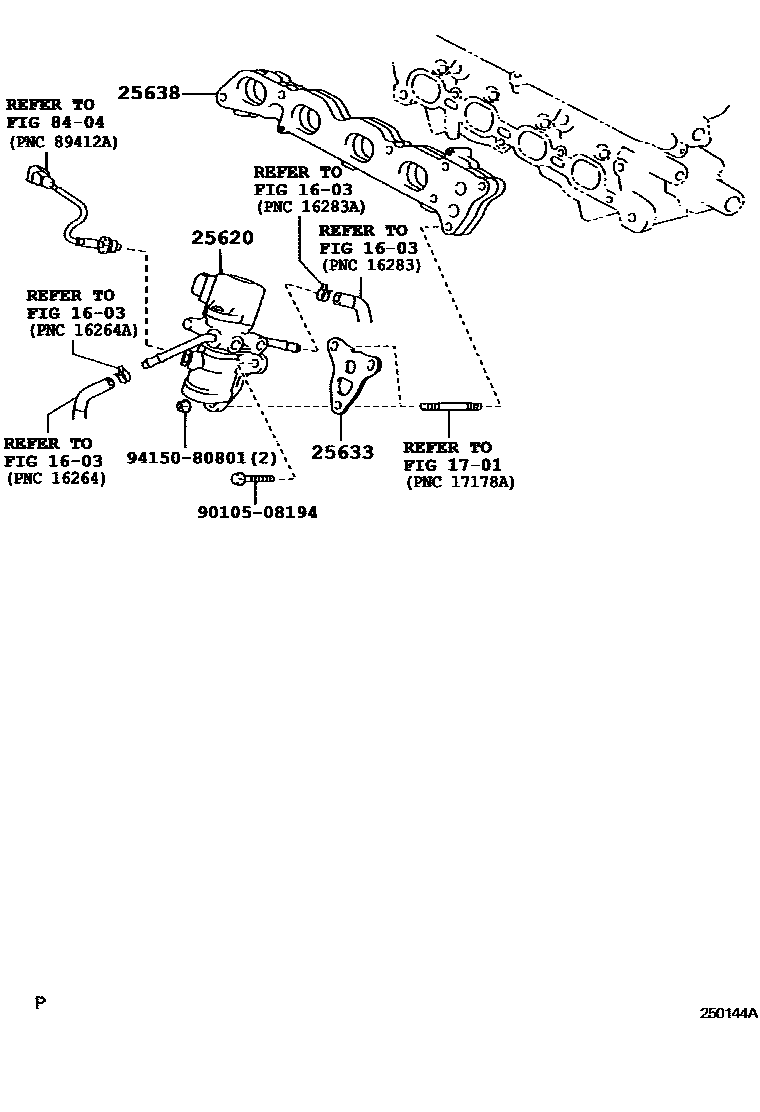

Parts diagram
1603RADIATOR & WATER OUTLET
→ Go to FIG 16-03
1701MANIFOLD
→ Go to FIG 17-01
25620VALVE ASSY, EGR
25620-21010
25633GASKET, EGR VALVE
25633-21020
25638CHAMBER, EGR DELIVERY
25638-21020
8404ELECTRONIC FUEL INJECTION SYSTEM
→ Go to FIG 84-04
9010508194
90105-08194
9415080801
94150-80801

8 parts on this diagram · 1 diagram in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota COROLLA RUNX/ALLEX 153

This section contains 8 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota COROLLA RUNX/ALLEX 153. Key components include: RADIATOR & WATER OUTLET, MANIFOLD, VALVE ASSY, EGR, GASKET, EGR VALVE, CHAMBER, EGR DELIVERY.
