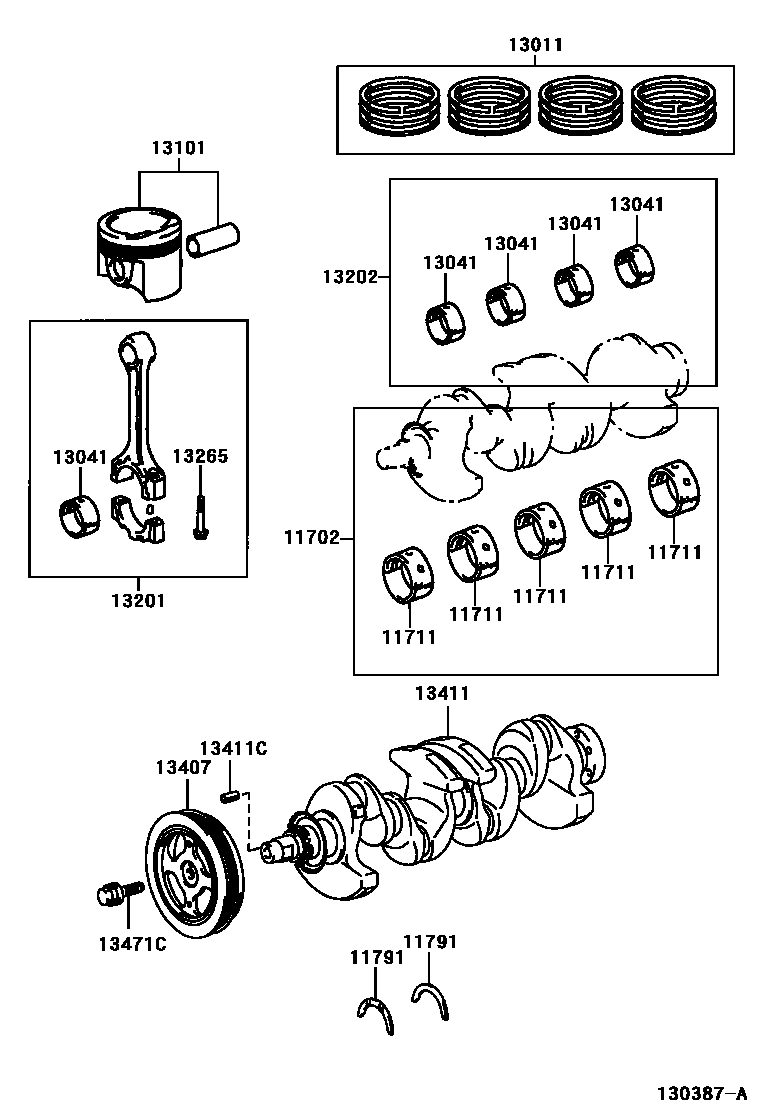

Toyota COROLLA RUNX/ALLEX 153 — CRANKSHAFT & PISTON
11702BEARING SET, CRANKSHAFT
11711BEARING, CRANKSHAFT
11791WASHER, CRANKSHAFT THRUST, UPPER
13011RING SET, PISTON
13101PISTON SUB-ASSY, W/PIN
13201ROD SUB-ASSY, CONNECTING
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
14 parts on this diagram · 3 diagrams in section
CRANKSHAFT & PISTON for Toyota COROLLA RUNX/ALLEX 153
This section contains 23 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota COROLLA RUNX/ALLEX 153. Key components include: BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, WASHER, CRANKSHAFT THRUST, UPPER, RING SET, PISTON, BEARING, CONNECTING ROD.
