Toyota 551310 — REAR SPRING & SHOCK ABSORBER
42110FBEAM ASSY, REAR AXLE
46439BINSULATOR, PARKING BRAKE CABLE HEAT
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48530ABSORBER ASSY, SHOCK, REAR RH
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48540ABSORBER ASSY, SHOCK, REAR LH
48725BBUSH, REAR SUSPENSION ARM, NO.1
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48752ASTOPPER, REAR SUSPENSION SUPPORT
48760BSUPPORT ASSY REAR SUSPENSION, LH
9010910181
9011912444
9011914187
90119T0586
9017806012
9017810022
9017812023
91674N1065
9415181041

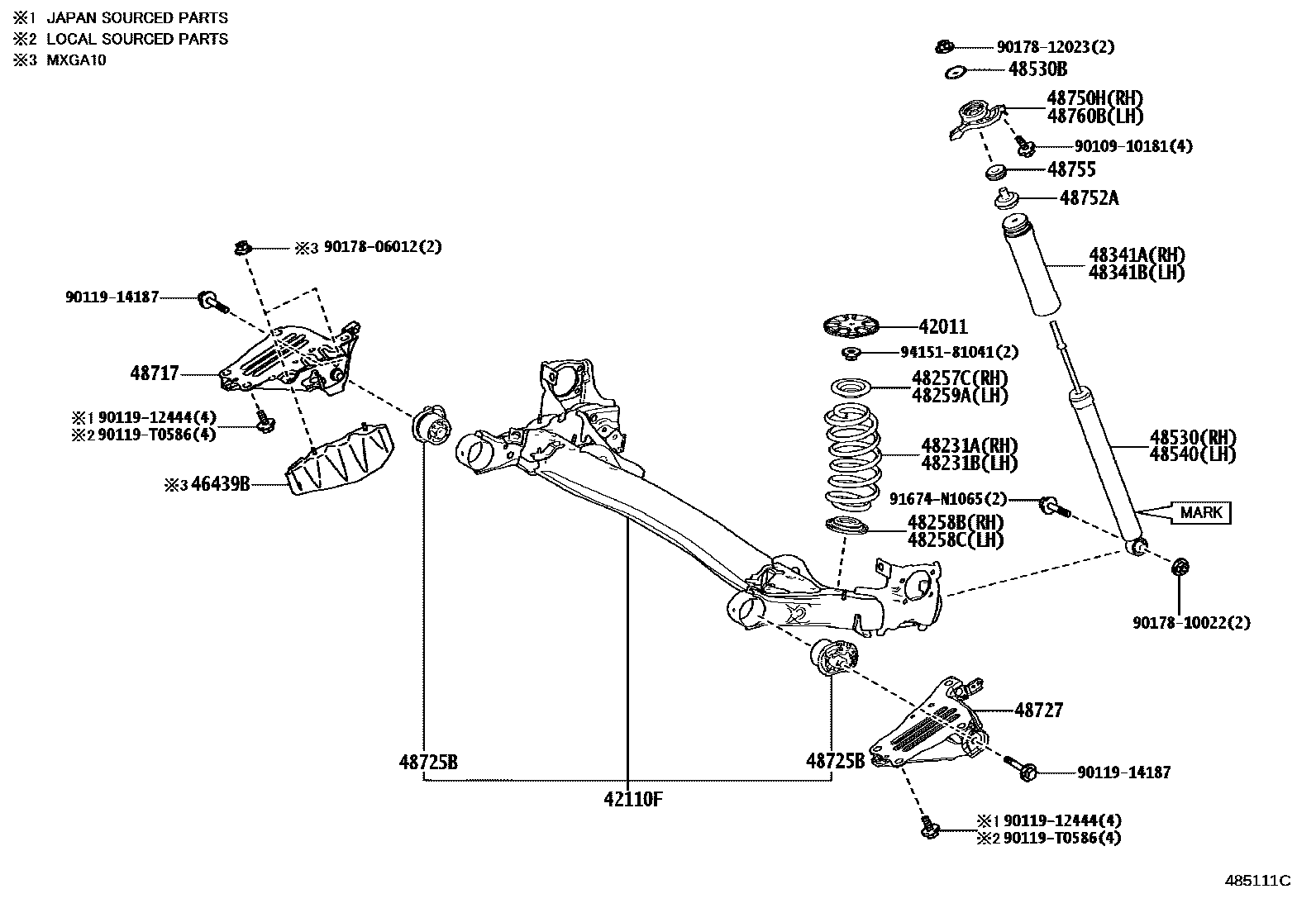

30 parts on this diagram · 1 diagram in section
REAR SPRING & SHOCK ABSORBER for Toyota 551310
This section contains 30 genuine Toyota parts for the REAR SPRING & SHOCK ABSORBER system of the Toyota 551310. Key components include: SEAT SUB-ASSY, REAR SPRING, BEAM ASSY, REAR AXLE, INSULATOR, PARKING BRAKE CABLE HEAT, SPRING, COIL, REAR RH, SPRING, COIL, REAR LH.
