Toyota COROLLA COUPE 161 — HEADLAMP CLEANER

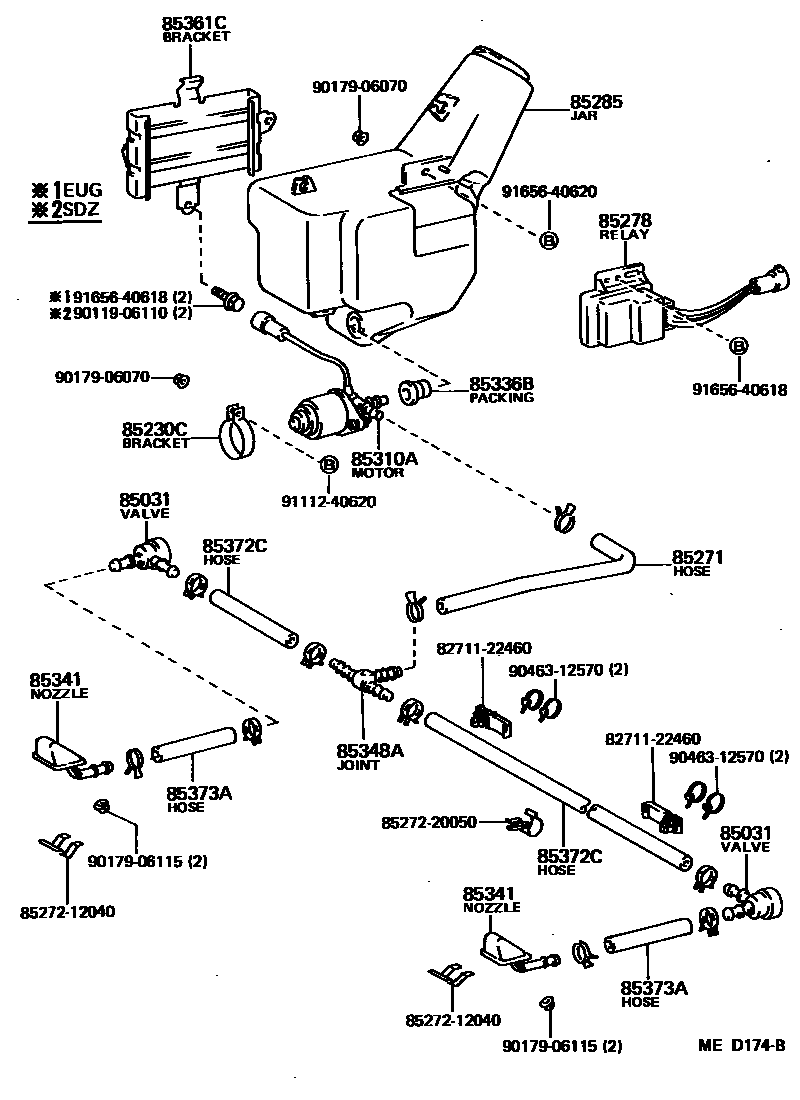

Parts diagram

85031VALVE, HEADLAMP CLEANER WASHER HOSE

85230CBRACKET ASSY, HEADLAMP CLEANER

85271HOSE, HEADLAMP CLEANER, NO.1

85278RELAY ASSY, HEADLAMP CLEANER CONTROL

85285JAR, HEADLAMP CLEANER WASHER

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

85336BPACKING, HEADLAMP CLEANER WASHER

85341NOZZLE, HEADLAMP CLEANER WASHER

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

85361CBRACKET, WASHER

85372CHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO VALVE)

85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)

8271122460WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

8527212040CABLE SUB-ASSY, HEADLAMP CLEANER, RH

8527220050CABLE SUB-ASSY, HEADLAMP CLEANER, RH

9011906110

9017906070

9017906115

9046312570

9111240620

9165640618

9165640620

22 parts on this diagram · 1 diagram in section

HEADLAMP CLEANER for Toyota COROLLA COUPE 161

This section contains 22 genuine Toyota parts for the HEADLAMP CLEANER system of the Toyota COROLLA COUPE 161. Key components include: VALVE, HEADLAMP CLEANER WASHER HOSE, BRACKET ASSY, HEADLAMP CLEANER, HOSE, HEADLAMP CLEANER, NO.1, RELAY ASSY, HEADLAMP CLEANER CONTROL, JAR, HEADLAMP CLEANER WASHER.
