Toyota 105110 — FRONT BUMPER & BUMPER STAY

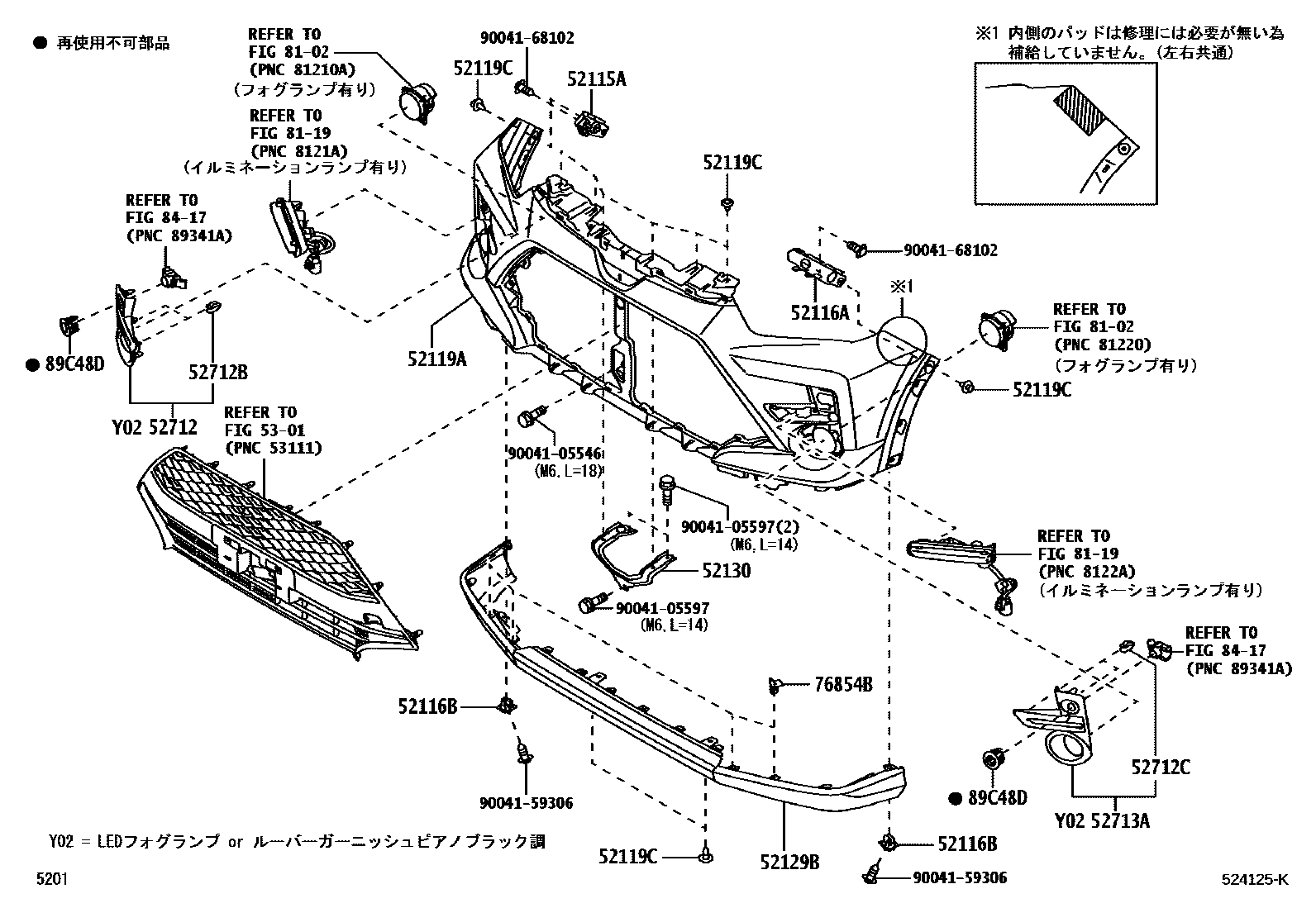

Parts diagram
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52116BRETAINER, FRONT BUMPER
52119ACOVER, FRONT BUMPER
52119CCLIP, FRONT BUMPER COVER
52129BCOVER, FRONT BUMPER, LOWER
52130BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH
52130-B1010
52712MOULDING, FRONT BUMPER SIDE, RH
00000-00000
52712-B1170
90467-05172
52712-B1180
52712-B1220
52712BCLIP, FRONT BUMPER MOULDING
52712CCLIP, FRONT BUMPER MOULDING, NO.2
52713AMOULDING, FRONT BUMPER SIDE, LH
5301RADIATOR GRILLE
→ Go to FIG 53-01
76854BRETAINER, FRONT SPOILER,NO.2
8102FOG LAMP
→ Go to FIG 81-02
8119DAYTIME RUNNING LAMP OR ILLUMINATION LAMP
→ Go to FIG 81-19
8417CLEARANCE & BACK SONAR
→ Go to FIG 84-17
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
9004105546
90041-05546
9004105597
90041-05597
9004159306
90041-59306
9004168102
90041-68102

21 parts on this diagram · 2 diagrams in section

FRONT BUMPER & BUMPER STAY for Toyota 105110

This section contains 22 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota 105110. Key components include: SUPPORT, FRONT BUMPER SIDE, RH, SUPPORT, FRONT BUMPER SIDE, LH, RETAINER, FRONT BUMPER, COVER, FRONT BUMPER, CLIP, FRONT BUMPER COVER.
