Toyota COASTER — ELECTRONIC HEIGHT CONTROL

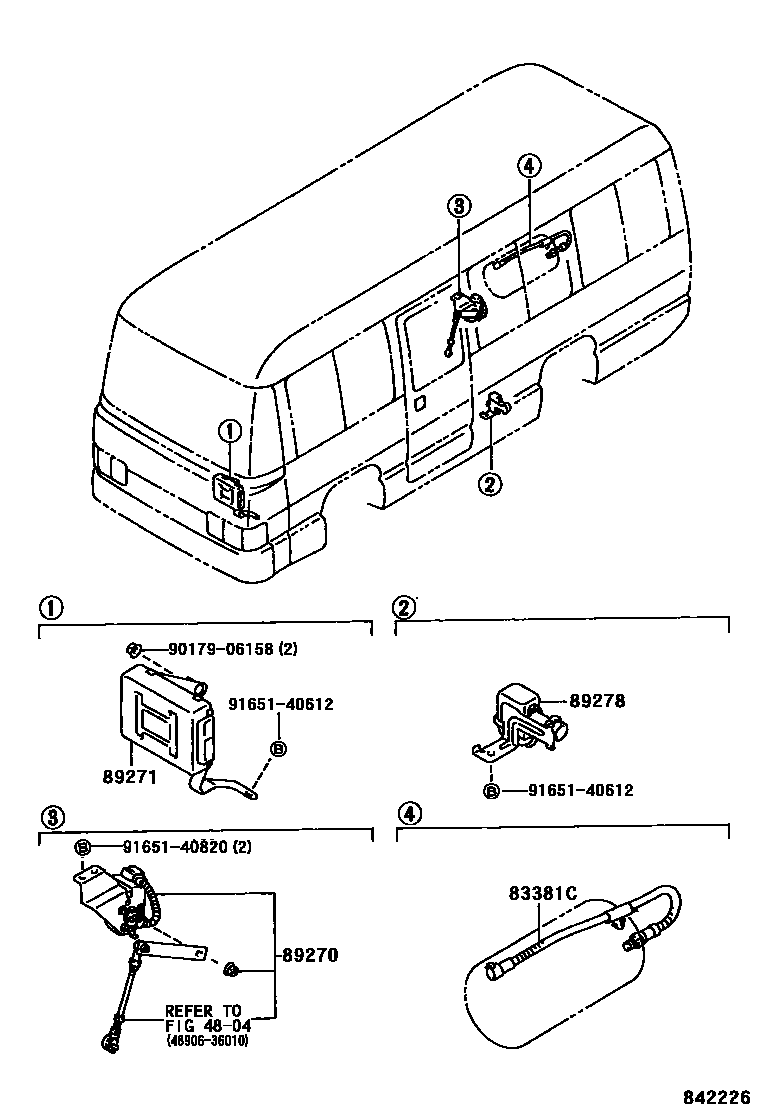

Parts diagram

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

83381CSWITCH, PRESSURE

main83381-36020i198808-199301

89270SENSOR ASSY, HEIGHT CONTROL

main89270-36010i198808-199001

main89270-36011i199001-199301

89271COMPUTER, HEIGHT CONTROL

main89271-36010i198808-199301

89278RELAY, HEIGHT CONTROL

main89278-36010i198808-199301

9017906158

main90179-06158

9165140612

main91651-40612

9165140820

main91651-40820

8 parts on this diagram · 1 diagram in section

ELECTRONIC HEIGHT CONTROL for Toyota COASTER

This section contains 8 genuine Toyota parts for the ELECTRONIC HEIGHT CONTROL system of the Toyota COASTER. Key components include: REAR SPRING & SHOCK ABSORBER, SWITCH, PRESSURE, SENSOR ASSY, HEIGHT CONTROL, COMPUTER, HEIGHT CONTROL, RELAY, HEIGHT CONTROL.
