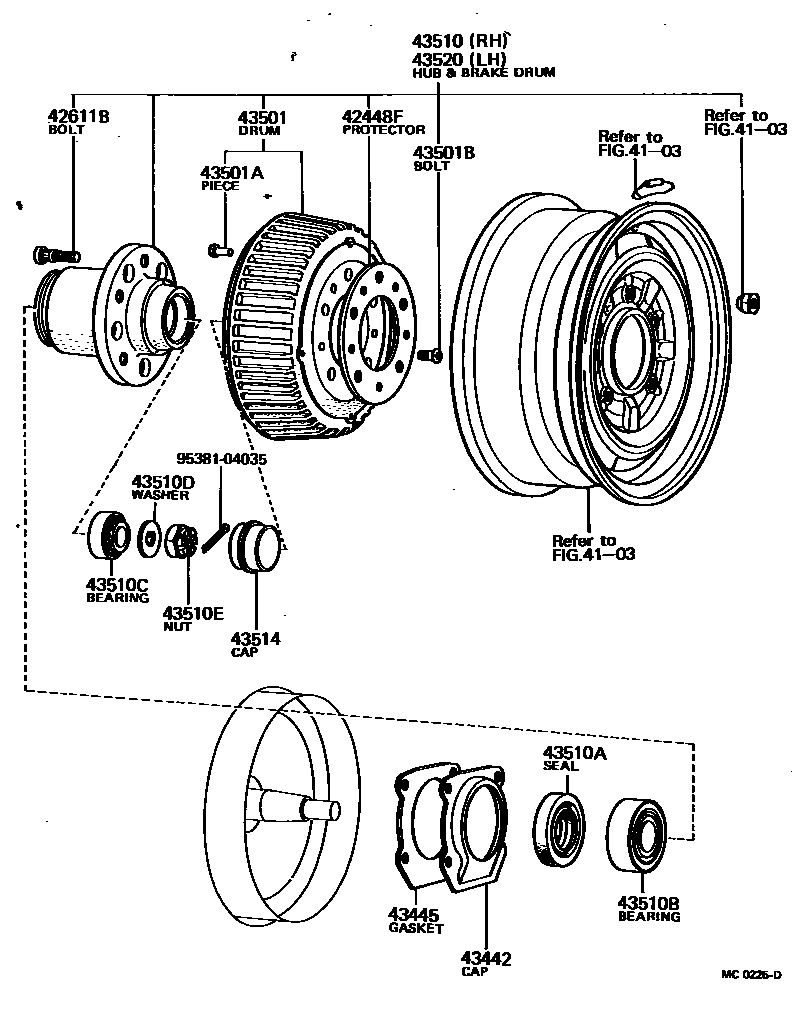

Toyota 271120 — FRONT AXLE HUB
4103DISC WHEEL & WHEEL CAP
42448FPROTECTOR, FRONT BRAKE DRUM
42611BBOLT, HUB (FOR FRONT AXLE)
43442CAP, KNUCKLE GREASE RETAINER, INNER
43445GASKET, KNUCKLE GREASE RETAINER CAP
43501DRUM SUB-ASSY, FRONT BRAKE
43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)
43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)
43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH
43510ASEAL, OIL (FOR FRONT AXLE HUB)
43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)
43510ENUT (FOR STEERING KNUCKLE)
9538104035
17 parts on this diagram · 2 diagrams in section
FRONT AXLE HUB for Toyota 271120
This section contains 22 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota 271120. Key components include: DISC WHEEL & WHEEL CAP, PROTECTOR, FRONT BRAKE DRUM, BOLT, HUB (FOR FRONT AXLE), CAP, KNUCKLE GREASE RETAINER, INNER, GASKET, KNUCKLE GREASE RETAINER CAP.
