Toyota 271120 — DASH SILENCER BOARD & FLOOR SILENCER PAD

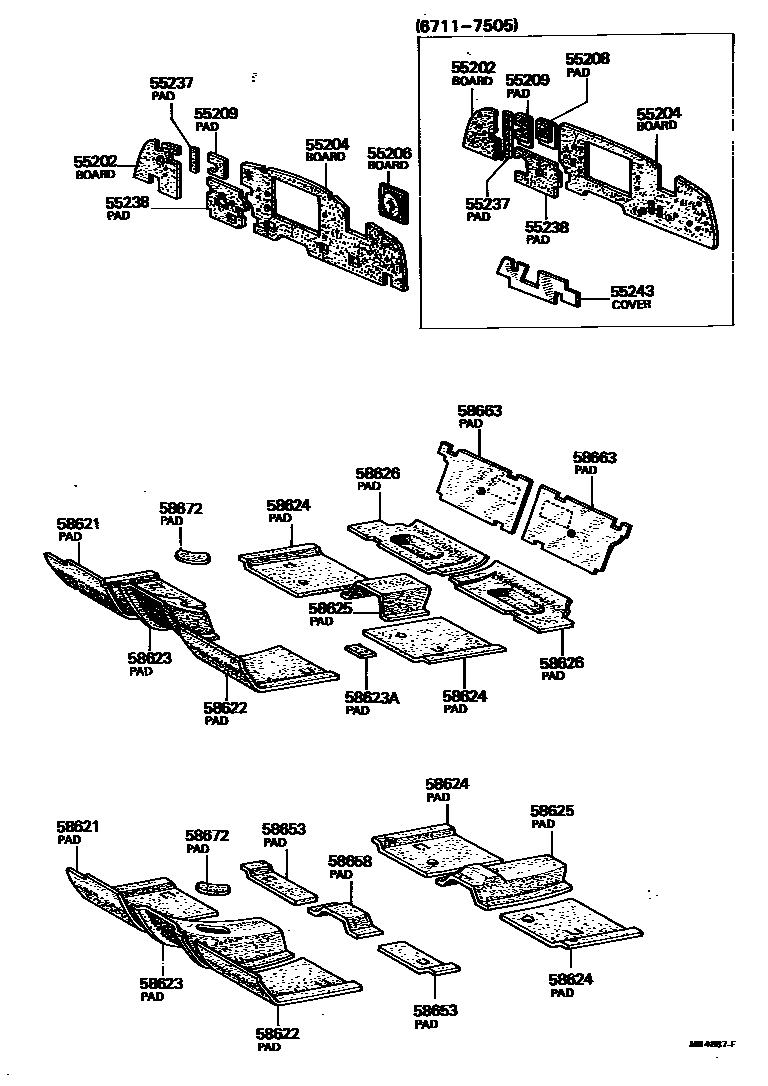

Parts diagram

55202BOARD SUB-ASSY, DASH PANEL SILENCER, RH

55204BOARD SUB-ASSY, DASH PANEL SILENCER, LH

55206BOARD SUB-ASSY, DASH SILENCER HARNESS

55208PAD SUB-ASSY, DASH PANEL SILENCER, CENTER NO.1

55209PAD SUB-ASSY, DASH PANEL SILENCER, CENTER NO.2

55237PAD, DASH PANEL SILENCER, CENTER NO.3

55238PAD, DASH PANEL SILENCER, CENTER NO.3

55243COVER, DASH PANEL SILENCER, CENTER NO.3

58621PAD, FLOOR SILENCER, FRONT RH

58622PAD, FLOOR SILENCER, FRONT LH

58623PAD, FLOOR SILENCER, FRONT CENTER

58623APAD, FRONT FLOOR SILENCER, CENTER

58624PAD, FLOOR SILENCER, REAR SIDE

58625PAD, FLOOR SILENCER, REAR CENTER

58626PAD, FLOOR SILENCER, REAR

58653PAD, FRONT FLOOR SILENCER, CENTER NO.2

58658PAD, SHAFT TUNNEL SILENCER, FRONT NO.2

58663PAD, REAR SEATBACK SILENCER

58672PAD, SHIFT LEVER HOLE COVER SILENCER

19 parts on this diagram · 1 diagram in section

DASH SILENCER BOARD & FLOOR SILENCER PAD for Toyota 271120

This section contains 19 genuine Toyota parts for the DASH SILENCER BOARD & FLOOR SILENCER PAD system of the Toyota 271120. Key components include: BOARD SUB-ASSY, DASH PANEL SILENCER, RH, BOARD SUB-ASSY, DASH PANEL SILENCER, LH, BOARD SUB-ASSY, DASH SILENCER HARNESS, PAD SUB-ASSY, DASH PANEL SILENCER, CENTER NO.1, PAD SUB-ASSY, DASH PANEL SILENCER, CENTER NO.2.
