Toyota CARINA ED 251 — HEADLAMP

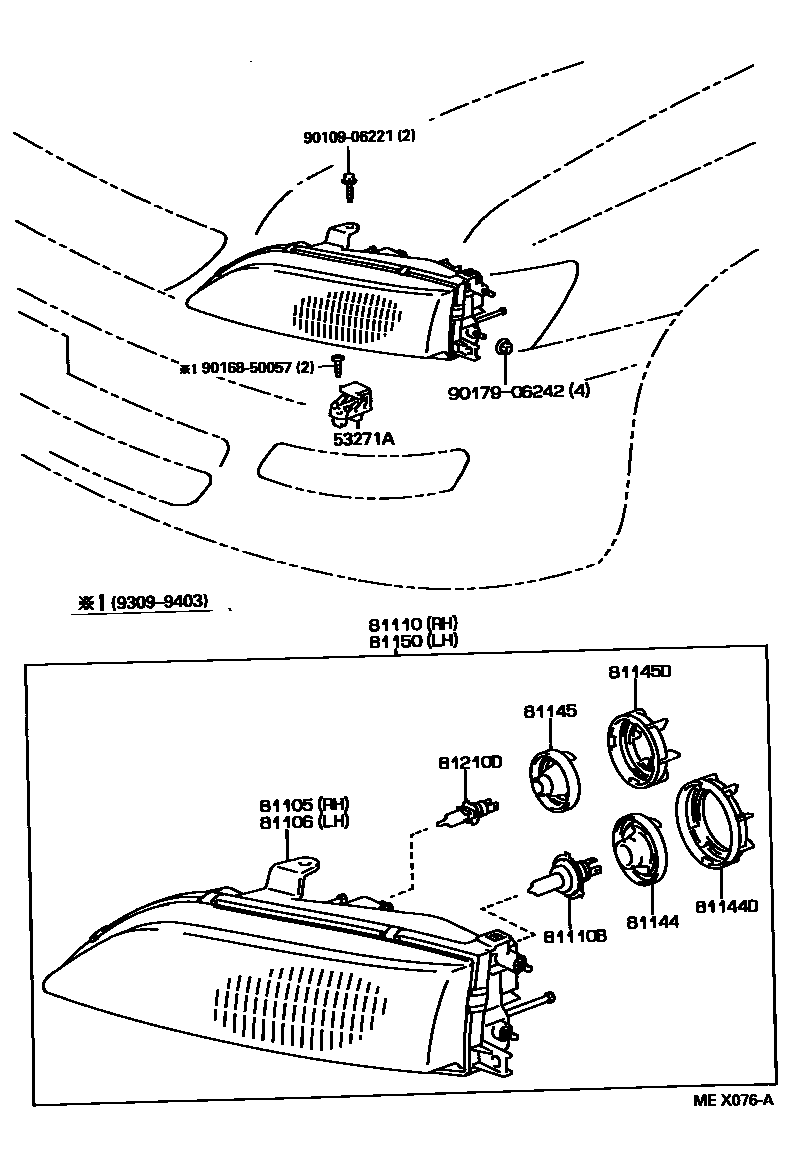

Parts diagram
53271ABRACKET, HEADLAMP MOUNTING
81105HOUSING SUB-ASSY, HEADLAMP, RH
81105-2B810
81106HOUSING SUB-ASSY, HEADLAMP, LH
81106-2B810
81110HEADLAMP ASSY, RH
90981-22003
90981-22007
81110-2B810
81110BBULB(FOR HEADLAMP, NO.1)
81144COVER, HEADLAMP, NO.1
81112-22650
81139-22650
81144DCAP, HEADLAMP LOCKING
81145COVER, HEADLAMP, NO.2
81139-2B810
81112-2B810
81145DCAP, HEADLAMP LOCKING NO.2
81150HEADLAMP ASSY, LH
81150-2B810
81210DBULB, FOG LAMP
9010906221
90109-06221
9016850057
90168-50057
9017906242
90179-06242

14 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota CARINA ED 251

This section contains 14 genuine Toyota parts for the HEADLAMP system of the Toyota CARINA ED 251. Key components include: BRACKET, HEADLAMP MOUNTING, HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1).
