Toyota WINDOM 282 — INTERIOR LAMP

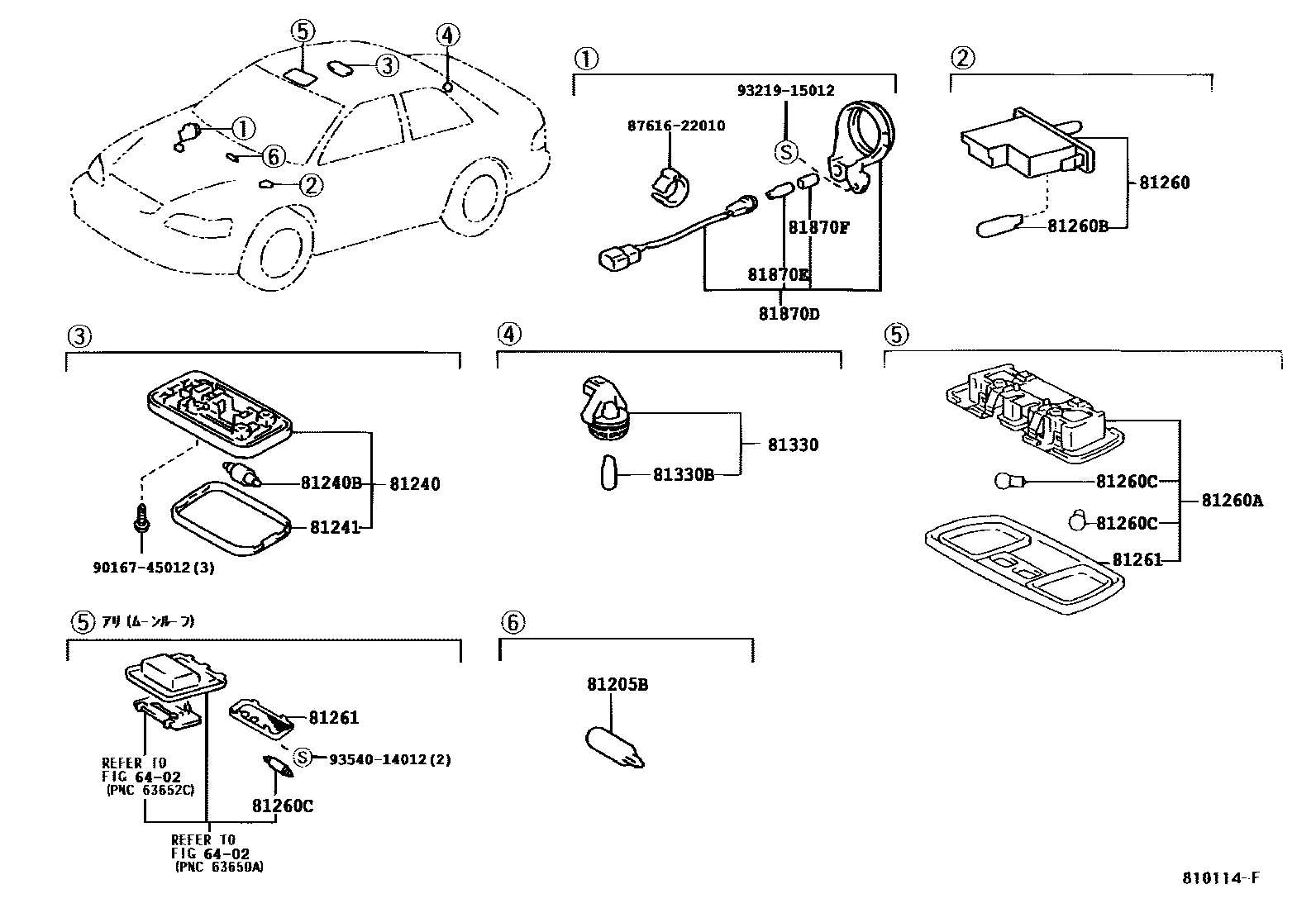

Parts diagram
6402ROOF HEADLINING & SILENCER PAD
→ Go to FIG 64-02
81205BBULB, ASH RECEPTACLE LAMP
81240LAMP ASSY, ROOM, NO.1
90981-14004
81240-32031
81240BBULB, ROOM LAMP, NO.1
81241LENS, ROOM LAMP, NO.1
81241-32031
81260LAMP ASSY, GLOVE BOX
90981-11018
90981-12020
81260-33030
90084-98049
81260-32081
81260-22180
81260ALAMP ASSY, MAP
81260BBULB(FOR GLOVE BOX)
81260CBULB(FOR MAP LAMP)
81261LENS AND COVER, MAP LAMP
81231-AA010
81261-32081
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
90981-11020
81330-12020
81330BBULB, LUGGAGE COMPARTMENT LAMP
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
81870FCAP, KEY CYLINDER LAMP BULB
8761622010CLAMP, COOLING UNIT CASE
87616-22010
9016745012
90167-45012
9321915012
93219-15012
9354014012
93540-14012

19 parts on this diagram · 2 diagrams in section

INTERIOR LAMP for Toyota WINDOM 282

This section contains 23 genuine Toyota parts for the INTERIOR LAMP system of the Toyota WINDOM 282. Key components include: ROOF HEADLINING & SILENCER PAD, BULB, ASH RECEPTACLE LAMP, LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1.
