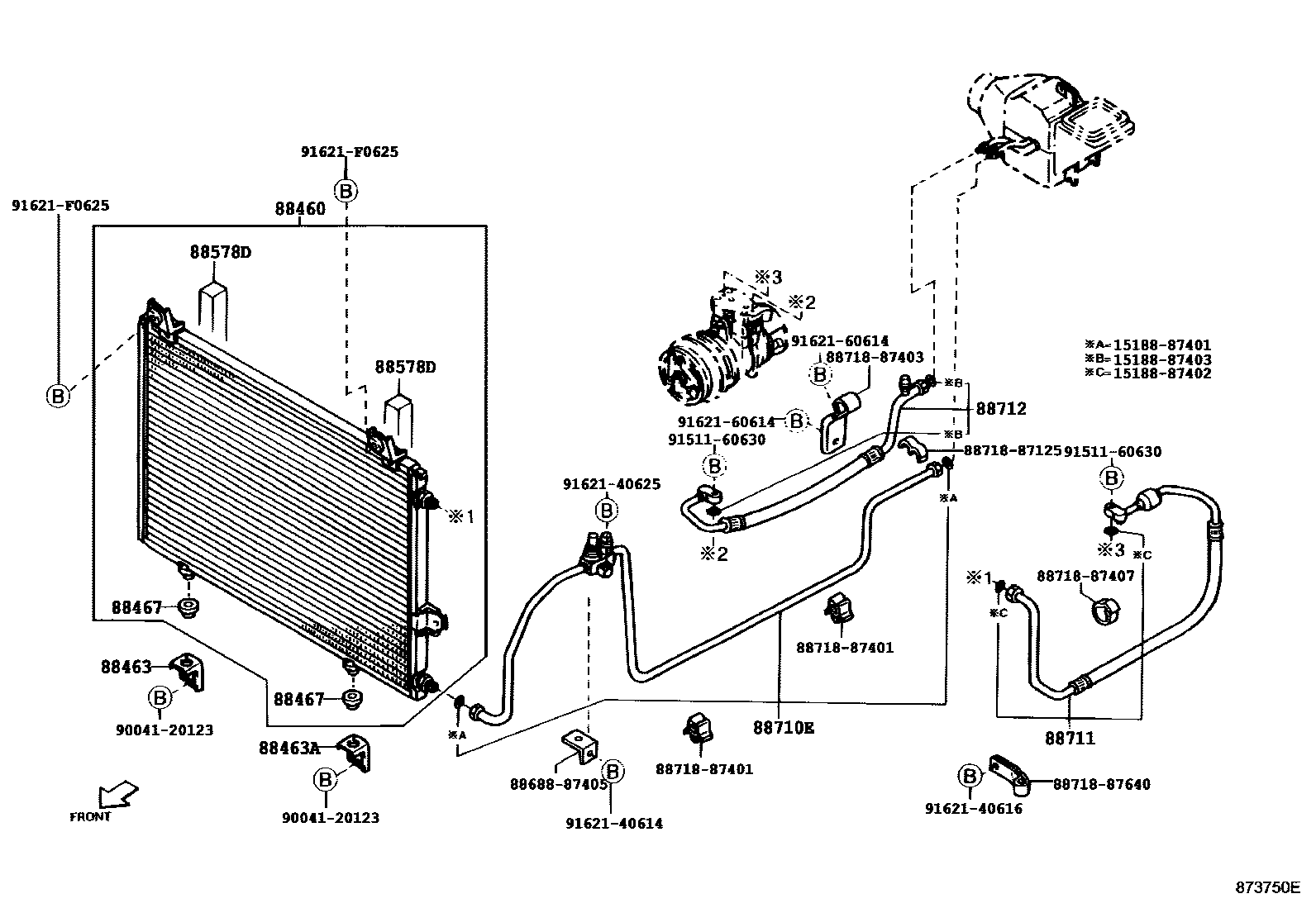

Toyota 661130 — HEATING & AIR CONDITIONING - COOLER PIPING
88463ABRACKET, COOLER CONDENSER, NO.2
88467CUSHION, COOLER CONDENSER, NO.1
88578DPACKING, COOLER PIPE, NO.1
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
1518887401GASKET, OIL PUMP
1518887402GASKET, OIL PUMP
1518887403GASKET, OIL PUMP
8868887405BRACKET, COOLER DIAPHRAGM
8871887125PIPE, COOLER REFRIGERANT SUCTION, NO.2
8871887401PIPE, COOLER REFRIGERANT SUCTION, NO.2
8871887403PIPE, COOLER REFRIGERANT SUCTION, NO.2
8871887407PIPE, COOLER REFRIGERANT SUCTION, NO.2
8871887640PIPE, COOLER REFRIGERANT SUCTION, NO.2
9004120123
9151160630
9162140614
9162140616
9162140625
9162160614
91621F0625
24 parts on this diagram · 2 diagrams in section
HEATING & AIR CONDITIONING - COOLER PIPING for Toyota 661130
This section contains 26 genuine Toyota parts for the HEATING & AIR CONDITIONING - COOLER PIPING system of the Toyota 661130. Key components include: CONDENSER ASSY, COOLER, BRACKET, COOLER CONDENSER, NO.1, BRACKET, COOLER CONDENSER, NO.2, CUSHION, COOLER CONDENSER, NO.1, PACKING, COOLER PIPE, NO.1.
