Toyota CALYA 136 — ALTERNATOR

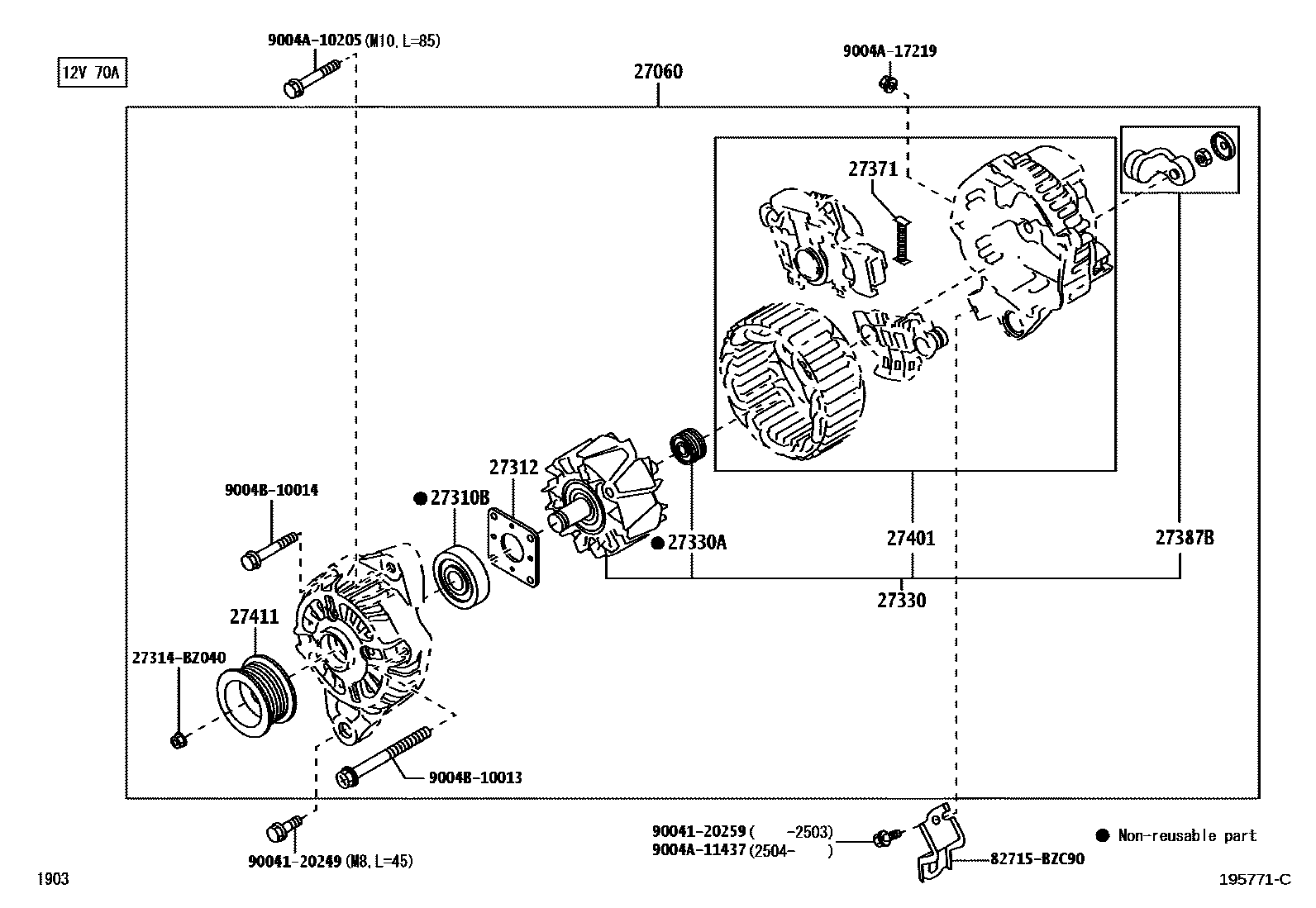

Parts diagram
27060ALTERNATOR ASSY, W/REGULATOR
27060-BZ360
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27312PLATE, RETAINER
27312-BZ040
27330ROTOR ASSY, ALTERNATOR
9004B-37014
27330-BZ070
27330ABEARING(FOR ALTERNATOR ROTOR)
27371BRUSH, ALTERNATOR
27371-BZ020
27387BINSULATOR, ALTERNATOR TERMINAL
27401STATOR SUB-ASSY ALTERNATOR W/RECTIFIER
27401-BZ030
27401-BZ031
27411PULLEY, ALTERNATOR
27411-BZ110
27314BZ040
27314-BZ040
82715BZC90BRACKET,WIRING HARNESS CLAMP
82715-BZC90
9004120249
90041-20249
9004120259
90041-20259
9004A10205
9004A-10205
9004A11437
9004A-11437
9004A17219
9004A-17219
9004B10013
9004B-10013
9004B10014
9004B-10014

18 parts on this diagram · 1 diagram in section

ALTERNATOR for Toyota CALYA 136

This section contains 18 genuine Toyota parts for the ALTERNATOR system of the Toyota CALYA 136. Key components include: ALTERNATOR ASSY, W/REGULATOR, BEARING(FOR ALTERNATOR DRIVE END FRAME), PLATE, RETAINER, ROTOR ASSY, ALTERNATOR, BEARING(FOR ALTERNATOR ROTOR).
