Toyota 528220 — FRONT SEAT & SEAT TRACK

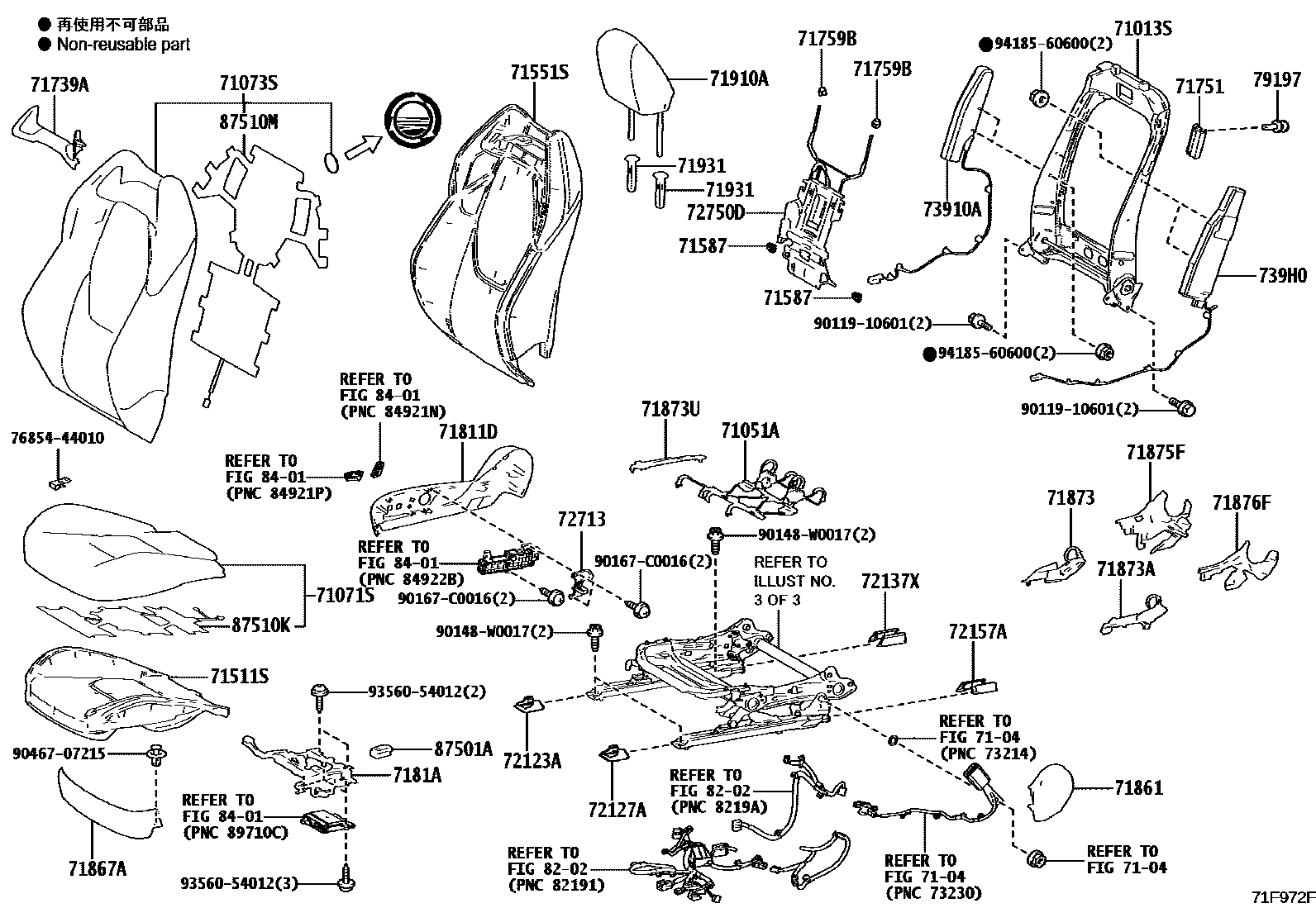

Parts diagram
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71587PROTECTOR, FRONT SEATBACK EDGE
71587-F4010
71739ABEZEL, FRONT SEATBACK
71751HANGER, SEAT COVER
71751-0K070
71759BHOOK, FRONT SEATBACK
71811DSHIELD, FRONT SEAT CUSHION, RH
7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH
7181A-F4010
7181A-F4050
71861SHIELD, FRONT SEAT CUSHION, INNER RH
71861-F4010
71861-F4030
71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-F4010
71873-F4020
71873-F4100
71873-F4110
71873ASHIELD, FRONT SEAT CUSHION, LOWER
71873USHIELD, FRONT SEAT CUSHION, LOWER RH
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71910AHEADREST ASSY, FRONT SEAT
71931SUPPORT, FRONT SEAT HEADREST
71930-F4010
71931-F4010
72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
72137XCOVER, SEAT TRACK BRACKET, OUTER REAR RH
72157ACOVER, SEAT TRACK BRACKET, INNER RH
72713BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH
72713-F4010
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
73910AAIRBAG ASSY, FRONT SEAT, RH
739H0AIRBAG ASSY, FRONT SEAT CENTER, RH
739H0-F4011
739H0-F4021
79197HOOK, SEATBACK COVER
79197-0K010
8202WIRING & CLAMP
→ Go to FIG 82-02
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
87501ACONTROL SUB-ASSY, SEAT HEATER, RH
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
87510MHEATER ASSY, FRONT SEATBACK, RH
7685444010RETAINER, FRONT SPOILER, UPPER LH
76854-44010
9011910601
90119-10601
90148W0017
90148-W0017
90167C0016
90167-C0016
9046707215
90467-07215
9356054012
93560-54012
9418560600
94185-60600

43 parts on this diagram · 8 diagrams in section

FRONT SEAT & SEAT TRACK for Toyota 528220

This section contains 94 genuine Toyota parts for the FRONT SEAT & SEAT TRACK system of the Toyota 528220. Key components include: FRAME SUB-ASSY, FRONT SEATBACK, RH, FRAME SUB-ASSY, FRONT SEATBACK, LH, SEAT BELT & CHILD RESTRAINT SEAT, SPRING SUB-ASSY, FRONT SEAT CUSHION, RH, SPRING SUB-ASSY, FRONT SEAT CUSHION, LH.
