Toyota 528220 — FRONT BUMPER & BUMPER STAY

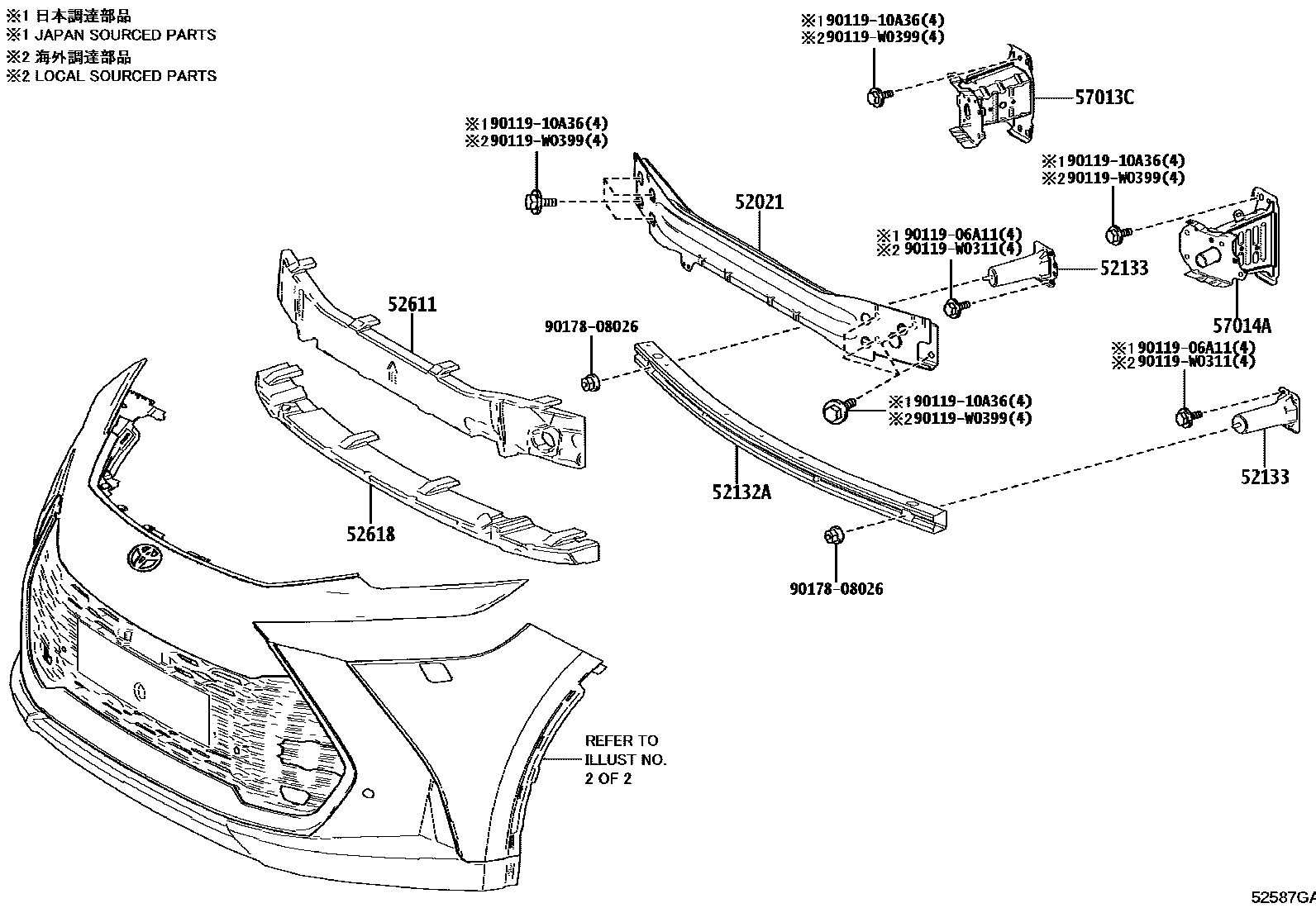

Parts diagram
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-F4030
52132AREINFORCEMENT, FRONT BUMPER, NO.2
52133REINFORCEMENT, FRONT BUMPER
52133-02110
52611ABSORBER, FRONT BUMPER ENERGY
52611-F4110
52618ABSORBER, FRONT BUMPER, LOWER
52618-F4110
57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
9011906A11
90119-06A11
9011910A36
90119-10A36
90119W0311
90119-W0311
90119W0399
90119-W0399
9017808026
90178-08026

12 parts on this diagram · 4 diagrams in section

FRONT BUMPER & BUMPER STAY for Toyota 528220

This section contains 36 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota 528220. Key components include: SUSPENSION CROSSMEMBER & UNDER COVER, GROMMET, NO.1, REINFORCEMENT SUB-ASSY, FRONT BUMPER, EXTENSION, FRONT BUMPER, COVER, FRONT BUMPER.
