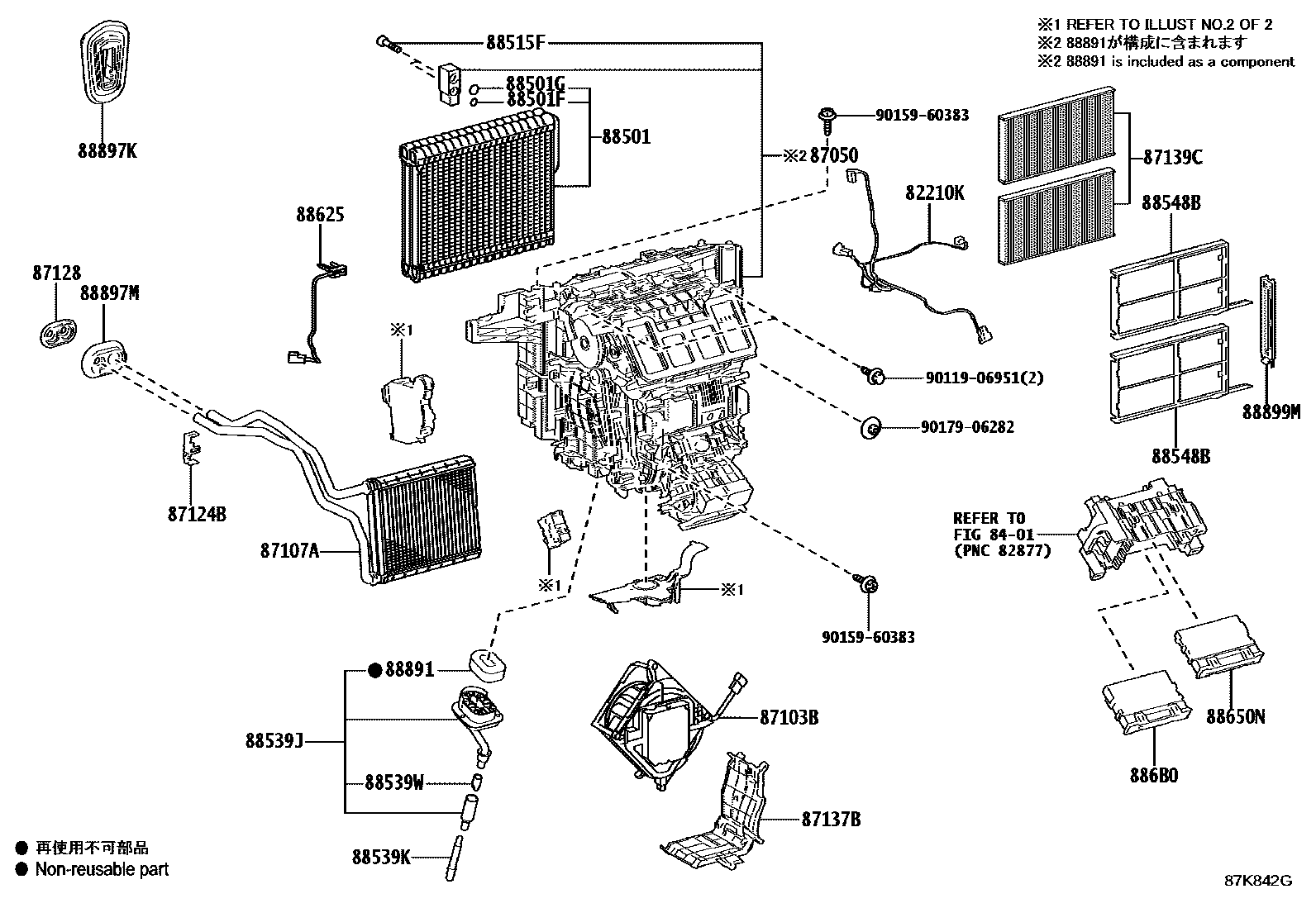

Toyota 561210 — HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
8401SWITCH & RELAY & COMPUTER
87050RADIATOR ASSY, AIR CONDITIONER
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87124BCLAMP, HEATER
87128GROMMET, HEATER
87137BCOVER, HEATER BLOWER
87139CFILTER, CLEAN AIR
88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
88515FBOLT(FOR COOLER EXPANSION VALVE)
88539JHOSE, DRAIN COOLER
88539KHOSE, DRAIN COOLER
88539WHOSE, DRAIN COOLER, NO.2
88548BCASE, AIR FILTER
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
886B0COMPUTER ASSY, HEAT MANAGEMENT
88891PACKING (FOR COOLER)
88897KGROMMET, (FOR COOLER PIPE)
88897MGROMMET (FOR HEATER PIPE)
88899MPLATE, COVER(FOR AIR FILTER)
9011906951
9015960383
9017906282
27 parts on this diagram · 4 diagrams in section
HEATING & AIR CONDITIONING - COOLER UNIT for Toyota 561210
This section contains 31 genuine Toyota parts for the HEATING & AIR CONDITIONING - COOLER UNIT system of the Toyota 561210. Key components include: HARNESS ASSY, AIR CONDITIONER, SWITCH & RELAY & COMPUTER, RADIATOR ASSY, AIR CONDITIONER, DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1, DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2.
