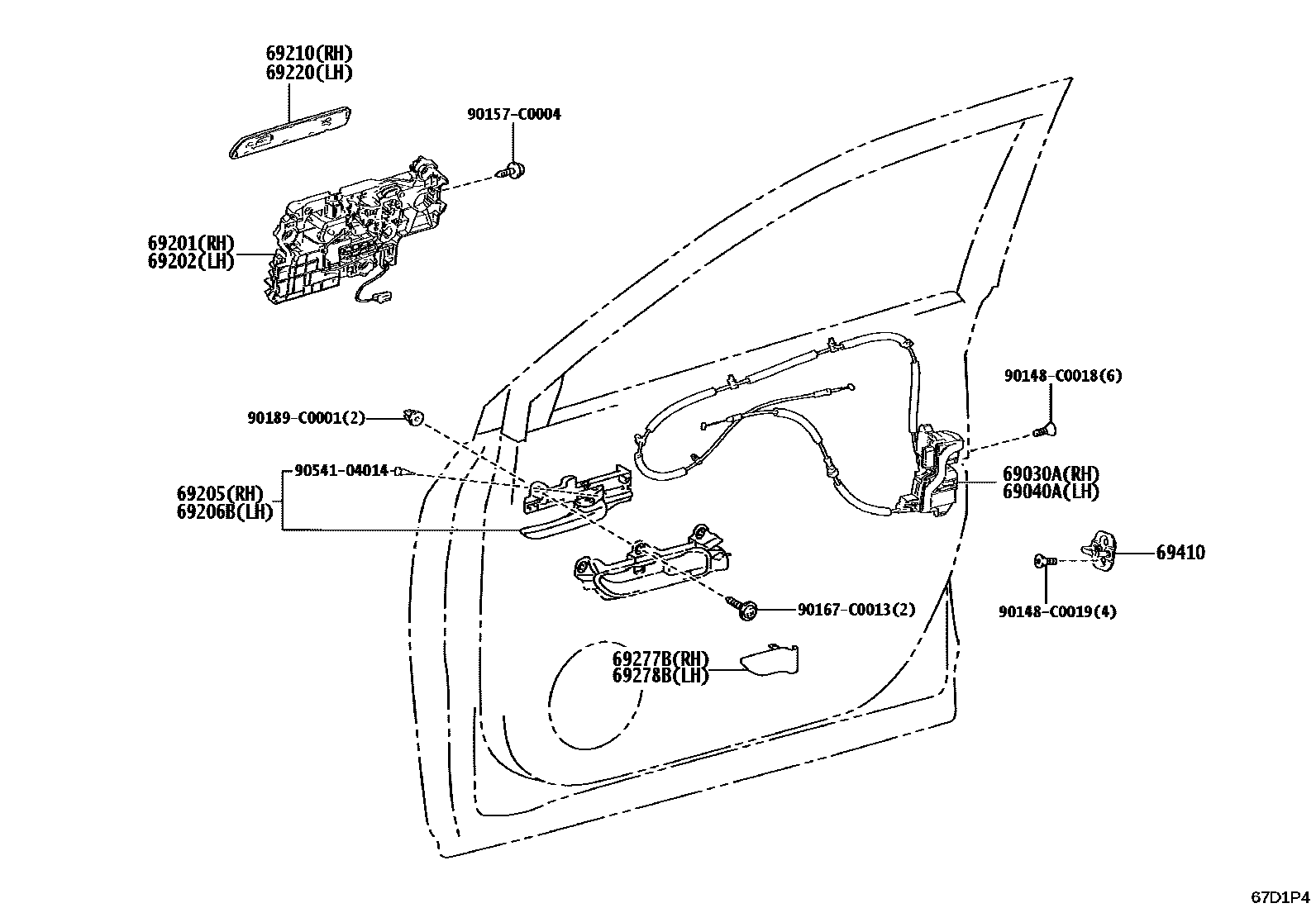

Toyota 669310 — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
90148C0018
90148C0019
90157C0004
90167C0013
90189C0001
9054104014
17 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota 669310
This section contains 17 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota 669310. Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, HANDLE SUB-ASSY, DOOR OUTSIDE, RH, HANDLE SUB-ASSY, DOOR OUTSIDE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH.
