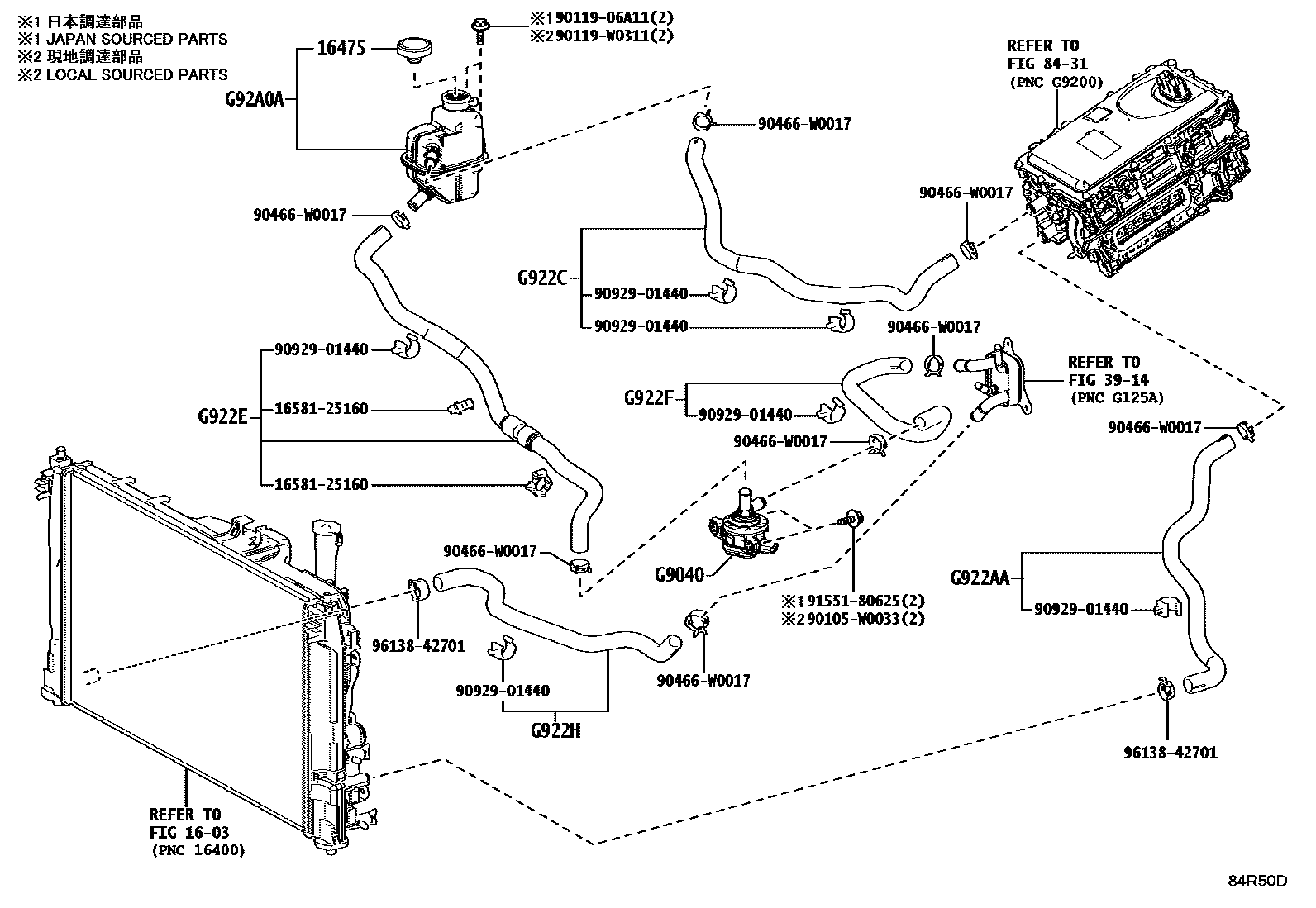

Toyota 101530 — INVERTER COOLING
1603RADIATOR & WATER OUTLET
16475CAP, RESERVE TANK
3914OIL COOLER & TUBE (HEV OR BEV OR FCEV)
8431HEV INVERTER
G9040INVERTER WATER PUMP ASSY(W/MOTOR)
G922AAHOSE, INVERTER COOLING INLET, NO.1
G922CHOSE, INVERTER COOLING OUTLET, NO.1
G922EHOSE, HYBRID WATER PUMP INLET
G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1
G922HHOSE, HYBRID RADIATOR INLET
G92A0ATANK ASSY, INVERTER RESERVE
1658125160CLAMP, HOSE(FOR WATER HOSE)
90105W0033
9011906A11
90119W0311
90466W0017
9092901440
9155180625
9613842701
19 parts on this diagram · 1 diagram in section
INVERTER COOLING for Toyota 101530
This section contains 19 genuine Toyota parts for the INVERTER COOLING system of the Toyota 101530. Key components include: RADIATOR & WATER OUTLET, CAP, RESERVE TANK, OIL COOLER & TUBE (HEV OR BEV OR FCEV), HEV INVERTER, INVERTER WATER PUMP ASSY(W/MOTOR).
