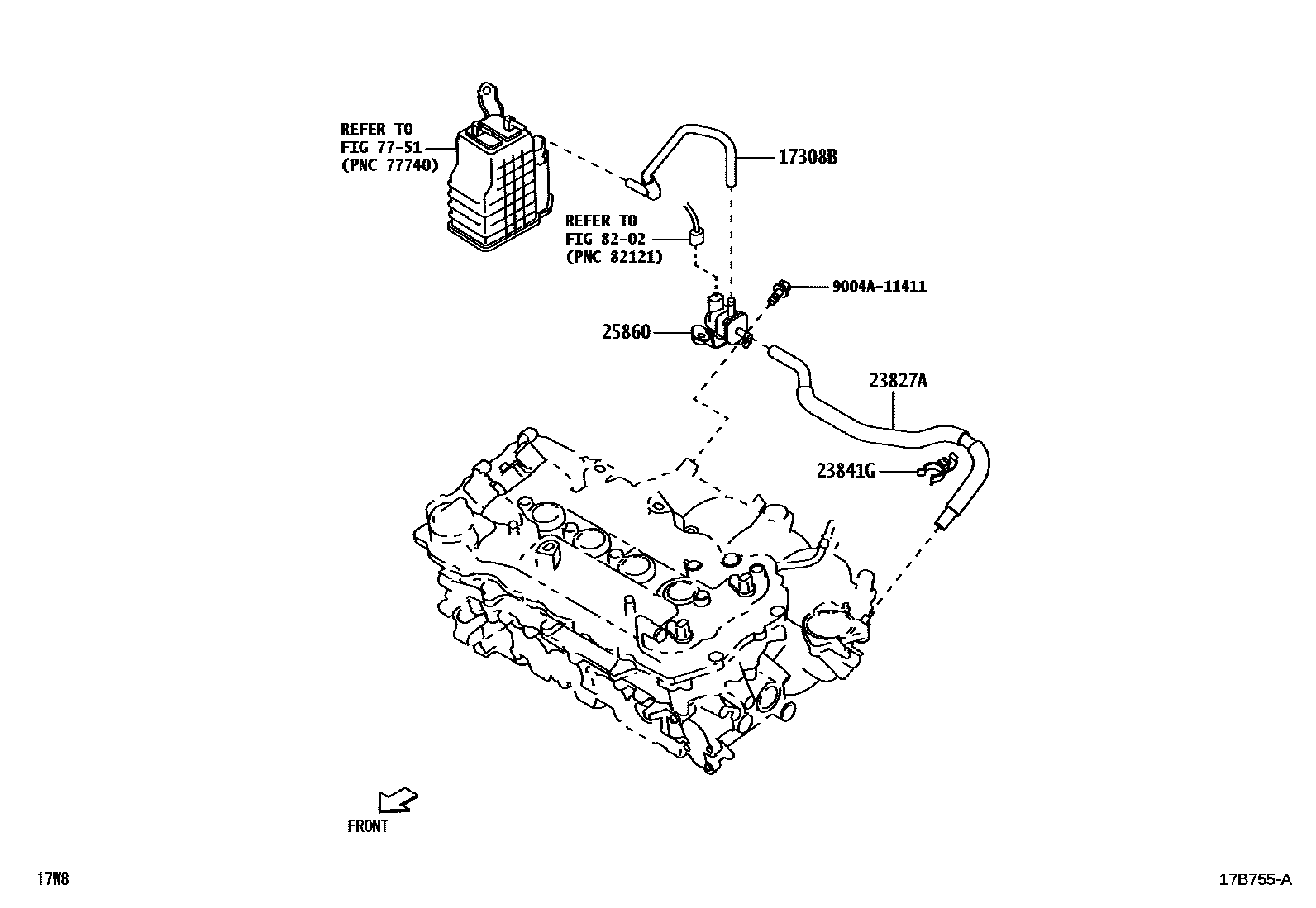

Toyota 613230 — VACUUM PIPING
17308BHOSE SUB-ASSY, VACUUM
23827AHOSE, FUEL VAPOR FEED, NO.2
23841GCLAMP, FUEL HOSE
7751FUEL TANK & TUBE
8202WIRING & CLAMP
9004A11411
7 parts on this diagram · 2 diagrams in section
VACUUM PIPING for Toyota 613230
This section contains 12 genuine Toyota parts for the VACUUM PIPING system of the Toyota 613230. Key components include: HOSE SUB-ASSY, VACUUM, HOSE, AIR, NO.1, HOSE, FUEL VAPOR FEED, NO.2, CLAMP, FUEL HOSE, VALVE ASSY, VACUUM SWITCHING, NO.1.
