Toyota 613230 — FRONT AXLE ARM & STEERING KNUCKLE

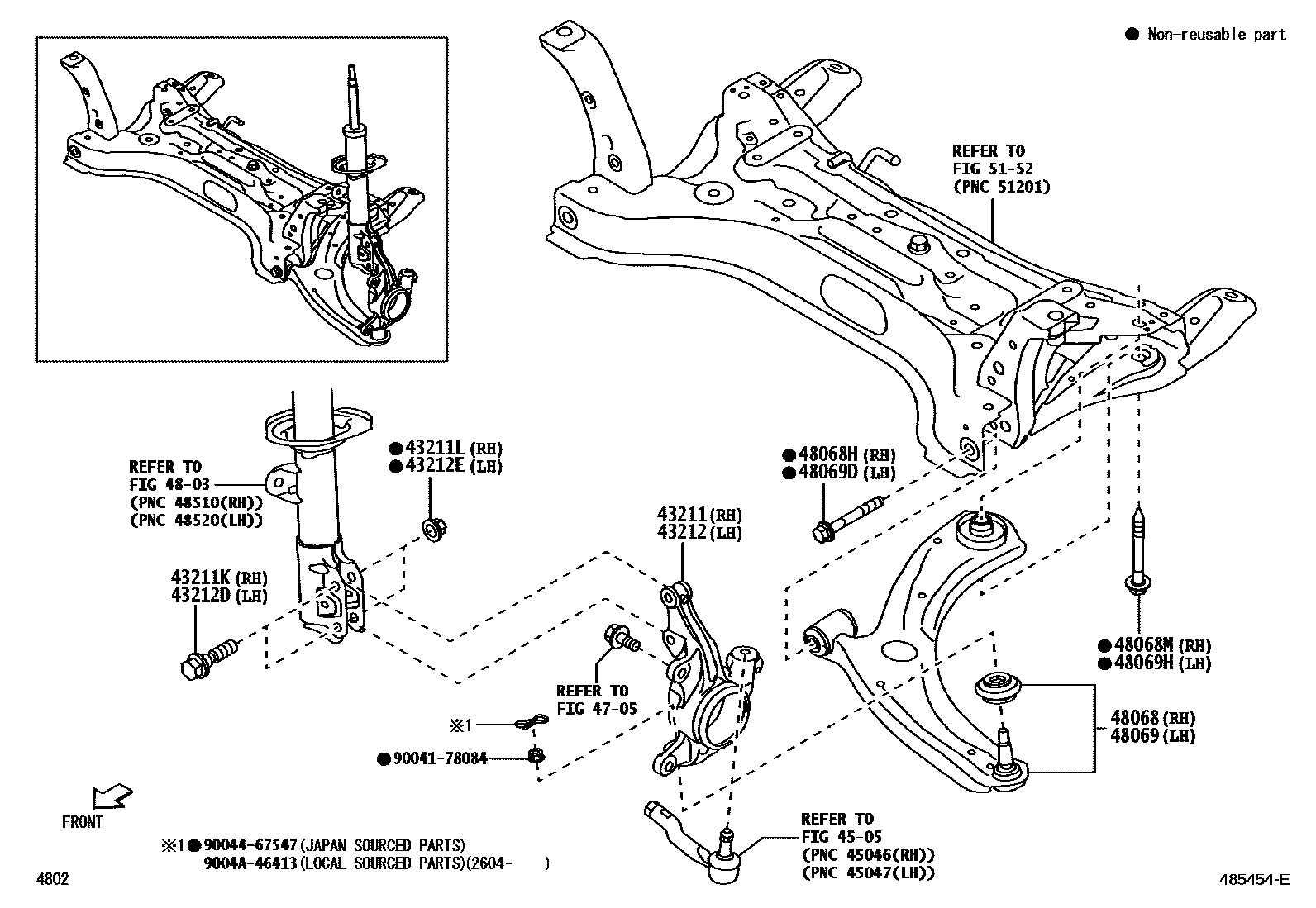

Parts diagram

43211KNUCKLE, STEERING, RH

43211KBOLT (FOR STEERING KNUCKLE RH)

43211LNUT (FOR STEERING KNUCKLE RH)

43212KNUCKLE, STEERING, LH

43212DBOLT (FOR STEERING KNUCKLE LH)

43212ENUT (FOR STEERING KNUCKLE LH)

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

4705FRONT DISC BRAKE CALIPER & DUST COVER

→ Go to FIG 47-05

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

9004178084

9004467547

9004A46413

19 parts on this diagram · 1 diagram in section

FRONT AXLE ARM & STEERING KNUCKLE for Toyota 613230

This section contains 19 genuine Toyota parts for the FRONT AXLE ARM & STEERING KNUCKLE system of the Toyota 613230. Key components include: KNUCKLE, STEERING, RH, BOLT (FOR STEERING KNUCKLE RH), NUT (FOR STEERING KNUCKLE RH), KNUCKLE, STEERING, LH, BOLT (FOR STEERING KNUCKLE LH).
