Toyota 613230 — SEAT BELT

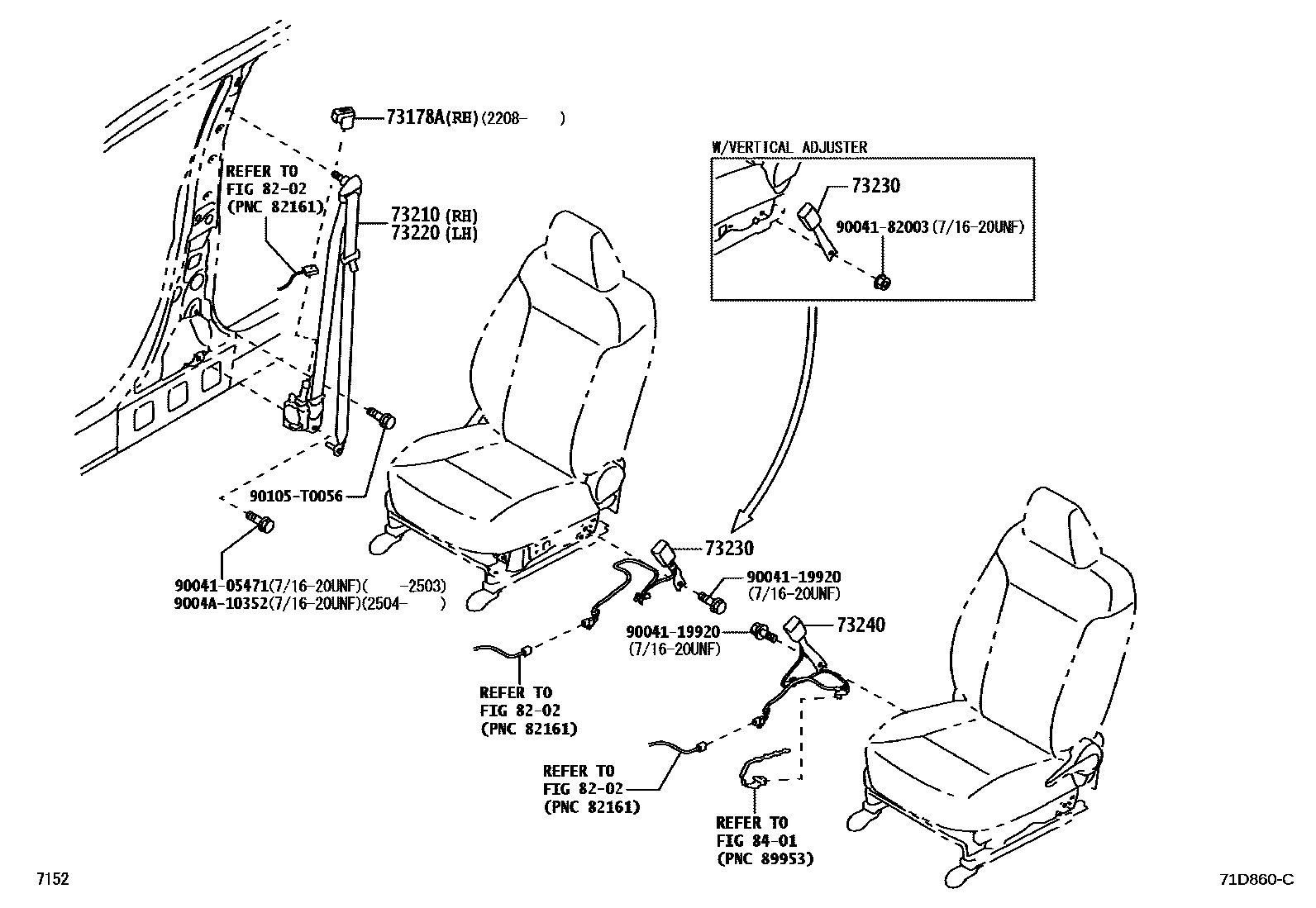

Parts diagram
73178ACAP, SEAT BELT ANCHOR COVER
73210BELT ASSY, FRONT SEAT OUTER, RH
73210-BZ590
73220BELT ASSY, FRONT SEAT OUTER, LH
73220-BZ630
73230BELT ASSY, FRONT SEAT INNER, RH
73230-BZB70
73230-BZB80
73230-BZC00
73230-BZF20
73240BELT ASSY, FRONT SEAT INNER, LH
73230-BZB70
73230-BZB80
73230-BZB90
73230-BZC00
73230-BZF10
73230-BZG10
8202WIRING & CLAMP
→ Go to FIG 82-02
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
9004105471
90041-05471
9004119920
90041-19920
9004182003
90041-82003
9004A10352
9004A-10352
90105T0056
90105-T0056

12 parts on this diagram · 6 diagrams in section

SEAT BELT for Toyota 613230

This section contains 34 genuine Toyota parts for the SEAT BELT system of the Toyota 613230. Key components include: CAP, SEAT BELT ANCHOR COVER, BELT ASSY, FRONT SEAT OUTER, RH, PLATE, FRONT SEAT BELT ANCHOR, BELT ASSY, FRONT SEAT OUTER, LH, BELT ASSY, FRONT SEAT INNER, RH.
