Toyota 613230 — CLUTCH PEDAL & FLEXIBLE HOSE

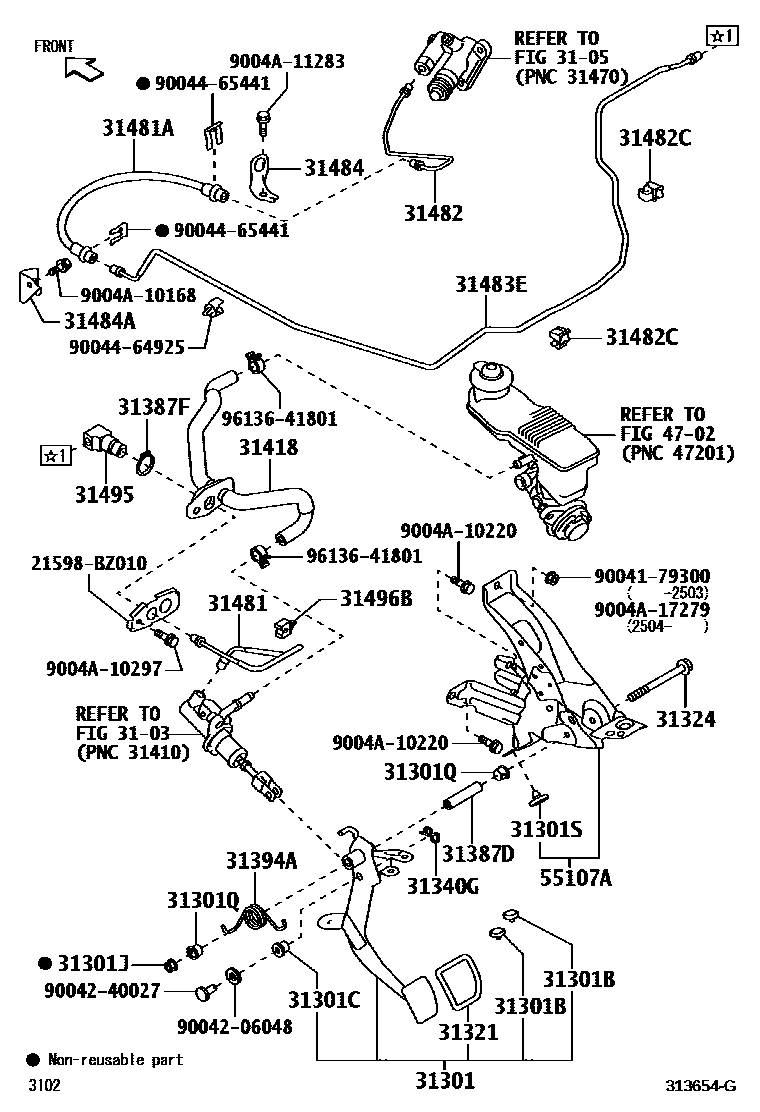

Parts diagram

3103CLUTCH MASTER CYLINDER

→ Go to FIG 31-03

3105CLUTCH RELEASE CYLINDER

→ Go to FIG 31-05

31301PEDAL SUB-ASSY, CLUTCH

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

31301CBUSH(FOR CLUTCH PEDAL)

31301JNUT(FOR CLUTCH PEDAL STOPPER)

31301QBUSH(FOR CLUTCH PEDAL SPRING)

31301SCUSHION, NO.2(FOR CLUTCH PEDAL)

31321PAD, CLUTCH PEDAL

31324SHAFT, CLUTCH PEDAL

31340GCLIP(FOR CLUTCH RELEASE CABLE)

31387DSPACER(FOR CLUTCH RELEASE SECTOR)

31387FRING, SNAP

31394ASPRING, PEDAL W/HOOK

31418HOSE, CLUTCH

31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE

31481AHOSE, CLUTCH, NO.1

31482TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE

31482CCLAMP(FOR CLUTCH TUBE)

31483ETUBE, BLEEDER CLUTCH RELEASE

31484BRACKET, FLEXIBLE HOSE(FOR CLUTCH)

31484ABRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)

31495WAY, CLUTCH TUBE

31496BCLAMP, CLUTCH TUBE

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

21598BZ010RETAINER(FOR INJECTION PUMP BALL BEARING)

9004179300

9004206048

9004240027

9004464925

9004465441

9004A10168

9004A10220

9004A10297

9004A11283

9004A17279

9613641801

38 parts on this diagram · 2 diagrams in section

CLUTCH PEDAL & FLEXIBLE HOSE for Toyota 613230

This section contains 38 genuine Toyota parts for the CLUTCH PEDAL & FLEXIBLE HOSE system of the Toyota 613230. Key components include: CLUTCH MASTER CYLINDER, CLUTCH RELEASE CYLINDER, PEDAL SUB-ASSY, CLUTCH, CUSHION, NO.1(FOR CLUTCH PEDAL), BUSH(FOR CLUTCH PEDAL).
