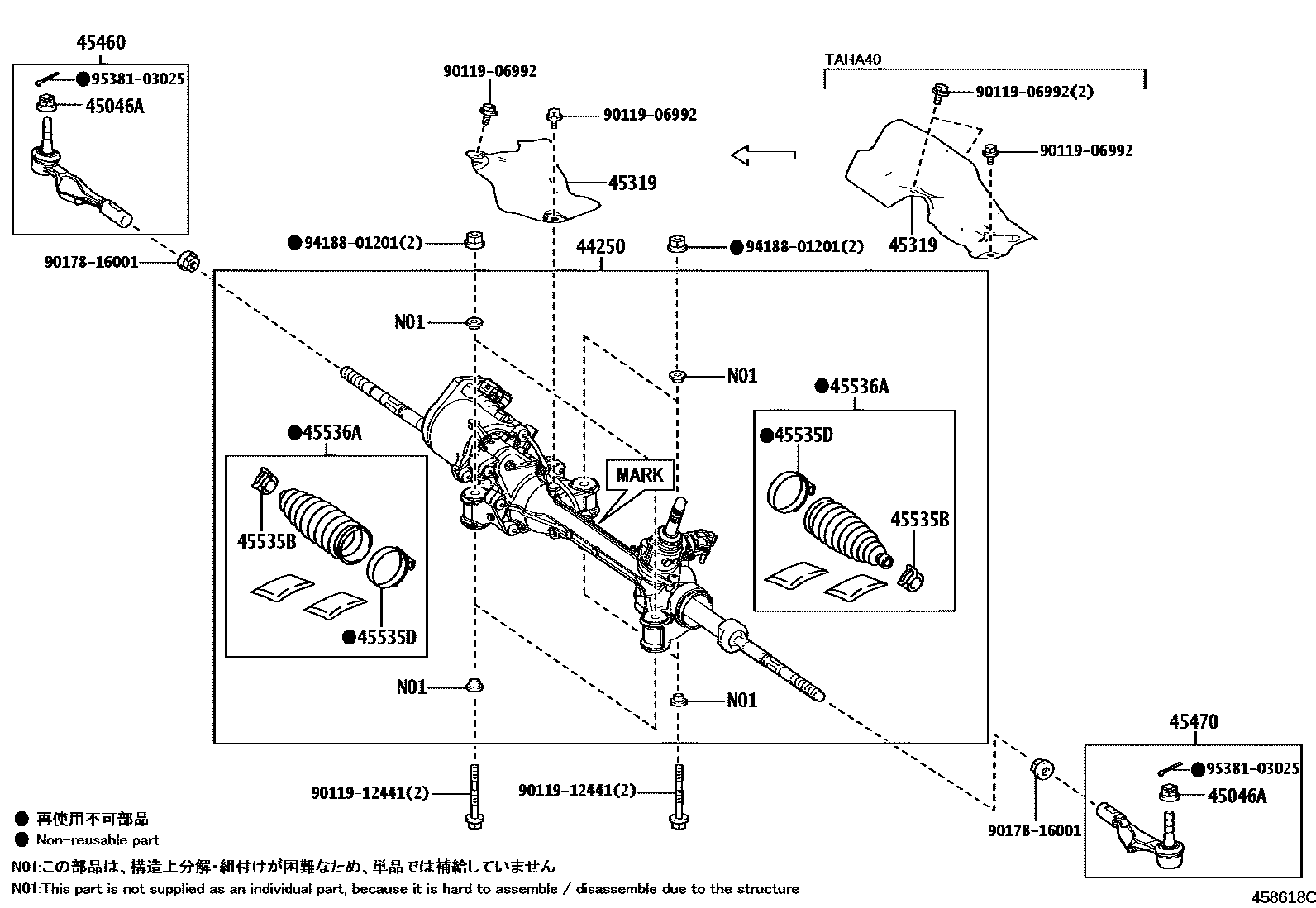

Toyota 713250 — FRONT STEERING GEAR & LINK
45046ANUT, CASTLE(FOR TIE ROD END)
45460ROD ASSY, TIE, RH
45470ROD ASSY, TIE, LH
45535BCLIP(FOR STEERING RACK BOOT)
45535DCLAMP(FOR STEERING RACK BOOT NO.1)
45536ACLAMP(FOR STEERING RACK BOOT NO.2)
9011906992
9011912441
9017816001
9418801201
9538103025
13 parts on this diagram · 2 diagrams in section
FRONT STEERING GEAR & LINK for Toyota 713250
This section contains 13 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota 713250. Key components include: GEAR ASSY, POWER STEERING(FOR RACK & PINION), NUT, CASTLE(FOR TIE ROD END), INSULATOR, STEERING GEAR HEAT, ROD ASSY, TIE, RH, ROD ASSY, TIE, LH.
