Toyota ALPHARD G/V 713 — VACUUM PIPING

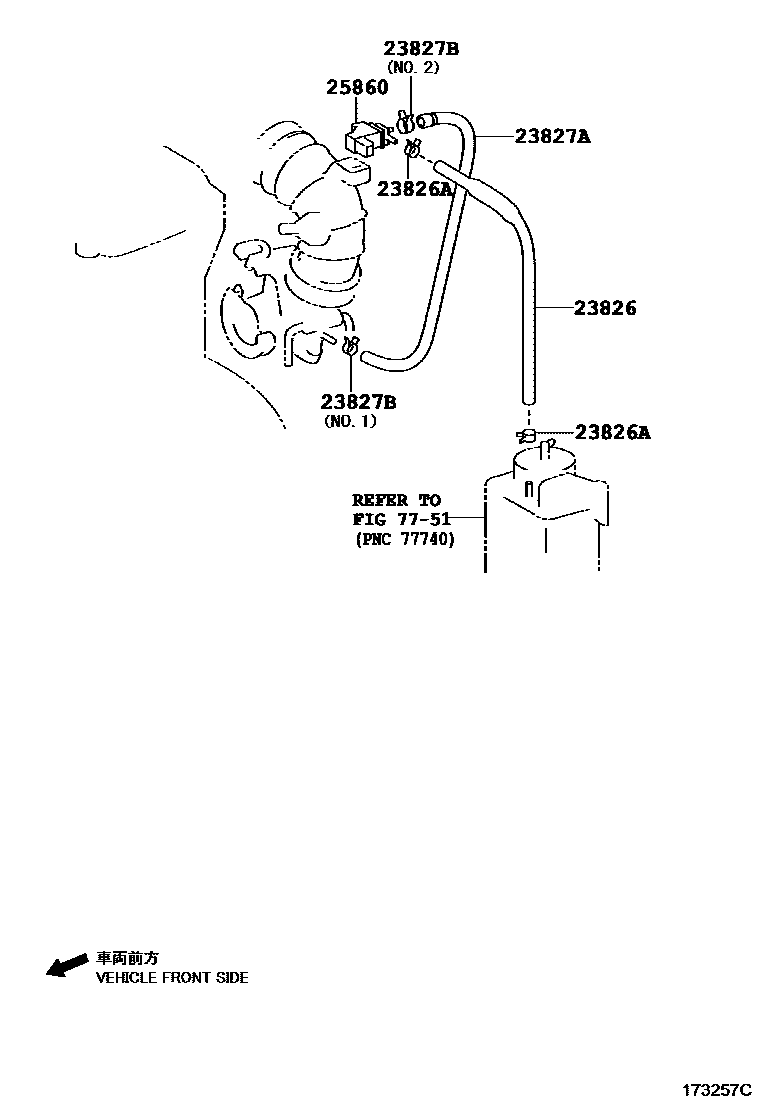

Parts diagram

23826HOSE, FUEL VAPOR FEED, NO.1

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

23827AHOSE, FUEL VAPOR FEED, NO.2

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

25860VALVE ASSY, VACUUM SWITCHING, NO.1

7751FUEL TANK & TUBE

→ Go to FIG 77-51

6 parts on this diagram · 3 diagrams in section

VACUUM PIPING for Toyota ALPHARD G/V 713

This section contains 42 genuine Toyota parts for the VACUUM PIPING system of the Toyota ALPHARD G/V 713. Key components include: MOUNTING, MANIFOLD, AIR CLEANER, PIPE SUB-ASSY, AIR, NO.1, HOSE SUB-ASSY, VACUUM(FOR IDLE-UP).
