Toyota ALPHARD G/V 713 — MANIFOLD

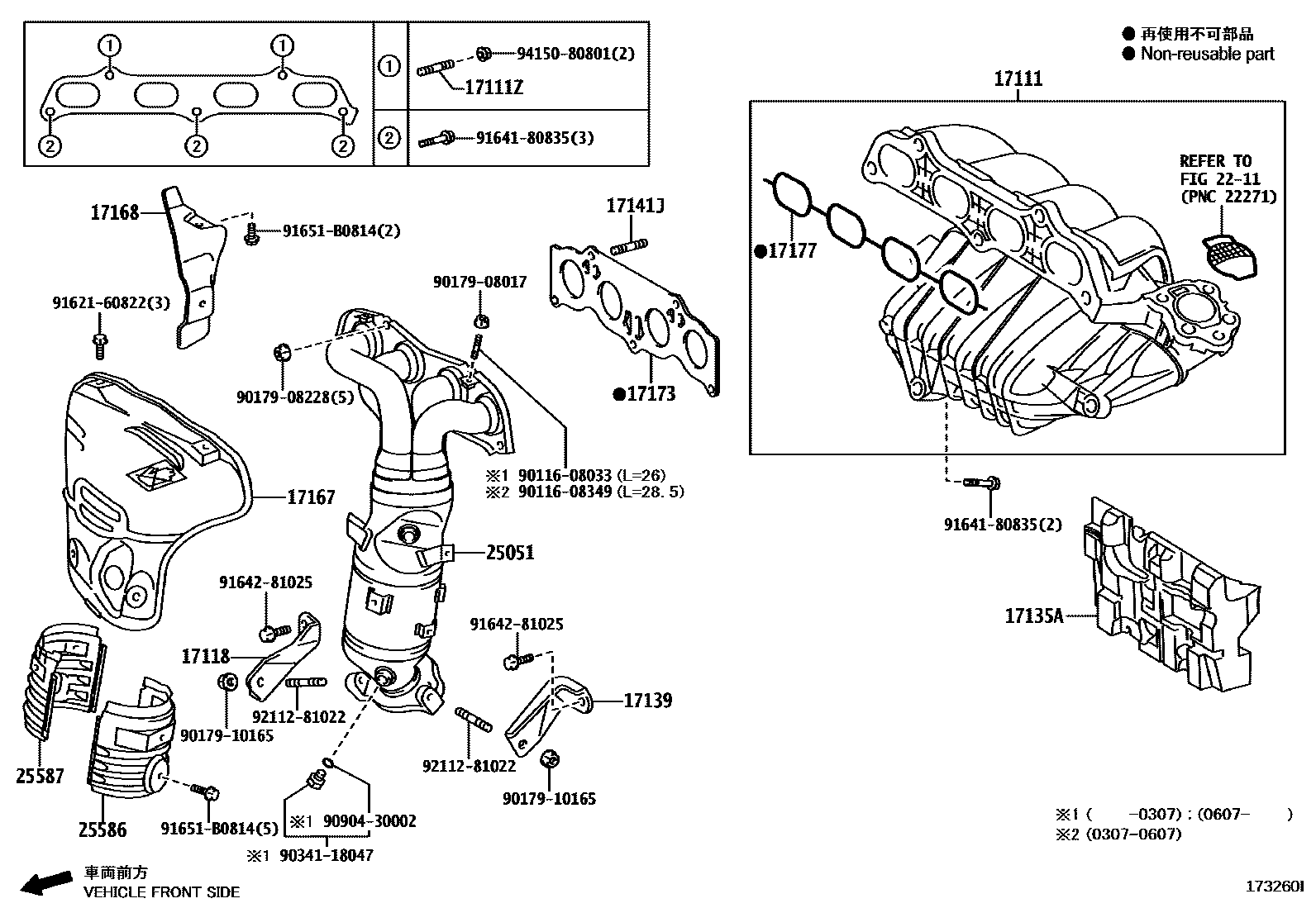

Parts diagram

17111MANIFOLD, INTAKE

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

17118STAY, MANIFOLD

17135AINSULATOR, INTAKE MANIFOLD, NO.1

17139STAY, MANIFOLD, NO.2

17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

17173GASKET, EXHAUST MANIFOLD TO HEAD

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

25586INSULATOR, MANIFOLD CONVERTER, NO.1

25587INSULATOR, MANIFOLD CONVERTER, NO.2

9011608033

9011608349

9017908017

9017908228

9017910165

9034118047

9090430002

9162160822

9164180835

9164281025

91651B0814

9211281022

9415080801

27 parts on this diagram · 4 diagrams in section

MANIFOLD for Toyota ALPHARD G/V 713

This section contains 89 genuine Toyota parts for the MANIFOLD system of the Toyota ALPHARD G/V 713. Key components include: CYLINDER HEAD, RADIATOR & WATER OUTLET, EXHAUST PIPE, VACUUM PIPING, MANIFOLD SUB-ASSY, EXHAUST, LH.
