Toyota ALPHARD G/V 713 — FUEL INJECTION SYSTEM

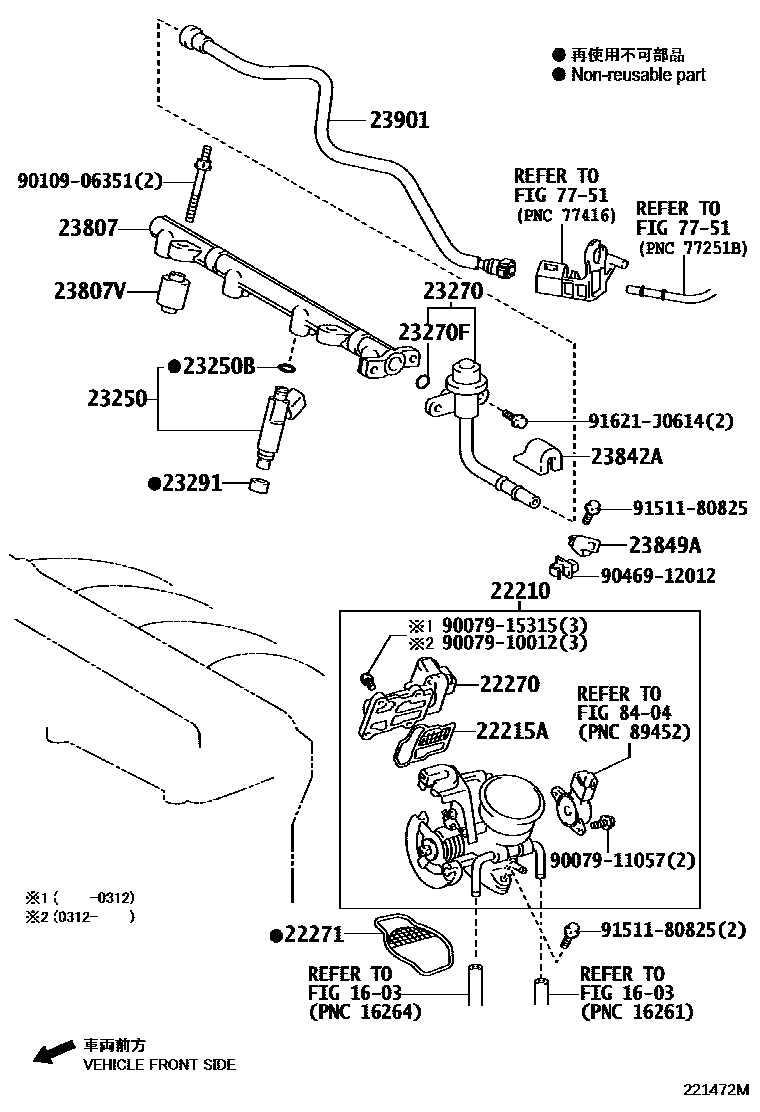

Parts diagram
1603RADIATOR & WATER OUTLET
→ Go to FIG 16-03
22210BODY ASSY, THROTTLE
16267-20020
16264-20020
22030-20060
22210-28070
22210-28100
90916-03104
22210-20140
22210-20210
96135-51300
96137-41501
22215AGASKET, IDLE SPEED CONTROL VALVE
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-28010
22270-28020
22270-20050
22270-0A070
22271GASKET, THROTTLE BODY
22271-28020
22271-20020
23250INJECTOR ASSY, FUEL
90480-13005
23209-28020
23209-20020
90301-07024
23209-20030
90301-07037
23209-28080
23250BRING, O(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270-62010
23270-62011
23270-28020
23270-28021
90301-07037
23270FRING, O(FOR PULSATION DAMPER)
23291INSULATOR, INJECTOR VIBRATION
23291-41010
23291-20010
23807PIPE SUB-ASSY, FUEL DELIVERY
23814-28020
23814-20020
90561-08020
23814-20021
23814-28031
90561-08053
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23849ASUPPORT, FUEL PIPE
23901TUBE SUB-ASSY, FUEL
23901-28010
23901-28011
23901-28190
7751FUEL TANK & TUBE
→ Go to FIG 77-51
8404ELECTRONIC FUEL INJECTION SYSTEM
→ Go to FIG 84-04
9007910012
90079-10012
9007911057
90079-11057
9007915315
90079-15315
9010906351
90109-06351
9046912012
90469-12012
9151180825
91511-80825
91621J0614
91621-J0614

24 parts on this diagram · 7 diagrams in section

FUEL INJECTION SYSTEM for Toyota ALPHARD G/V 713

This section contains 69 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota ALPHARD G/V 713. Key components include: RADIATOR & WATER OUTLET, MANIFOLD, VACUUM PIPING, VALVE ASSY, INTAKE AIR CONTROL, NO.1, BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR.
