Toyota ALPHARD G/V 713 — FRONT BUMPER & BUMPER STAY

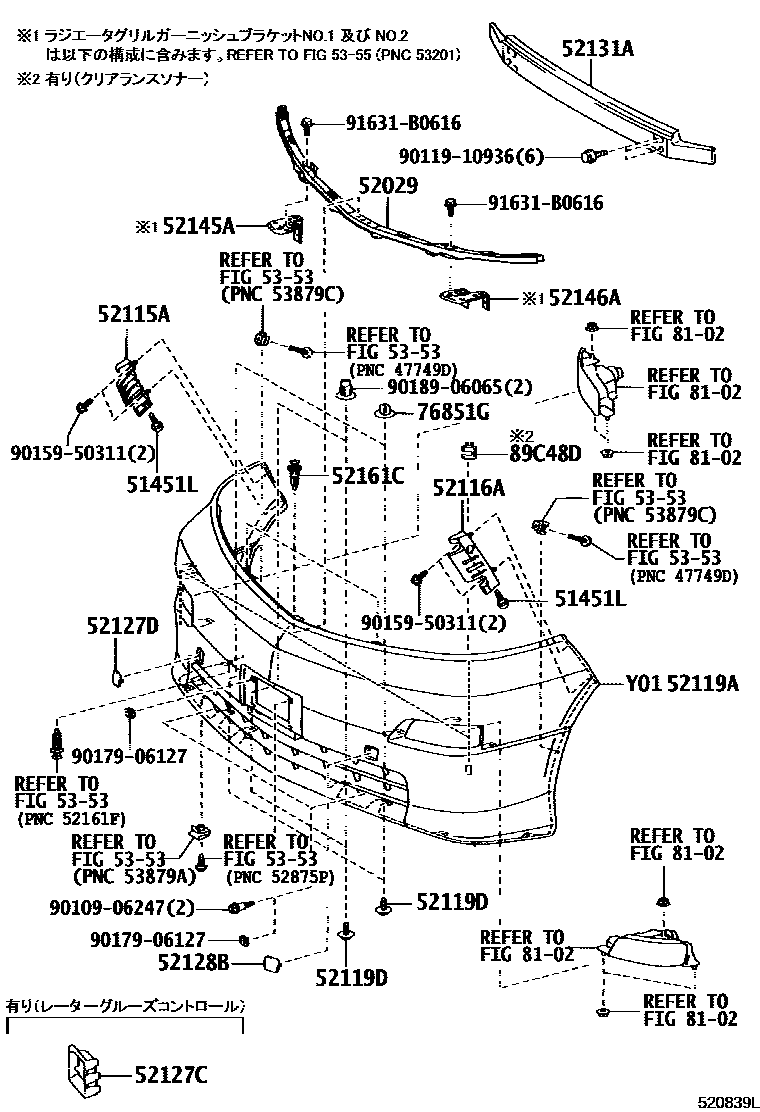

Parts diagram

51451LBOLT, NO.1

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

52115ASUPPORT, FRONT BUMPER SIDE, RH

52116ASUPPORT, FRONT BUMPER SIDE, LH

52119ACOVER, FRONT BUMPER

52119DSCREW, NO.1

52127CCOVER, FRONT BUMPER HOLE

52127DCOVER, FRONT BUMPER HOLE, RH

52128BCOVER, FRONT BUMPER HOLE, LH

52131AREINFORCEMENT, FRONT BUMPER

52145ASTAY, FRONT BUMPER, NO.2 RH

52146ASTAY, FRONT BUMPER, NO.2 LH

52161CPIECE, FRONT BUMPER

5353HOOD & FRONT FENDER

→ Go to FIG 53-53

76851GGROMMET, SCREW, NO.1

8102FOG LAMP

→ Go to FIG 81-02

89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER

9010906247

9011910936

9015950311

9017906127

9018906065

91631B0616

23 parts on this diagram · 4 diagrams in section

FRONT BUMPER & BUMPER STAY for Toyota ALPHARD G/V 713

This section contains 25 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota ALPHARD G/V 713. Key components include: BOLT, NO.1, REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER, SUPPORT, FRONT BUMPER SIDE, RH, SUPPORT, FRONT BUMPER SIDE, LH, COVER, FRONT BUMPER.
