Toyota ALPHARD G/V 713 — BRAKE BOOSTER & VACUUM TUBE

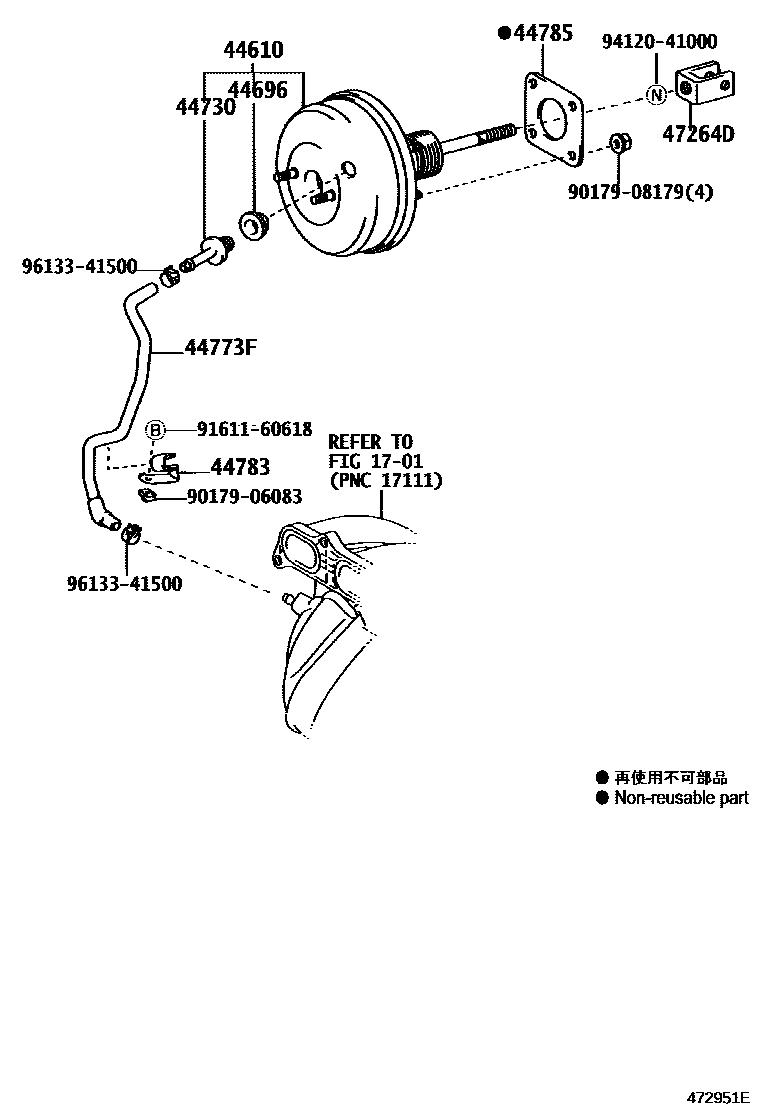

Parts diagram

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

44696GROMMET, CHECK VALVE

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44773FHOSE, UNION TO CHECK VALVE

44783CLAMP, VACUUM HOSE

44785GASKET, BRAKE BOOSTER

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

9017906083

9017908179

9161160618

9412041000

9613341500

13 parts on this diagram · 2 diagrams in section

BRAKE BOOSTER & VACUUM TUBE for Toyota ALPHARD G/V 713

This section contains 14 genuine Toyota parts for the BRAKE BOOSTER & VACUUM TUBE system of the Toyota ALPHARD G/V 713. Key components include: MANIFOLD, BOOSTER ASSY, BRAKE, GROMMET, CHECK VALVE, VALVE ASSY, VACUUM CHECK(FOR BRAKE), UNION, VACUUM HOSE(FOR MANIFOLD SIDE).
